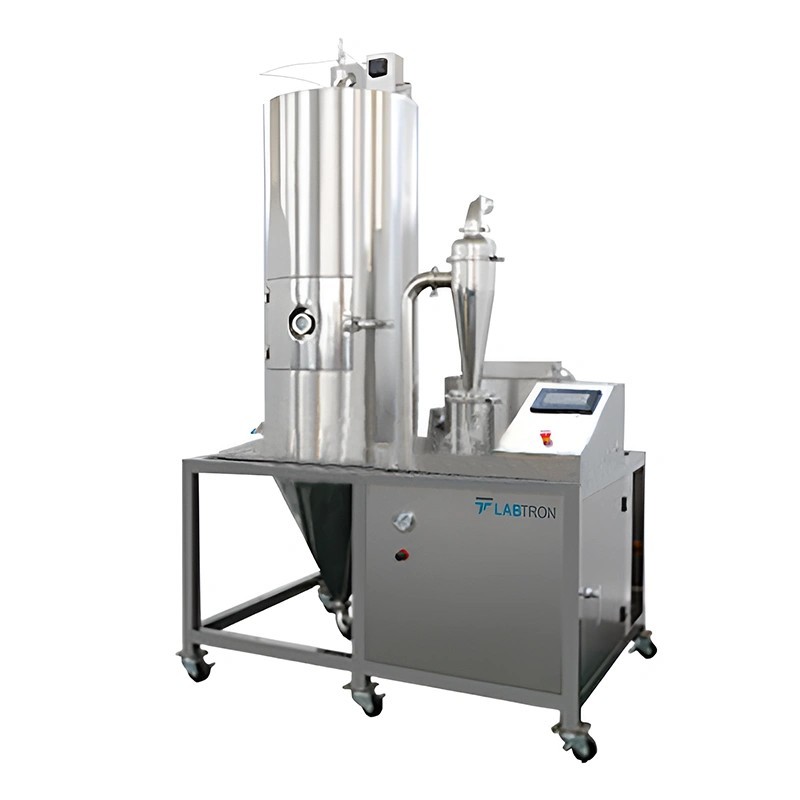

Labtron LPSD-A11 Pilot Spray Dryer
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 20 KW |
| Capacity | 10 L/H |
| Brand | Labtron |
| Power Supply | 380V | three-phase five-wire 50/60 Hz |
| Body Material | SUS-304 Stainless steel |
| Model | LPSD-A11 |
| Heater Power | 18000KW |
| Type of Product | Laboratory Spray Dryer |
| Maximum Air Inlet Temperature | 260 ℃ |
| Rated Airflow | 4 m³/min |
| Minimum Sample Volume | 200 ml |
| Compressed Air | 128 L/min |
| Net Dimension | 1650 × 1100 × 2730mm |
| Nozzle Jet | 3 mm standard |
| Nozzle Type | Two fluid nozzles |
| Possible Particle Size Range | 1 to 120 µm |
| Atomizer Material | SUS-316 Stainless steel |
| Maximum Sample Feed | 10000 ml/hr |
| Packaging Dimension (Air Compressor) | 1450 × 530 × 990mm |
| Packaging Dimension (Drying Chamber) | 2360 × 800 × 1030mm |
| Packaging Dimension (Main Frame) | 1800 × 1220 × 1410mm |
| Gross Weight (Air Compressor) | 187 Kg |
| Gross Weight (Drying Chamber) | 255 Kg |
| Gross Weight (Main Frame) | 349 Kg |
| Net Weight (Air Compressor) | 130 Kg |
| Net Weight (Drying Chamber) | 166 Kg |
| Net Weight (Main Frame) | 215 Kg |
Key Features
- Built-in air compressor
- Automatic/manual operation mode
- Automatic Deblocking
- SUS 316 Stainless steel Atomizer
Product Description
Pilot Spray Dryer LPSD-A11 has a capacity of 10L/h and can process 200ml of samples to minimize sample wastage. It features an 8-inch LCD screen showing heat, spray, pump, air pressure, and de-blocker frequency. It comes equipped with dual-fluid nozzles for precise, fine sprays. This dryer has a broad spectrum of particle sizes, making it suitable for various drying needs. Our pilot spray dryer can be upgraded to handle organic solvents using an inert loop system.
Applications:
Pilot Spray Dryers are used in various industries, including chemicals, food, new energy, medicine, ceramics, minerals, and metals, which may require extremely consistent, fine particle size.
