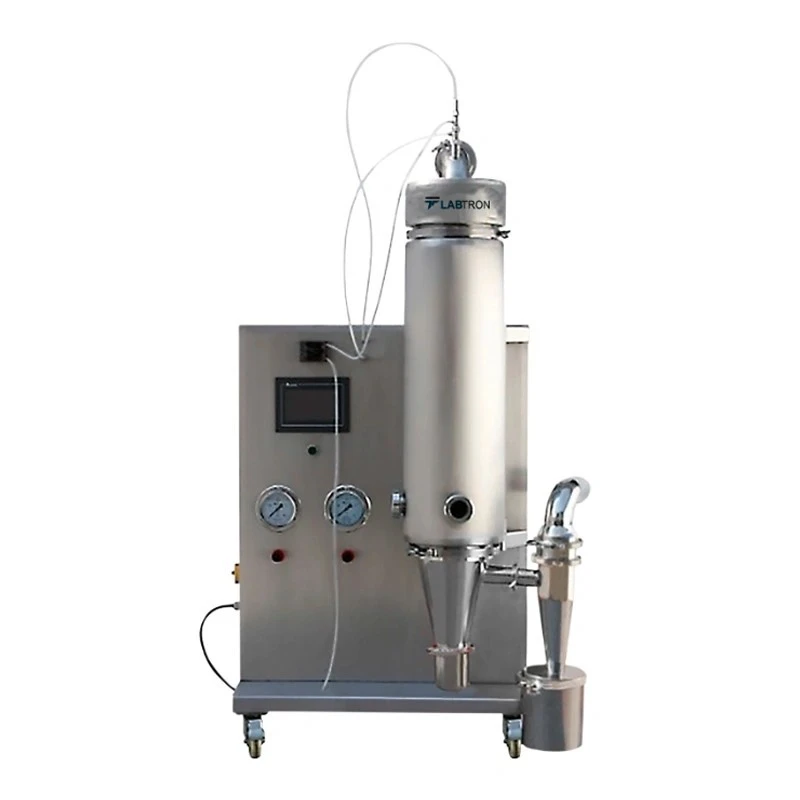

Labtron LLSD-A11 Lab Spray Dryer
Specifications
| Country of Origin | UK |
|---|---|
| Power Consumption | 5500W |
| Brand | Labtron |
| Power Supply | 220V | single-phase 50/60 Hz |
| Net Weight | 180 Kg +15Kg |
| Body Material | SUS-304 Stainless steel |
| Model | LLSD-A11 |
| Gross Weight | 291 Kg |
| Heater Power | 5000W |
| Type of Product | Laboratory Spray Dryer |
| Rated Airflow | 2m³/min |
| Minimum Sample Volume | 100 ml |
| Maximum Inlet Temperature | 280 ℃ |
| Compressed Air | 32L/min / 0.5 to 2 bars |
| Packaging Dimension | 1160 × 1120 × 2000mm |
| Net Dimension | 1050 × 1000 × 1770mm |
| Nozzle Jet | 1.5mm standard/ (0.5/0.8/1.0/2.0mm available) |
| Nozzle Type | Two fluid nozzles |
| Possible Particle Size Range | 1 to 80 µm |
| Mean Residence Time | 1.0 to 1.5 sec |
| Maximum Sample Feed | 3000 ml/hr |
Key Features
- Equipped with a built-in air compressor
- SUS 304 Stainless steel body
- Automatic/manual operation mode
- Optional Inert loop for organic solvents
- 7-Inch LCD
- Automatic Deblocking
Product Description
Lab Spray Dryer LLSD-A11 offers a feedstock of 3000 ml/h and requires only 100 ml of sample supply. It comes equipped with dual-fluid nozzles for precise, fine sprays. By integrating an inert loop system, it can be converted into an organic solvent spray dryer. The dryer body is made from SUS-304 stainless steel for durability and hygiene in harsh environments. Our lab spray dryer is suitable for spray drying sugary materials and prevents wall sticking.
Applications:
Lab Spray Dryers are used in various industries, including chemical, food, new energy, medicine, ceramics, and textiles, which may require extremely consistent, fine particle size.
