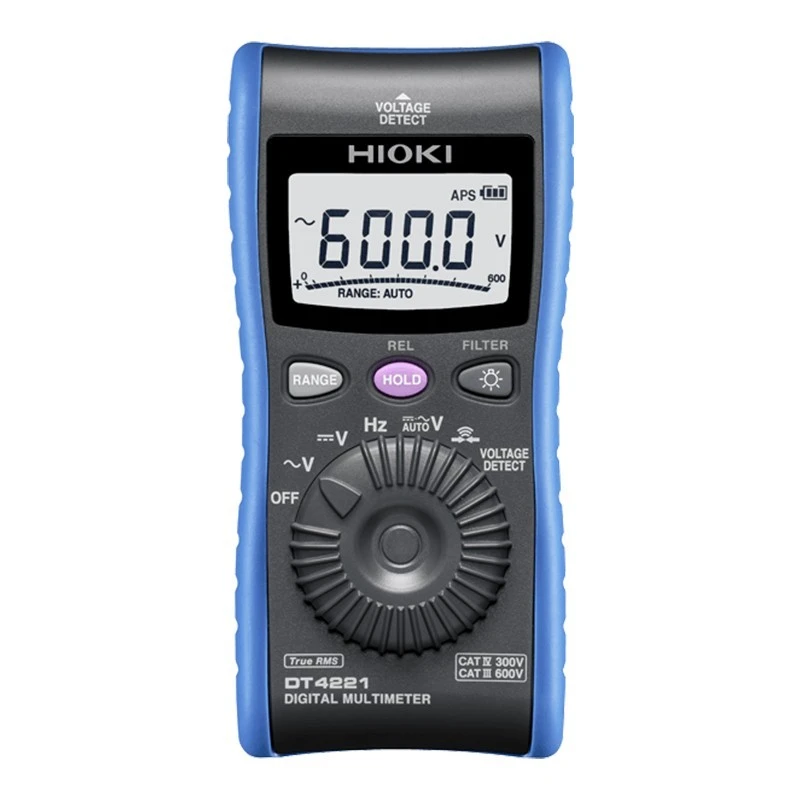

Hioki Digital Multimeter DT4221
Specifications
| Country of Origin | Japan |
|---|---|
| DC Voltage Range | 600.0 mV to 600.0 V / 4 ranges / ±0.5 % rdg. ±5 dgt. accuracy |
| AC Voltage Range | 6.000 V to 600.0 V / 3 ranges / 40 Hz - 1 kHz / ±1.0 % rdg. ±3 dgt. (True RMS / crest factor 3) |
| Display | Main & Sub LCD (4 digits / max. 6000) / bar graph |
| Frequency range | AC V measurement - 99.99 Hz (≥5 Hz) to 9.999 kHz / 3 ranges / ±0.1 % rdg. ±2 dgt. |
| Brand | HIOKI |
| Power Supply | 1× LR03 alkaline battery / 40h use (backlight OFF) |
| Dimensions | 72 × 149 × 38 mm |
| Model | DT4221 |
| Weight | 190 g |
| Voltage detection | 80 V to 600 V AC |
| Other functions | Filter function / display hold / relative value display / auto-power save |
| Continuity Check | ON - ≤25 Ω (buzzer sound) / OFF - ≥245 Ω / Response time - ≥0.5 ms |
| Refresh Rate | 5 times/s (Capacitance - 0.05-5 times/s / Frequency - 1-2 times/s) |
Key Features
- Compact and safety-designed for voltage measurement.
- Includes a voltage detection function.
- Lightweight and small form factor for easy use and portability.
- Operates on a single AAA alkaline battery.

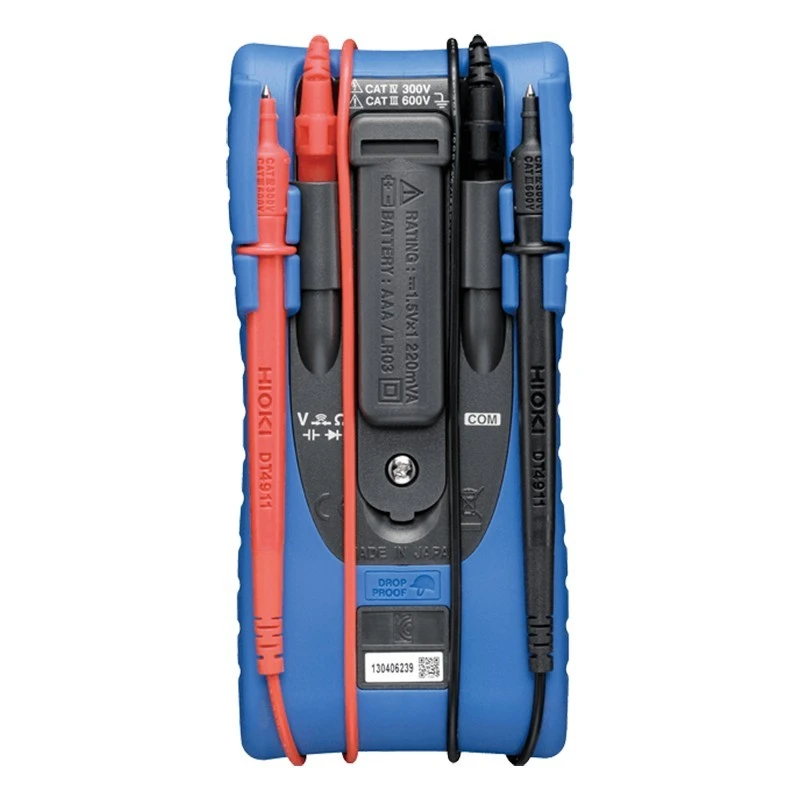

- Rear probe connections for improved screen visibility and easy storage.
- Low-pass filter for accurate inverter output voltage measurement.
- True RMS measurement for distorted current waveforms.
- Designed and manufactured in Japan with a 3-year warranty.
- Compliant with IEC 61010 safety standards.
Product Description
The Hioki DT4200 Digital Multimeter Series consists of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super-fast response rate and safety features that enhance electrical testing. The DT4221 is a pocket-sized digital multimeter designed specifically for electrical work requiring optimal safety, with ±0.5% DC V accuracy and a wide 40 Hz to 1 kHz AC V bandwidth.
Available on EnvMart, these Multimeters are designed for accurate measurement of voltage, current, and resistance in electrical circuits. Hioki Multimeters offer high precision and reliability, making them essential for electrical testing, diagnostics, and maintenance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DC voltage measurement range of this model is from 600.0 mV to 600.0 V, with an accuracy of ±0.5 % reading ±5 digits.
It can measure AC voltage from 6.000 V to 600.0 V across three ranges, with a frequency bandwidth of 40 Hz to 1 kHz and an accuracy of ±1.0 % reading ±3 digits.
This unit features a main and sub LCD display with 4 digits and a maximum reading of 6000, along with a bar graph for visual representation.
The voltage detection function operates within a range of 80 V to 600 V AC, allowing for quick identification of live circuits.
The dimensions of this model are 72 × 149 × 38 mm, and it weighs 190 g, making it compact and portable.
It operates on a single LR03 alkaline battery, providing approximately 40 hours of use with the backlight turned off.
This multimeter includes a filter function, display hold, relative value display, and an auto-power save feature.
The continuity check is ON for resistance values of ≤25 Ω (with a buzzer sound) and OFF for values of ≥245 Ω, with a response time of ≥0.5 ms.
The refresh rate for general measurements is 5 times per second, while capacitance measurements refresh at 0.05-5 times per second and frequency measurements at 1-2 times per second.
This model is compliant with IEC 61010 safety standards, ensuring it meets essential safety requirements for electrical testing.
The frequency range for AC voltage measurements is from 99.99 Hz (≥5 Hz) to 9.999 kHz, across three ranges with an accuracy of ±0.1 % reading ±2 digits.
The Hioki DT4221 is designed and manufactured in Japan, reflecting the brand's commitment to quality and precision.
