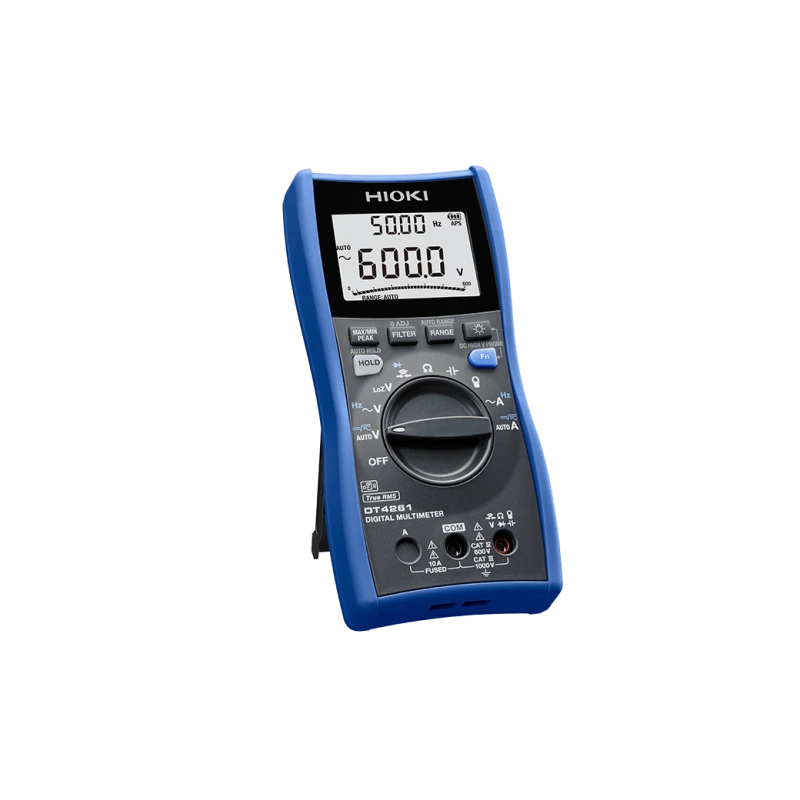

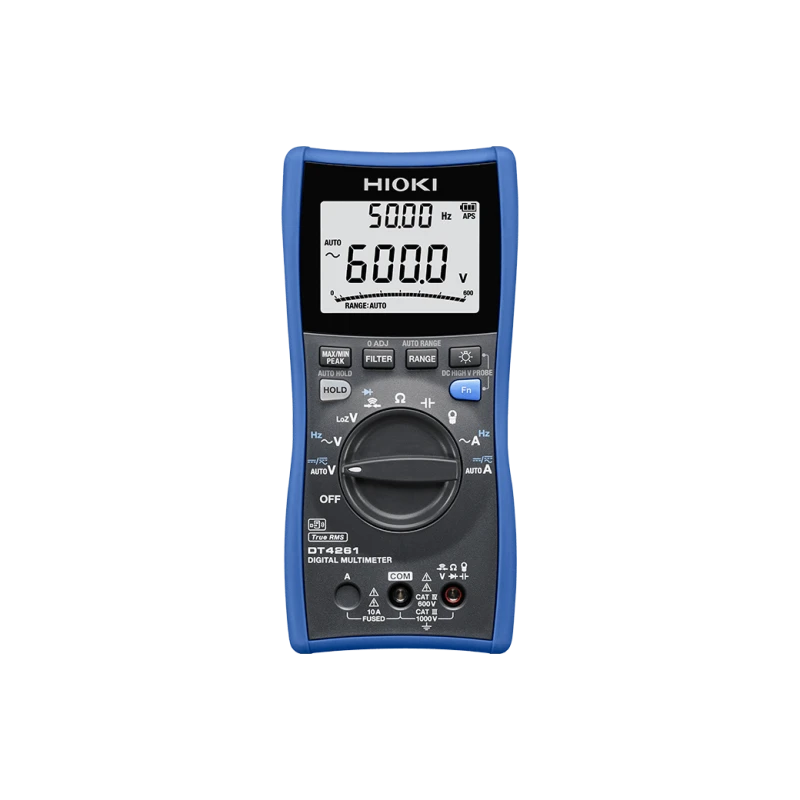

Hioki Digital Multimeter DT4261
Specifications
| Country of Origin | Japan |
|---|---|
| Display | 4-digit LCD / 6000 counts / bar graph |
| Diode Test | ≤2.0 V open voltage / ≤0.2 mA test current |
| Brand | HIOKI |
| Power Supply | 3× AA batteries / 130 hr. (without Z3210) / 70 hr. (with Z3210) |
| Dimensions | 87 × 185 × 47 mm |
| Model | DT4261 |
| Accessories | Test Lead L9300 / Manual / 3× AA batteries |
| Weight | 480 g (with accessories) |
| AC Voltage (V) | 6.000 V - 1000 V / 40 Hz - 1 kHz / ±0.9% rdg. ±3 dgt. (True RMS) |
| AC Current | 600.0 mA - 10.00 A / 40 Hz - 500 Hz / ±1.4% rdg. ±3 dgt. (True RMS) |
| Functions | Auto hold / MAX/MIN / PEAK / auto-power save / USB & wireless (optional) |
| Resistance | 600.0 Ω - 60.00 MΩ / ±0.7% rdg. ±3 dgt. |
| DC Voltage (V) | 600.0 mV - 1000 V / ±0.15% rdg. ±2 dgt. |
| Capacitance | 1.000 μF - 10.00 mF / ±1.9% rdg. ±5 dgt. |
| DC Current | 600.0 mA - 10.00 A / ±0.5% rdg. ±3 dgt. |
| Continuity | ≤25 Ω (ON) / ≥245 Ω (OFF) / Response time ≥0.5 ms |
| DC + AC Voltage (V) | 6.000 V - 1000 V / ±1.0% rdg. ±13 dgt. |
| LoZ Voltage (V) | 600.0 V / ±1.0% rdg. ±13 dgt. |
| Clamp AC Current | 10.00 A - 1000 A / ±0.9% rdg. ±3 dgt. |
| Frequency (Voltage/Current) | 99.99 Hz - 99.99 kHz / 99.99 Hz - 9.999 kHz / ±0.1% rdg. ±1 dgt. |
| Harmonics | Up to 30th order (with Z3210 / GENNECT Cross app) |
Key Features
- Helping personnel analyze issues in the field
- Boost work efficiency with digitalization (Excel® Direct Input Function)
- Ensuring safety by preventing erroneous test lead insertion (terminal shutters)
- Stop worrying about losing test lead caps
- Excellent dust and water resistance (compliant with the IP54 international standard)
Product Description
The Hioki's mid-range DMM, the DT4261, is an exceptional support tool with multifaceted functionality designed to help analyze a variety of issues and boost work efficiency.
Applications
- Why Voltage Inspections of High Voltage Photovoltaic Power Generation Facilities Need CAT III Measuring Instruments
- Testing for Protection Against Electrocution in Electric and Hybrid Vehicles
- Zero-voltage Measurement of Electric Vehicles
Available on EnvMart, these Multimeters are designed for accurate measurement of voltage, current, and resistance in electrical circuits. Hioki Multimeters offer high precision and reliability, making them essential for electrical testing, diagnostics, and maintenance applications.
