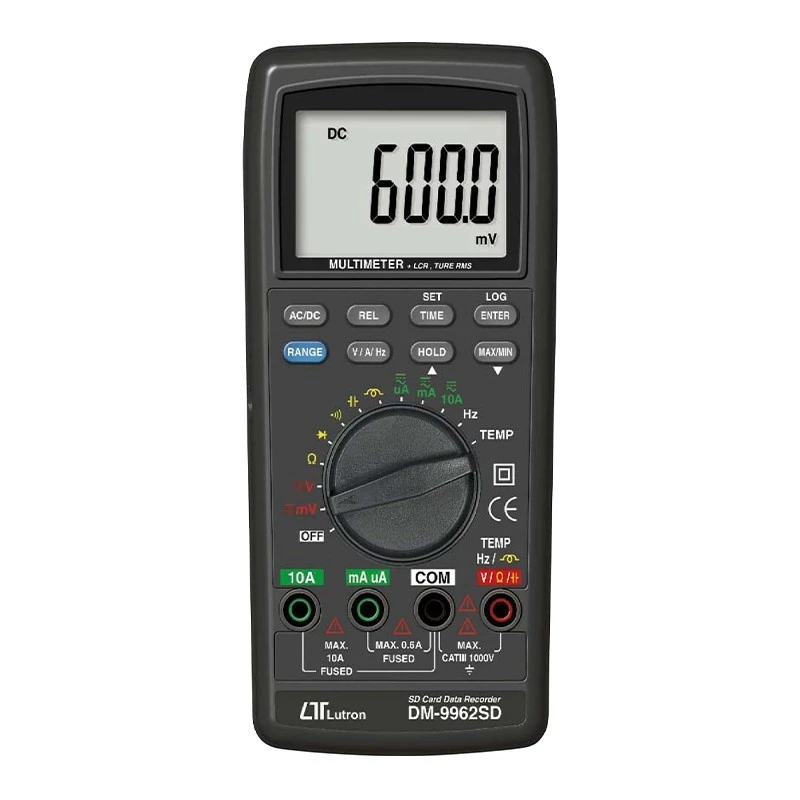

Lutron DM-9962SD Clamp Multimeter
Specifications
| Display | 60 mm x 39 mm LCD / 6000 counts |
|---|---|
| Brand | LUTRON |
| Power Supply | 9V battery or DC 9V adapter |
| Type | Multimeter + LCR |
| Dimensions | 190 x 88 x 40 mm |
| Temperature range | -100.0 ℃ to 1000 ℃ / -148 ℉ to 1832 ℉ |
| Model | DM-9962SD |
| Weight | 387 g |
| Resistance ranges | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ |
| Range Selection | Auto / Manual |
| Data logging | SD card (real-time) |
| Special Functions | Max/Min / Relative / Data Hold |
| Computer Interface | RS232 |
| SD Card Capacity | Up to 32 GB |
| Measurements | DCV / ACV / DCA / ACA / Resistance / Capacitance / Inductance / Frequency / Temperature / Diode / Continuity |
| True RMS | Yes |
| Safety Compliance | IEC 1010 CAT III 1000V |
| Frequency Ranges | 600 Hz / 6 KHz / 60 KHz / 600 KHz / 6 MHz / 20 MHz |
| Capacitance Ranges | 600 pF / 6 nF / 60 nF / 600 nF / 6 uF / 60 uF / 100 uF / 600 uF |
| Voltage Ranges (DC/AC) | 600.0 mV / 6 V / 60 V / 600 V / 1000 V |
| Current Ranges (DC/AC) | 600 uA / 6000 uA / 60 mA / 600 mA / 6 A / 10 A |
| Inductance Ranges | 600 uH / 6 mH / 60 mH / 600 mH / 6 H / 60 H / 100 H |
| Datalogging Sampling Time | 2 to 3600 seconds / Manual |
Key Features
- Leakage current measurement.
- AC/DC voltage measurement.
- AC current measurement.
- Resistance measurement.
- True RMS.
- Diode test.
- Continuity with audible signal.
- Automatic range switching.
- Data hold.
- Overload protection.
Product Description
The Lutron DM-9962SD is an SD card real-time data recording multimeter with LCR capabilities. It features a 6000-count true RMS display and can log data directly to a micro SD card, downloadable to Excel. It measures DC/AC voltage and current, resistance, capacitance, inductance, frequency, temperature, diode, and continuity. It complies with IEC 1010 CAT III 1000V safety standards. The device includes features like max/min recording, relative and data hold functions, auto/manual ranging, and built-in overload protection. It is powered by a 9V battery or an optional AC adapter.
Available on EnvMart, these Multimeters are equipped with advanced circuitry to accurately measure voltage, current, resistance, and more. Lutron Multimeters are trusted for their precision, durability, and multifunctional capabilities, making them essential tools for electricians, technicians, and engineers.
