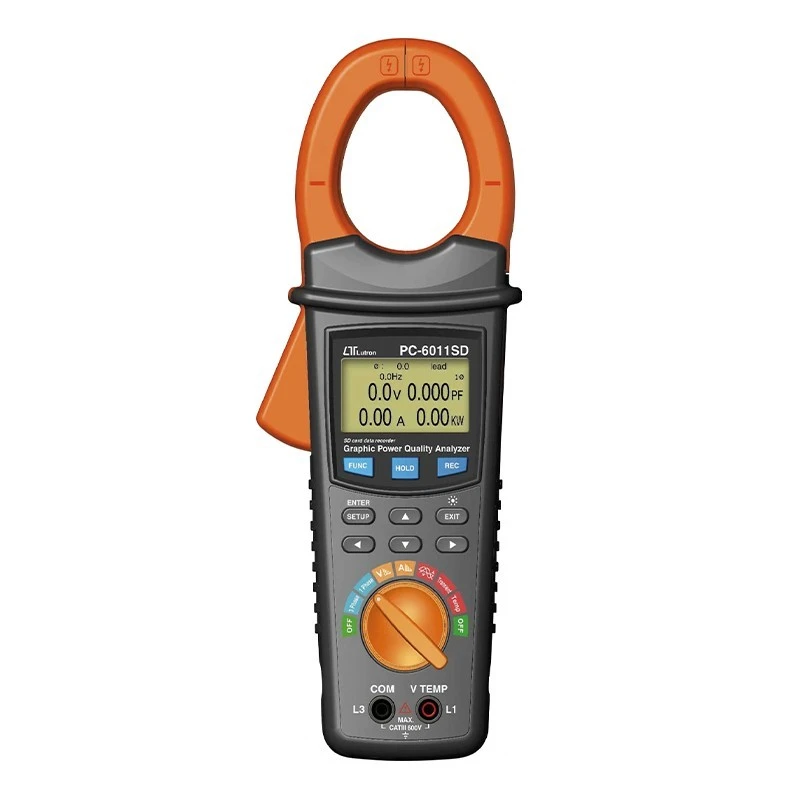

Lutron PC-6011SD Clamp Power Analyzer
Specifications
| Brand | LUTRON |
|---|---|
| Power Supply | 2 x AA batteries or DC 9V adapter |
| Type | Clamp Power Analyzer |
| Dimensions | 280 x 106 x 47 mm |
| Model | PC-6011SD |
| Safety Standard | IEC 1010 / CAT IV 600V |
| Power Factor | PF |
| Data output | USB / RS232 |
| Energy | KWh / KVAh / KVARh / PFh |
| Reactive power | KVAR / MVAR / GVAR |
| Data recording | SD memory card |
| Current measurement range | 5 to 2000 ACA |
| System Analysis | Single-phase / balanced three-phase |
| Transient Capture | Dip / Swell / Outage |
| PT Ratio | 1 to 1000 (programmable) |
| Voltage Measurement Range | 10 to 600 ACV (RMS) |
| True Power | KW / MW / GW |
| Apparent Power | KVA / MVA / GVA |
| Phase Angle | Φ |
| Clamp Jaw Size | 90 mm |
| Harmonic Analysis | 1-50th order (Voltage and Current) |
| THD Analysis | Voltage and Current |
| Thermocouple Temperature | Type K (-100.0 to 1300 ℃) |
| Waveform Display | Yes |
| LCD Picture Save | BMP file |
Key Features
- Single/three-phase power analysis.
- True RMS voltage and current.
- Harmonic and THD analysis.
- Transient event capture.
- Real-time SD card data logging.
- Computer data output (USB/RS232).
- Waveform display.
- Programmable PT ratio
Product Description
The Lutron PC-6011SD is an SD card real-time data recording clamp power analyzer designed for single-phase or balanced three-phase power systems. It measures True RMS values for voltage and current, with an ACV input impedance of 10 Mega ohms. It measures True Power, Apparent Power, Reactive Power, Power Factor, Phase Angle, and Energy. It features voltage and current harmonic analysis up to the 50th order, Total Harmonic Distortion (THD) analysis, and waveform display. It captures transient events, performs thermocouple temperature measurements, and has a programmable PT ratio. It complies with IEC 1010, CAT IV 600V safety standards. It includes real-time data recording with an SD memory card, computer data output, and can save LCD screen pictures as BMP files.
Available on EnvMart, these Power Analysers are designed with advanced technology to accurately measure and analyze electrical parameters such as voltage, current, power factor, and harmonics. Lutron Power Analysers are trusted for their precision and reliability, making them ideal for energy audits, load studies, and industrial power monitoring.
