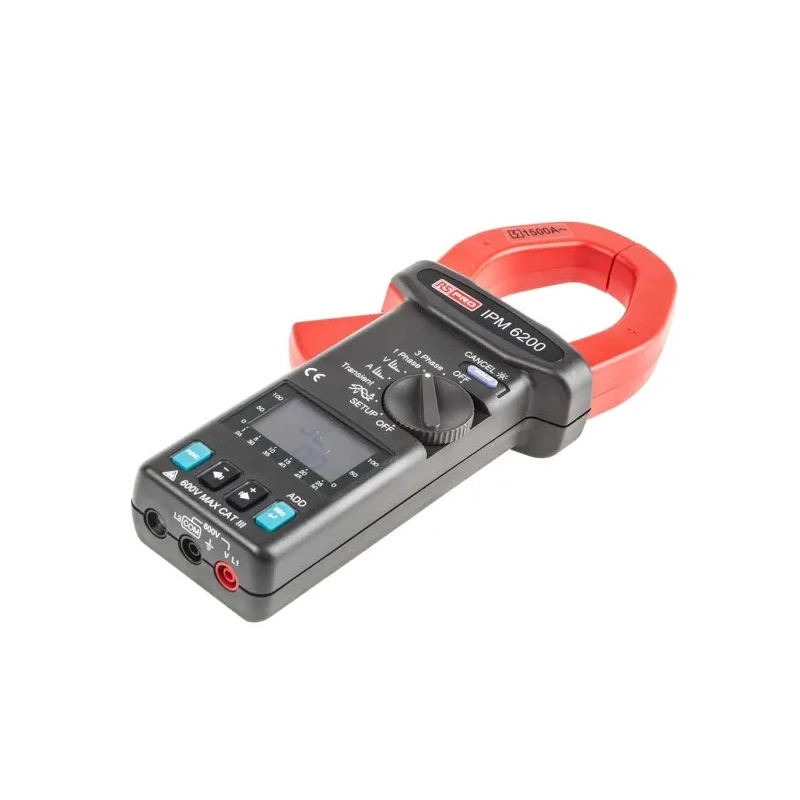

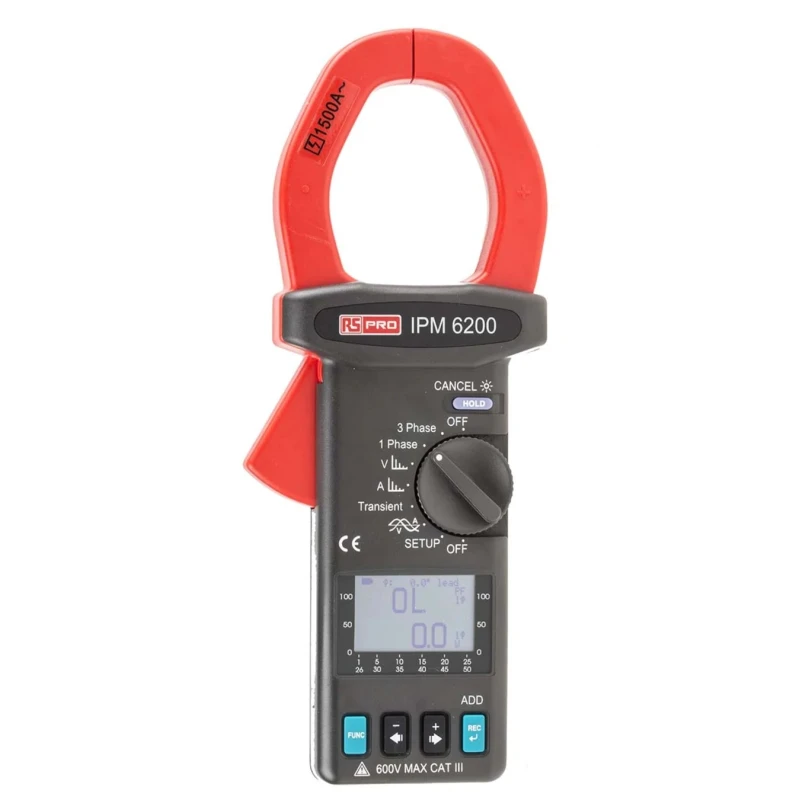

RS PRO 3-Phase Power Quality Analyser 1500 A Max 600V IPM6200
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery type | AA |
| Height | 210mm |
| Length | 62mm |
| Model | IPM6200 |
| Gross Weight | 640g |
| Width | 35.6mm |
| Maximum Operating Temperature | 50°C |
| MEASUREMENT TYPE | Current |
| Minimum Operating Temperature | -10°C |
| Current Accuracy | ±0.5 % rdg ±5 Digits |
| Memory size | 512kB |
| Number of Phases | 3 |
| Interface Type | RS232C |
| Standards/Approvals | RoHS |
| Maximum Frequency | 60MHz |
| Minimum Frequency | 46Hz |
| Maximum Voltage Measurement | 600V |
| Maximum Current Measurement | 1500A |
| Maximum Power Measurement | 9999kW |
Key Features
- Measures active, reactive, and apparent power for comprehensive power quality assessment.
- Features a 128 x 64 dot-matrix LCD with backlight for clear graphical display of voltage and current waveforms.
- Data logging capability supports up to 50,000 readings and 32,000 transient events with programmable intervals.
- Includes opto-isolated USB interface for safe PC connection and data analysis using supplied software.
- Programmable CT ratio from 1 to 3000 enables high power measurement flexibility.
- True RMS measurement with ±0.5% accuracy for voltage and ±1% for current ensures precise readings.
- Battery operated with AA alkaline batteries and auto power off function conserves energy.
- Operating temperature range from -10°C to 50°C suits various industrial environments.
Product Description
RS PRO IPM6200 Power Quality Analyser is a high-precision instrument designed for 3-phase electrical power quality measurement up to 1500 A and 600 V. It is ideal for diagnosing power disturbance issues and analyzing energy consumption in commercial, industrial, and data center settings.
The analyser features a 128 x 64 dot-matrix LCD with backlight, providing clear graphical displays of voltage and current waveforms and phase diagrams. It accurately measures active power (up to 9999 kW), reactive power (VAR, kVAR), apparent power (VA, kVA), power factor (PF), and phase angles. True RMS measurement ensures high accuracy for voltage and current readings essential for detailed power quality analysis.
With internal memory capable of logging 50,000 readings and 32,000 transient events, users can configure logging intervals from 1 second to 3000 seconds. The device supports programmable CT ratios from 1 to 3000 to accommodate a wide range of power levels. An opto-isolated USB interface and supplied PC software allow safe data transfer and comprehensive analysis on a computer.
Operable in temperatures from -10°C to 50°C, the IPM6200 is powered by two AA alkaline batteries and incorporates an auto power-off feature after 15 minutes of inactivity to conserve battery life. The compact footprint of 271mm x 112mm x 46mm and lightweight design of 647g (including batteries) makes it portable for field and site use.
Applications for this analyser include power electronics, commercial facilities, industrial manufacturing, power distribution monitoring, and data centres ensuring stable and efficient power systems.
Measures active, reactive, and apparent power accurately. Graphical LCD display with backlight enables clear waveform visualization. Large internal memory supports extensive data logging and transient event capture. Opto-isolated USB interface and software facilitate detailed analysis on PCs.
Programmable CT ratio enhances adaptability to various power circuits. True RMS measurement delivers precise voltage and current readings. Battery-powered with energy-saving automatic shutoff. Operates across a wide temperature range suited for industrial environments.
Compact and lightweight design for portable use. Explore the Power Analysers category at EnvMart for a wide range of reliable instruments tailored to industrial and commercial power monitoring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure up to 1500 A of current.
The maximum voltage measurement capacity is 600 V.
The current accuracy is ±0.5% of reading plus 5 digits.
It measures active power, reactive power, and apparent power.
It operates within a temperature range of -10°C to 50°C.
The internal memory size is 512 kB, allowing for extensive data logging.
It features a 128 x 64 dot-matrix LCD display with a backlight for clear visualization.
The dimensions are 271mm x 112mm x 46mm, and it weighs 647g including batteries.
It includes an opto-isolated USB interface for safe connection to a PC.
The maximum power measurement is 9999 kW.
It is powered by two AA alkaline batteries.
It complies with RoHS standards.
