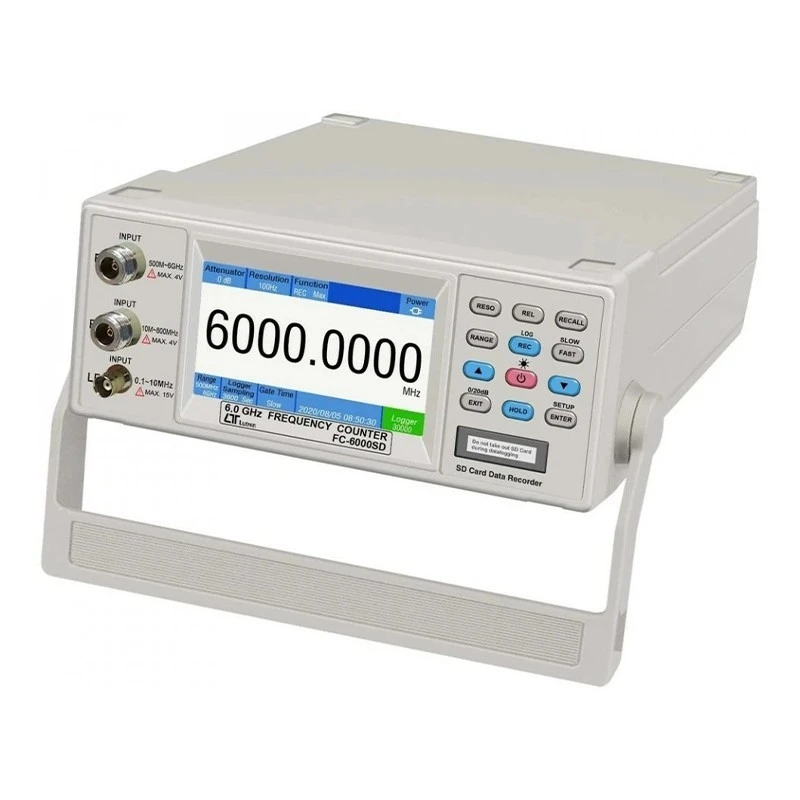

Lutron FC-6000SD Frequency Counter
Specifications
| Resolution | 0.1 Hz (10 MHz) |
|---|---|
| Measurement Range | 6.0 GHz (500-6000 MHz / 10-800 MHz / 10 Hz-10 MHz) / Period (10 Hz-10 MHz) |
| Display | 4.3" TFT LCD / 480 x 272 dots |
| Brand | LUTRON |
| Power Supply | 6 x 1.5V AA batteries or AC to DC 9V adapter |
| Type | Frequency Counter |
| Dimensions | 280 x 210 x 90 mm |
| Model | FC-6000 |
| SENSITIVITY | 10 MHz - 30 mV rms / 800 MHz - 50 mV rms / 6.0 GHz - 50 mV rms |
| Weight | 1200 g |
| Data output | RS232 / USB |
| Time Base | TCXO (Temperature Compensated Crystal Oscillator) / 1.5 PPM (10-30 ℃) |
| Datalogger | Micro SD card / 1 GB to 16 GB |
Key Features
- 6.0 GHz frequency measurement range.
- TCXO time base for high stability.
- Micro SD card datalogging.
- 4.3" TFT LCD display.
- High sensitivity for VHF/UHF.
- RS232/USB computer interface.
Product Description
The Lutron FC-6000 is a bench-type frequency counter with a 6.0 GHz measuring range and micro SD card datalogging capabilities. It features a TCXO time base for high stability and accuracy, and high sensitivity for VHF and UHF frequency measurements. It offers various functions including Frequency, Period, Multi resolution, Data hold, Relative measurement, and Data record (Max., Min., Average). The device has a 4.3" TFT LCD display and 0.1 Hz resolution for 10 MHz. It supports data output via RS232 or USB, and is powered by batteries or an AC to DC 9V adapter.
Available on EnvMart, these Power Analysers are designed with advanced technology to accurately measure and analyze electrical parameters such as voltage, current, power factor, and harmonics. Lutron Power Analysers are trusted for their precision and reliability, making them ideal for energy audits, load studies, and industrial power monitoring.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this model is 6.0 GHz, covering frequencies from 10 Hz to 6000 MHz.
It has a resolution of 0.1 Hz for frequencies up to 10 MHz.
This unit features a 4.3" TFT LCD display with a resolution of 480 x 272 dots.
It utilizes a TCXO (Temperature Compensated Crystal Oscillator) time base for high stability and accuracy.
The device can be powered by 6 x 1.5V AA batteries or an AC to DC 9V adapter.
The sensitivity is 30 mV rms at 10 MHz, 50 mV rms at 800 MHz, and 50 mV rms at 6.0 GHz.
Yes, it supports micro SD card data logging with capacities ranging from 1 GB to 16 GB.
This model weighs 1200 g.
The dimensions of this unit are 280 x 210 x 90 mm.
It provides data output via USB.
It is suitable for applications requiring accurate frequency measurement, such as in VHF/UHF frequency analysis.
