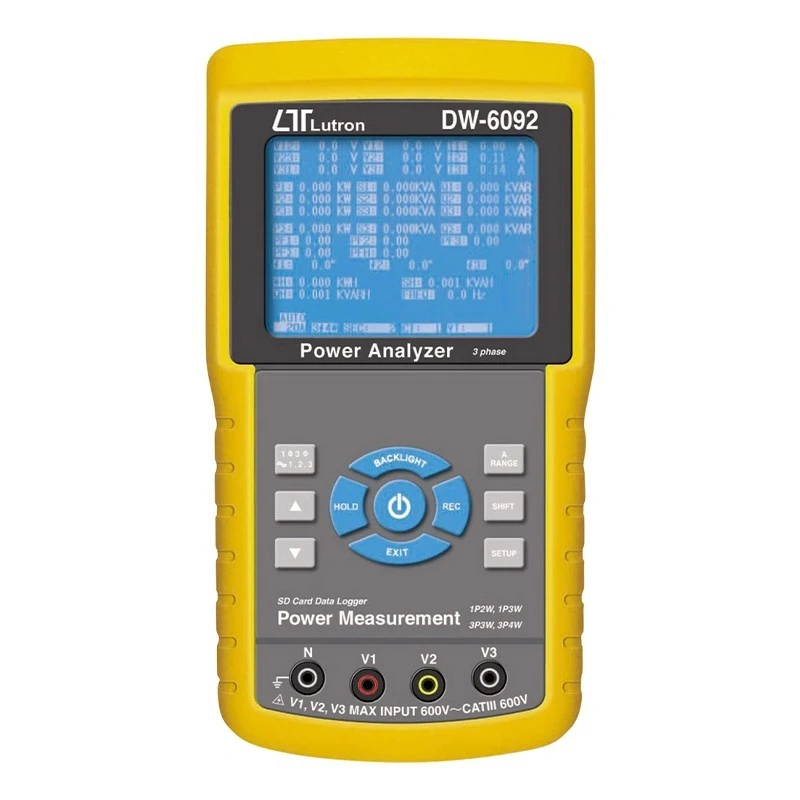

Lutron DW-6092 Wattmeter Analyzer
Specifications
| Brand | LUTRON |
|---|---|
| Power Supply | 8 x AA batteries or DC 9V adapter |
| Type | 3 Phase Power Analyzer |
| Model | DW-6092 |
| Safety Standard | IEC 1010 / CAT III 600V |
| Power Factor | PF |
| Data output | USB / RS232 |
| Reactive power | KVAR / MVAR / GVAR |
| Dimensions (meter) | 225 X 125 X 64 mm |
| Data recording | SD card |
| Current measurement range | 0.2 to 1200 ACA |
| Weight (Meter) | 1049g |
| System Analysis | 1P/2W / 1P/3W / 3P/3W / 3P/4W |
| CT Ratio | 1 to 600 (programmable) |
| PT Ratio | 1 to 1000 (programmable) |
| ACV Input Impedance | 10 Mega ohms |
| Voltage Measurement Range | 10 to 600 ACV |
| True Power | KW / MW / GW |
| Apparent Power | KVA / MVA / GVA |
| Watt-Hour | WH / SH / QH / PFH |
| Phase Angle | Φ |
| Clamp Jaw Size | 50 mm |
| Weight (Clamp) | 522g |
| Dimensions (Clamp) | 210 X 64 X 33mm |
Key Features
- 3-phase multi-power system analysis.
- True RMS voltage and current measurement.
- Real-time data logging to SD card.
- Measures True Power, Apparent Power, Reactive Power, and Watt-Hour.
- Computer data output (USB/RS232).
- Programmable CT and PT ratios.
- Weight (Meter: 1049g, Clamp: 522g)
- Dimensions (Meter: 225 X 125 X 64 mm, Clamp: 210 X 64 X 33mm)
Product Description
The Lutron DW-6092 is an SD card real-time data logging 3-phase power analyzer. It analyzes 1P/2W, 1P/3W, 3P/3W, and 3P/4W multi-power systems. It measures True RMS values for voltage and current. It provides measurements for True Power (KW, MW, GW), Apparent Power (KVA, MVA, GVA), Reactive Power (KVAR, MVAR, GVAR), Watt-Hour (WH, SH, QH, PFH), Power Factor (PF), and Phase Angle (Φ). The voltage measurement range is 10 to 600 ACV, and the current measurement range is 0.2A to 1200 ACA. It features programmable CT and PT ratios, a high ACV input impedance, and complies with IEC 1010, CAT III 600V safety standards. It includes real-time data recording with an SD memory card, and computer data output via USB or RS232. It is powered by batteries or a DC 9V adapter.
Available on EnvMart, these Power Analysers are designed with advanced technology to accurately measure and analyze electrical parameters such as voltage, current, power factor, and harmonics. Lutron Power Analysers are trusted for their precision and reliability, making them ideal for energy audits, load studies, and industrial power monitoring.
