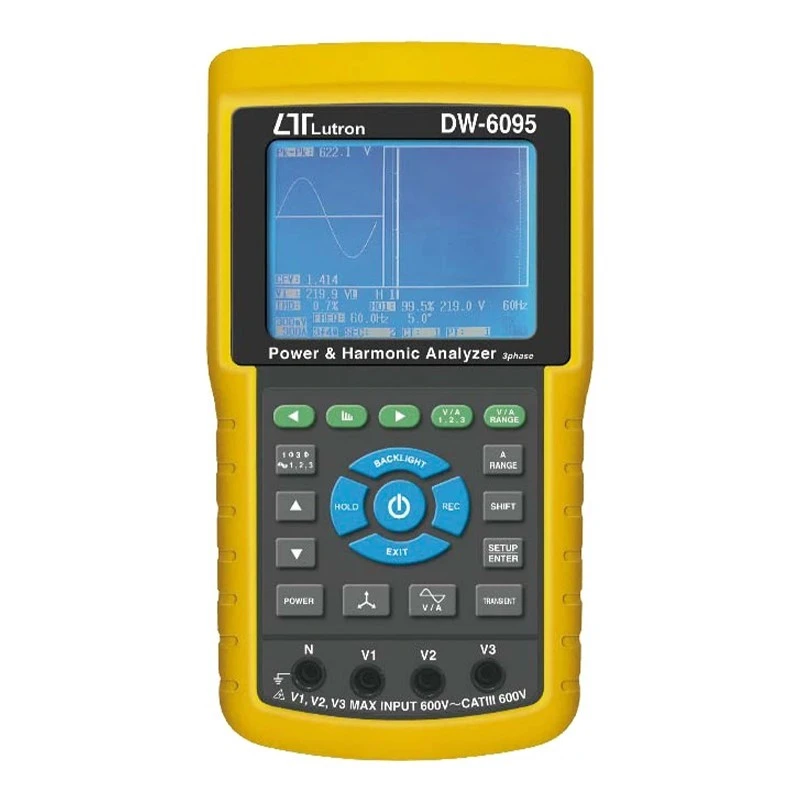

Lutron DW-6095 Wattmeter Analyzer
Specifications
| Display | Waveform / Peak Values / Graphic Phase Diagram |
|---|---|
| Brand | LUTRON |
| Power Supply | AA batteries or DC 9V adapter |
| Type | 3 Phase Power Analyzer with Harmonic Measurement |
| Model | DW-6095 |
| Safety Standard | IEC 1010 / CAT III 600V |
| Data output | Computer data |
| Data recording | SD memory card |
| Measurements | V (phase-to-phase) / V (phase-to-ground) / A (phase-to-ground) / KW / KVA / KVAR / PF / KWH / KVAH / KVARH / PFH / Phase angle / Harmonics (1-50th order) / THD |
| System Analysis | 1P/2W / 1P/3W / 3P/3W / 3P/4W |
| Current Probes | CP-1201 (included) |
| Input Signal (ACV) | 200mV / 300mV / 500mV / 1V / 2V / 3V |
| Ranges (ACA) | 20A / 200A / 2000A / 30A / 300A / 3000A |
| Calculations | Unbalanced Ratio / Unbalanced Factor / Neutral Line Current |
| Transient Capture | Dip / Swell / Outage |
| CT Ratio | 1 to 600 |
| PT Ratio | 1 to 1000 |
| ACV Input Impedance | 10 MΩ |
Key Features
- 3-phase power analysis and harmonic measurement.
- Adjustable current probe input signals and ranges.
- Measures various power parameters.
- Displays waveforms and harmonic distortion.
- Calculates unbalanced ratios and neutral line current.
- Captures transient events.
- Real-time data recording with SD card.
- Computer data output.
Product Description
The Lutron DW-6095 is a 3 Phase Power Analyzer with harmonic measurement. It analyzes 1P/2W, 1P/3W, 3P/3W, and 3P/4W systems. It includes 3 current probes (CP-1201) and allows for adjustable current probe input signals and ranges. It measures voltage (phase-to-phase and phase-to-ground), current (phase-to-ground), KW, KVA, KVAR, PF, KWH, KVAH, KVARH, PFH, phase angle, and harmonics (1-50th order). It displays waveforms, peak values, total harmonic distortion (THD), and a graphic phase diagram. It calculates unbalanced ratios and factors, neutral line current, and captures transient events. It has programmable CT and PT ratios, high ACV input impedance, and complies with IEC 1010, CAT III 600V safety standards. It features real-time data recording with an SD memory card and computer data output. It is powered by batteries or a DC 9V adapter.
Available on EnvMart, these Power Analysers are designed with advanced technology to accurately measure and analyze electrical parameters such as voltage, current, power factor, and harmonics. Lutron Power Analysers are trusted for their precision and reliability, making them ideal for energy audits, load studies, and industrial power monitoring.
