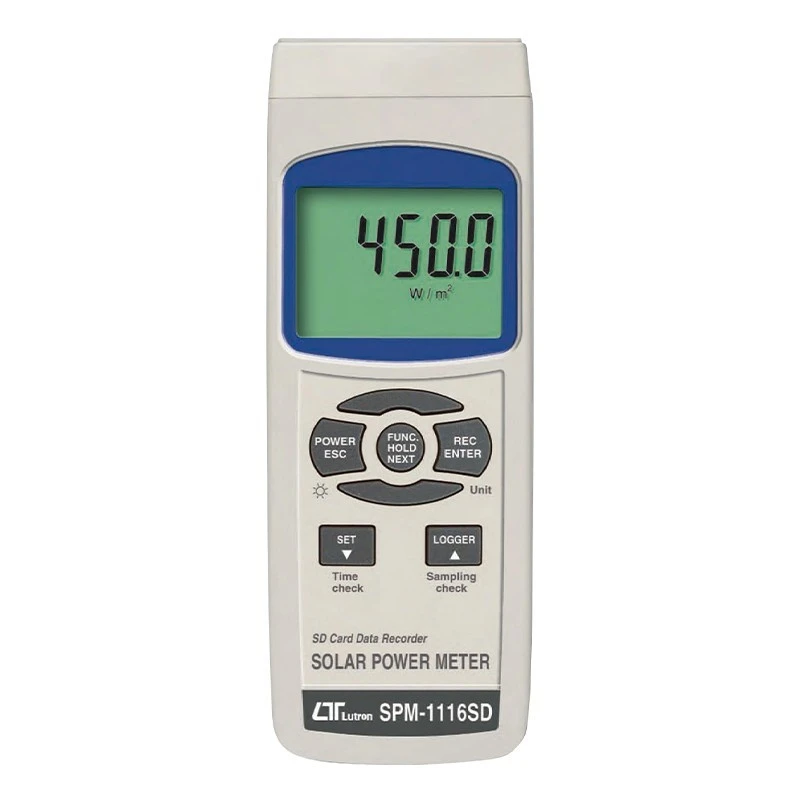

Lutron SPM-1116SD Exposure Meter
Specifications
| Operating Humidity | Less than 85% RH |
|---|---|
| Display | LCD / 52 mm x 38 mm / green backlight |
| Brand | LUTRON |
| Power Supply | 6 x AA batteries or 9V adapter (optional) |
| Operating Temperature | 0 to 50 ℃ |
| Model | SPM-1116SD |
| Weight | 346 g |
| Optional Accessories | SD card (1 GB or 2 GB) / AC to DC 9V adapter / USB cable (USB-01) / RS-232 cable (UPCB-02) / data acquisition software (SW-U801-WIN / SW-E802) |
| Spectral Response | 400 to 1100 nm |
| Functions | Solar power / Transmission (%) / Solar power integration |
| Data output | RS-232/USB PC computer interface |
| Memory Card | SD memory card / 1 GB to 16 GB |
| Measuring Units | W/m² / Btu/(ft²xh) / % / Wh/m² / Btu/(ft²) |
| Accessories Included | Instruction manual / Solar sensor / Hard carrying case (CA-06) |
| Dimensions (Main Instrument) | 182 x 73 x 47.5 mm |
| Datalogger Sampling Time | Auto - 1 to 3600 seconds / Manual |
| Dimensions (Sensor Probe) | 38 mm DIA. x 25 mm |
| Solar Power Range | 2000 W/m² / 634 Btu/(ft²xh) |
| Solar Power Resolution | 0.1 W/m² (Less than 1000 W/m²) / 1 W/m² (≥1000 W/m²) / 0.1 Btu/(ft²xh) (Less than 317 Btu/(ft²xh)) / 1 Btu/(ft²xh) (≥317 Btu/(ft²xh)) |
| Solar Power Accuracy | ±10 W/m² or ±3 Btu/(ft²xh) or ±5% reading (whichever is greater) / at 23 ± 5 ℃ |
| Angular Accuracy | Cosine corrected Less than 5% for angles Less than 60° |
Key Features
- Solar power, power integration, and transmission measurement
- SD card real-time data recording
- Wide spectral range
- Cosine corrected sensor
- RS-232/USB computer interface
Product Description
The Lutron SPM-1116SD is a solar power meter with SD card real-time data recording. It measures solar power, power integration, and transmission, and features a wide spectral range and excellent long-term stability.
Available on EnvMart, these Solar Meters are equipped with precision sensors to accurately measure solar power and irradiance levels. Lutron Solar Meters are trusted for their accuracy, durability, and ease of use, making them ideal for solar panel testing, site assessment, and environmental monitoring.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The solar power range of this model is from 0 to 2000 W/m² or 634 Btu/(ft²xh).
It features an RS-232/USB PC computer interface for data output.
The spectral response range is from 400 to 1100 nm.
The operating temperature range is from 0 to 50 ℃.
It has an LCD display measuring 52 mm x 38 mm with a green backlight.
Included accessories are an instruction manual, solar sensor, and a hard carrying case (CA-06).
The weight of the Lutron SPM-1116SD is 346 g.
The solar power accuracy is ±10 W/m² or ±3 Btu/(ft²xh) or ±5% of the reading, whichever is greater, at 23 ± 5 ℃.
It can be powered by 6 x AA batteries or a 9V adapter (optional).
The datalogger sampling time can be set from auto 1 to 3600 seconds or manual.
Optional accessories include an SD card (1 GB or 2 GB), AC to DC 9V adapter, USB cable (USB-01), RS-232 cable (UPCB-02), and data acquisition software (SW-U801-WIN / SW-E802).
It supports measuring units such as W/m², Btu/(ft²xh), %, Wh/m², and Btu/(ft²).
