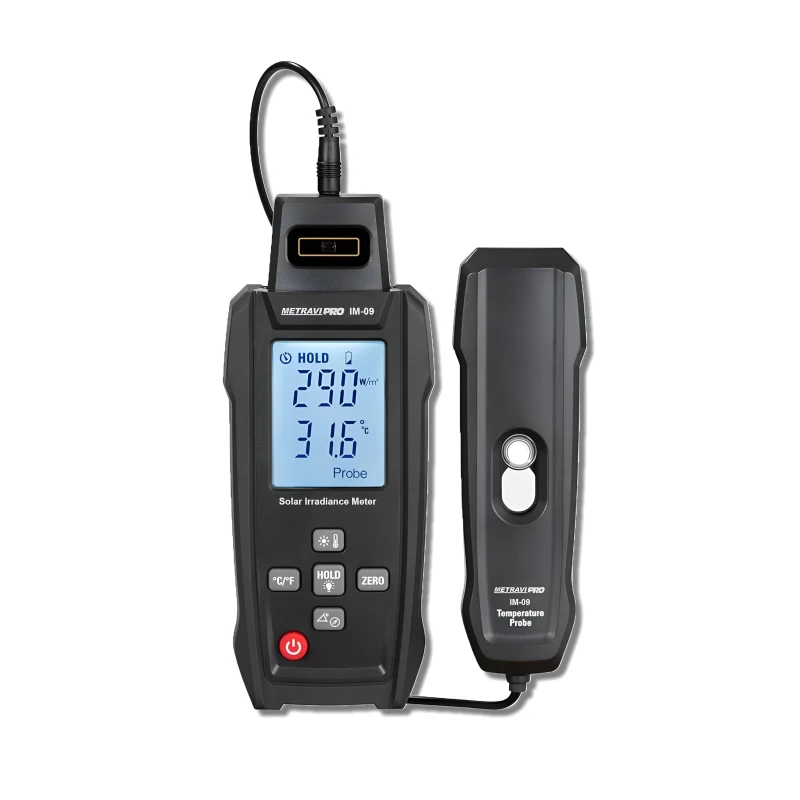

Metravi Solar Irradiance Meter PRO IM-09
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Metravi PRO IM-09 Solar Irradiance Meter |
| Temperature Accuracy | ±1°C(±2°F)@-10°C~75°C(14°F~167°F)/±2°C(±4°F)@-30°C~-10°C(-22°F~14°F)/±2°C(±4°F)@75°C~100°C(167°F~212°F) |
| Operating Humidity | ≤80%RH |
| Brand | Metravi |
| Power | 4×AA 1.5V alkaline batteries |
| Operating Temperature | Tester -10–50°C (14–122°F)/Probe -30–100°C (22–212°F) |
| Temperature Resolution | 0.1°C(0.2°F/1°F@Greater than 100°F) |
| Storage Temperature | 30–60°C (22–140°F) |
| Model | PRO IM-09 |
| Certification | IP54 dust & splash proof |
| Temperature Measuring Range | -30°C~100°C(-22°F~212°F) |
| Storage Humidity | ≤80%RH |
| Irradiance measuring range | 0–1400W/m2 |
| Irradiance Resolution | 1W/m2 |
| Irradiance Accuracy | ±(5%+5Digit) |
| Inclination Angle Measuring Range | -90°~+90° |
| Inclination Angle Resolution | 0.1° |
| Inclination Angle Accuracy | ±1.5°@-50°~+50°/±2.5°@-85°~-50°and+50°~+85°/±3.5°@-90°~-85°and+85°~+90° |
| Compass Measuring Range | 0°~360° |
| Compass Resolution | 1° |
| Compass Accuracy | ±7° |
Key Features
- Simultaneous measurements and readings for
- Temperature & Irradiance.
- Both internal sensor & external probe sensor available.
- Selectable °C/°F units.
- Measure Tilt Angle.
- Measure Basic Direction.
- Big, backlit LCD display.
- Low Battery Indicator.
- Auto Power Off.
- Data Hold.
- Compass is user-calibratable.
Product Description
Metravi PRO IM-09 Solar Irradiance Meter is engineered for professional solar energy assessments, offering high-accuracy irradiance measurements for PV system installation and performance analysis. It features a cosine-corrected sensor for precise readings across sunlight angles, ensuring accurate evaluation of solar panel exposure. The IM-09 supports real-time monitoring, max/min/hold functions, and data logging capabilities. Built for reliability in outdoor use, it assists engineers, researchers, and technicians in analyzing sunlight availability and optimizing solar system efficiency with unmatched accuracy and consistency.
Available on EnvMart, these Solar Meters are designed for accurately measuring solar radiation and light intensity. Metravi Solar Meters offer precision and reliability, making them ideal for solar panel testing, environmental monitoring, and energy efficiency applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The irradiance measuring range is 0–1400W/m².
The temperature measuring range is -30°C to 100°C (-22°F to 212°F).
The temperature accuracy is ±1°C (±2°F) from -10°C to 75°C, and varies outside this range.
The irradiance resolution is 1W/m².
It requires 4×AA 1.5V alkaline batteries.
The tester operates between -10°C to 50°C (14°F to 122°F), while the probe operates from -30°C to 100°C (22°F to 212°F).
The compass measuring range is 0° to 360°.
The inclination angle measuring range is -90° to +90°.
It has an IP54 certification for dust and splash proofing.
The storage temperature range is 30°C to 60°C (22°F to 140°F).
It includes max/min/hold functions and data logging capabilities.
The operating humidity limit is ≤80% RH.
