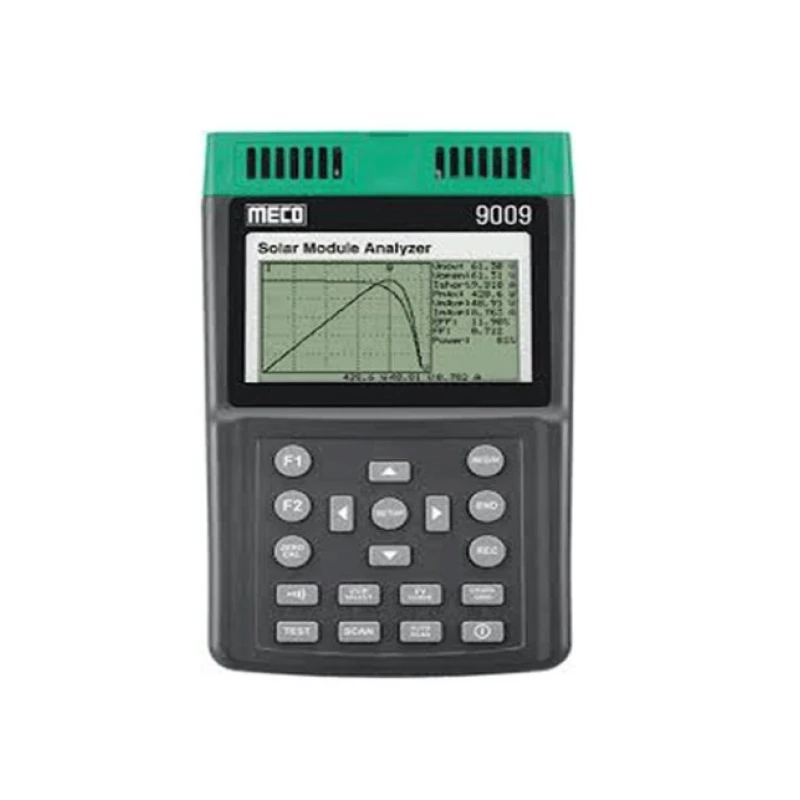

Meco Solar Module Analyzer 9009
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 1 mV /1 mA |
| Power Consumption | 500 W |
| Display Type | LCD with backlight |
| Brand | Meco |
| Battery type | Rechargeable Lithium Battery |
| Operating Temperature Range | 5 to 50°C |
| Model | 9009 |
| Weight | 1.16 kg |
| Battery Capacity | 3400 mAh |
| Storage temperature range | -20 to 60°C |
| Sampling Time | 0-99 min |
| Standards | EN 61326- 1-2006 |
| DC Current | 0.01-12 Amp |
| Data logging | 100 Records |
| Additional Details | Standard Light Source Setting- 10 W /m2 -1000 W /m2 |
| Battery Voltage | 60 V |
| DC Voltage | 0-60 V |
| AC Adapter | AC 110V or 220V input /DC 15V /3A output |
Key Features
- I-V Curve Test for Solar Panel / Module / Cell
- Max. Solar Panel / Module / Cell Power (Pmax) search by Auto-Scan : 60V, 12A (500W Capability)
- Best Resolution : 1mV, 1mA
- Manual Single Point I-V Test
- Max. Voltage (Vmaxp) at Pmax
- Max. Current (Imaxp) at Pmax
- Voltage at Open Circuit (Vopen)
- Current at Short Circuit (Ishort)
- I-V Curve with Cursor to Display each Data Point
- Efficiency (%) Calculation of Solar Panel
- Solar Panel Area Setting : 0.001 m ~ 9999 m 2 2
- Standard Light Source Setting : 10 W/m ~ 1000 W/m 2 2
- Communicate with PC via USB Cable
- AC Adaptor and Rechargeable Lithium Battery
- Memory Size : 100 Records
- Sampling Time of Data Logging : 0 ~ 99 min.
- Large LCD with Backlight
Product Description
Meco 9009 is an advanced solar module analyzer capable of performing I-V curve analysis, measuring voltage, current, power, and energy output of photovoltaic modules. It enables testing of single modules or strings, identifying mismatch losses, shading issues, and degradation. Ideal for solar power plant installers and maintenance engineers, it ensures modules are performing at optimal efficiency. The device is portable, rugged, and equipped with storage and data transfer capabilities.
Package Contents:Rechargeable Lithium Battery x 1 Pcs / Instruction Manual x 1 Pc / Carrying Bag x 1 Pc / AC Adaptor x 1 Pc / Optical USB Cable x 1 Pc / Software CD x 1 Pc / Software Manual x 1 Pc / Kelvin Clips (12A max.) x 1 Set / 4 Wire to 2 Wire Connector (10A Max and 12Afor 1 Minute) x 1 Set
Available on EnvMart, these Solar Meters are designed to measure solar radiation and irradiance with high accuracy. Meco Solar Meters ensure reliable performance, precision, and durability for solar panel testing and photovoltaic applications.
