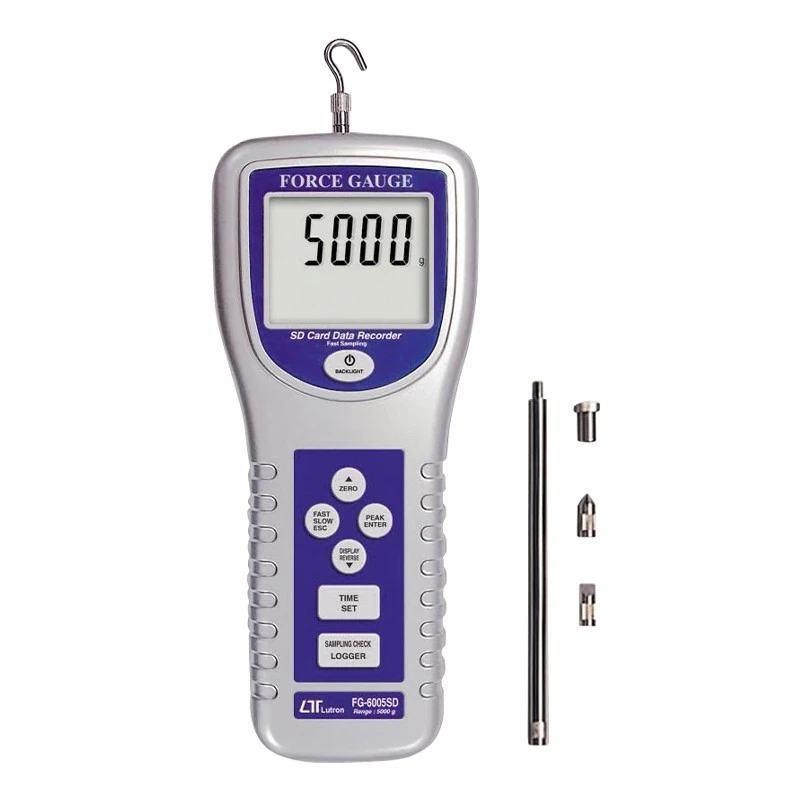

Lutron FG-6005SD Force Gauge
Specifications
| Resolution | 1 g / 0.02 oz / 0.01 Newton |
|---|---|
| Accuracy | ± (0.4% + 1 digit) / within 23 ± 5 ℃ |
| Operating Humidity | Less than 80% RH |
| Over Range Indicator | Displays "- - - -" |
| Display | LCD / 5 digits / 16 mm digit size / backlight |
| Capacity | 5 /000 g / 176.40 oz / 49.03 Newton |
| Brand | LUTRON |
| Power Supply | 6 x AA batteries or 9V adapter (optional) |
| Operating Temperature | 0 to 50 ℃ |
| Dimensions | 215 x 90 x 45 mm |
| Function | Tension & Compression / Normal force / Peak hold |
| Model | FG-6005SD |
| Weight | 650 g (with batteries) |
| Optional Accessories | SD card / test stand (FS-1001) / electrical test stand (FS-1002) / wedge grip (WG-01) / RS-232 cable (UPCB-02) / USB cable (USB-01) / data logging software (SW-U801-WIN) |
| Transducer | Exclusive load cell |
| Data output | RS-232/USB PC computer interface |
| Peak Hold | Freezes peak load value |
| Circuit | Exclusive microprocessor LSI-circuit |
| Accessories Included | Operating manual / Flat-head adapter / Hook adapter / Cone head adapter / Chisel head adapter / 120 mm extension rod / carrying case |
| Min. Display | 3 g / 0.10 oz / 0.03 Newton |
| Update Time | Fast - Approx. 0.2 second / Slow - Approx. 0.6 second |
| Overload Capacity | Max. 7 Kg |
| Full Scale Deflection | Approx. 2 mm max. |
| Zero/Tare Control | Max. full Capacity |
| Power Consumption (Normal) | Approx. DC 7 mA (w/o SD card / backlight off) |
| Power Consumption (SD Save) | Approx. DC 38 mA (backlight off) |
| Display Direction | Positive or Reverse (selectable) |
| Zero Button | Operates for normal force and peak hold |
| Unit Select | g / oz / Newton |
| Mounting Holes | Provided on back case |
Key Features
- 5000 g capacity
- SD card real-time recording
- 10 ms sampling time recorder
- Tension and compression measurement
- Multiple display units (g, oz, Newton)
- Peak hold function
- RS-232/USB computer interface
Product Description
The Lutron FG-6005SD is a 5,000 g force gauge with SD card real-time recording and a 10 ms sampling time recorder. It features tension and compression capabilities, multiple display units, and peak hold functionality. It's designed for various force measurement applications.
Available on EnvMart, these Force Gauges are engineered for precise measurement of tension and compression forces in various applications. Lutron Force Gauges are trusted for their accuracy, durability, and ease of use, making them ideal for quality control, research, and industrial testing.
