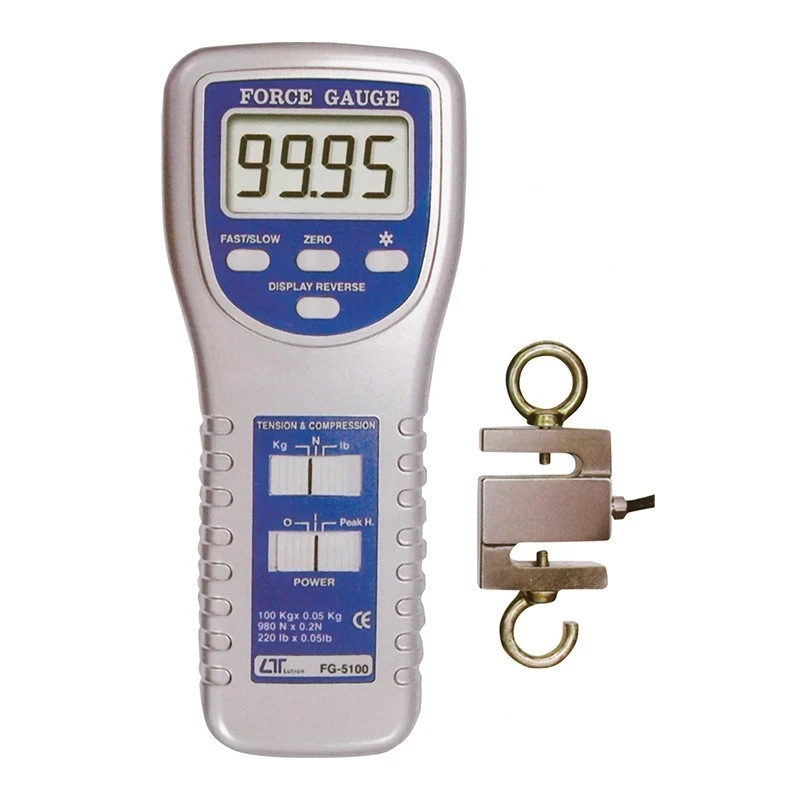

Lutron FG-5100 Force Gauge
Specifications
| Resolution | 0.05 Kg / 0.05 LB / 0.2 Newton |
|---|---|
| Accuracy | ± (0.5% + 2 digits) / within 23± 5 ℃ |
| Operating Humidity | Less than 80% RH |
| Power Consumption | Approx. DC 28 mA |
| Over Range Indicator | Displays "- - - -" |
| Display | LCD / 5 digits / 16 mm digit size / backlight |
| Capacity | 100 Kg / 220 LB / 980 Newton |
| Brand | LUTRON |
| Power Supply | 6 x AA batteries or 9V adapter (not included) |
| Operating Temperature | 0 to 50 ℃ |
| Function | Tension & Compression / Normal force / Peak hold |
| Model | FG-5100 |
| Cable Length | 2 meters |
| Sensor Type | S type load cell |
| Optional Accessories | RS-232 cable (UPCB-01) / USB cable (USB-01) / data logging software (SW-U801-WIN) |
| Data output | RS-232 serial computer interface |
| Peak Hold | Freezes peak load value |
| Circuit | Exclusive microprocessor LSI-circuit |
| Accessories Included | Operating manual / 100 Kg sensor with hooks and 2 meter cable / hard carrying case |
| Min. Display | 0.15 Kg / 0.35 lb / 1.4 Newton |
| Update Time | Fast - Approx. 0.2 second / Slow - Approx. 0.6 second |
| Overload Capacity | Max. 150 Kg |
| Full Scale Deflection | Less than 1 mm |
| Zero/Tare Control | Max. full Capacity |
| Display Direction | Positive or Reverse (selectable) |
| Zero Button | Operates for normal force and peak hold |
| Unit Select | Kg / lb / Newton |
| Mounting Holes | Provided on back case |
| Dimensions (Main Instrument) | 215 x 90 x 45 mm |
| Dimensions (Sensors) | 130 x 51 x 18 mm |
| Weight (Main Instrument) | 450 g |
| Weight (Sensors) | 380 g |
Key Features
- 100 Kg capacity
- RS232 computer interface
- Tension and compression measurement
- Multiple display units (Kg, LB, Newton)
- Peak hold function
Product Description
The Lutron FG-5100 is a 100 Kg force gauge with RS232 interface. It features tension and compression capabilities, multiple display units (Kg/LB/Newton), and peak hold functionality. It's designed for various force measurement applications.
Available on EnvMart, these Force Gauges are engineered for precise measurement of tension and compression forces in various applications. Lutron Force Gauges are trusted for their accuracy, durability, and ease of use, making them ideal for quality control, research, and industrial testing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum capacity of this force gauge is 100 Kg, which is equivalent to 220 LB or 980 Newton.
The resolution of the Lutron FG-5100 is 0.05 Kg, 0.05 LB, or 0.2 Newton.
The FG-5100 can be powered by 6 x AA batteries or a 9V adapter, which is not included with the product.
The accuracy of this force gauge is ± (0.5% + 2 digits) within an operating temperature of 23± 5 ℃.
The operating temperature range for this model is from 0 to 50 ℃.
This force gauge utilizes an S type load cell as its sensor type.
The weight of the main instrument of the FG-5100 is 450 g.
Yes, the FG-5100 features a peak hold function that freezes the peak load value during measurement.
The dimensions of the main instrument are 215 x 90 x 45 mm.
Included accessories are an operating manual, a 100 Kg sensor with hooks and a 2-meter cable, and a hard carrying case.
The update time for measurements is approximately 0.2 seconds for fast updates and 0.6 seconds for slow updates.
