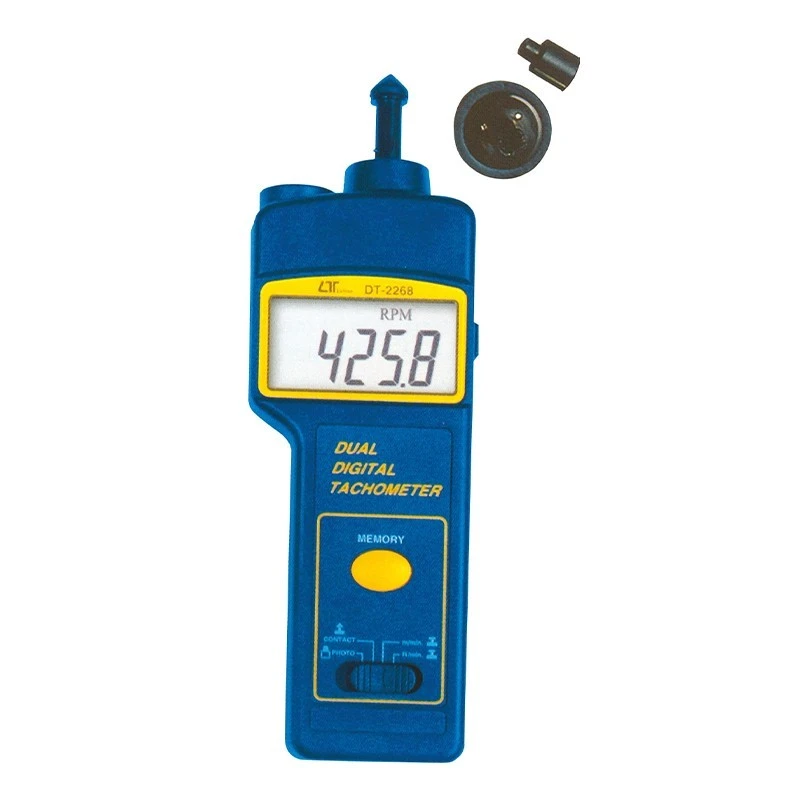

Lutron DT-2268 Tachometer

SKU ADDTV Category Tachometer Brand Lutron Condition New

Specifications

Accuracy ± (0.05% + 1 digit)
Operating Humidity Less than 80% RH
Display LCD / 60 mm x 30 mm / 5 digits
Brand LUTRON
Power Supply 4 x 1.5V AA (UM-3) batteries
Type Photo/Contact Tachometer
Operating Temperature 0 to 50 ℃
Dimensions 215 x 65 x 38 mm
Memory Last/Max./Min. value
Model DT-2268
Weight 240 g (0.52 LB)
Circuit Exclusive one-chip microcomputer LSI circuit
Photo Tachometer Range 5 to 99 /999 RPM
Contact Tachometer Range 0.5 to 19 /999 RPM
Surface Speed Range 0.05 to 1 /999.9 m/min
Photo Tachometer Resolution 0.1 RPM (Less than 1 /000 RPM) / 1 RPM (≥ 1 /000 RPM)
Surface Speed Resolution 0.01 m/min (Less than 100 m/min) / 0.1 m/min (≥ 100 m/min)
Time Base Quartz crystal
Power Consumption (Photo) Approx. DC 153 mA
Power Consumption (Contact) Approx. DC 10 mA
Accessories Included Carrying case / Reflecting tape marks (600 mm) / RPM adapter (CONE) / RPM adapter (FUNEL) / Surface speed test wheel / Operation manual
Laser Light Source Class 2 laser diode / Less than 1 mW / 645 nm wavelength
Photo Tachometer Detecting Distance 50 to 500 mm (typically)

Key Features

  • Photo tachometer
  • Contact tachometer
  • Measures RPM, m/min, ft/min
  • Wide measurement range
  • Large LCD display
  • Memory recall
  • Laser light beam

Product Description

The Lutron DT-2268 is a photo/contact tachometer designed for measuring RPM and surface speed. It combines photo and contact tachometer functions, offering a wide measurement range and high accuracy. It features a large LCD display, memory recall, and a laser light beam for photo tachometer measurements.

Available on EnvMart, these Tachometers are built with advanced sensing technology to deliver precise RPM measurements of rotating equipment. Lutron Tachometers are trusted for their accuracy, reliability, and user-friendly design, making them ideal for industrial maintenance, automotive diagnostics, and machinery monitoring.

Lutron DT-2268 Tachometer
Looking to purchase in bulk?
  • Purchase item in bulk quantity
  • Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The Lutron DT-2268 Tachometer has a photo tachometer range of 5 to 99,999 RPM and a contact tachometer range of 0.5 to 19,999 RPM. Additionally, it measures surface speed from 0.05 to 1,999.9 m/min.

The accuracy of the Lutron DT-2268 is ± (0.05% + 1 digit).

This model requires 4 x 1.5V AA (UM-3) batteries for power.

The dimensions of this tachometer are 215 x 65 x 38 mm, and it weighs 240 g (0.52 LB).

The operating temperature range for this model is from 0 to 50 ℃.

The tachometer features a large LCD display measuring 60 mm x 30 mm with a 5-digit readout.

The photo tachometer resolution is 0.1 RPM for measurements less than 1,000 RPM and 1 RPM for measurements of 1,000 RPM or greater.

The surface speed resolution is 0.01 m/min for speeds less than 100 m/min and 0.1 m/min for speeds of 100 m/min or greater.

The operating humidity for this model is less than 80% RH.

It measures surface speed using a contact method with a test wheel and can display values in m/min.

The tachometer uses a Class 2 laser diode with a power output of less than 1 mW and a wavelength of 645 nm.
