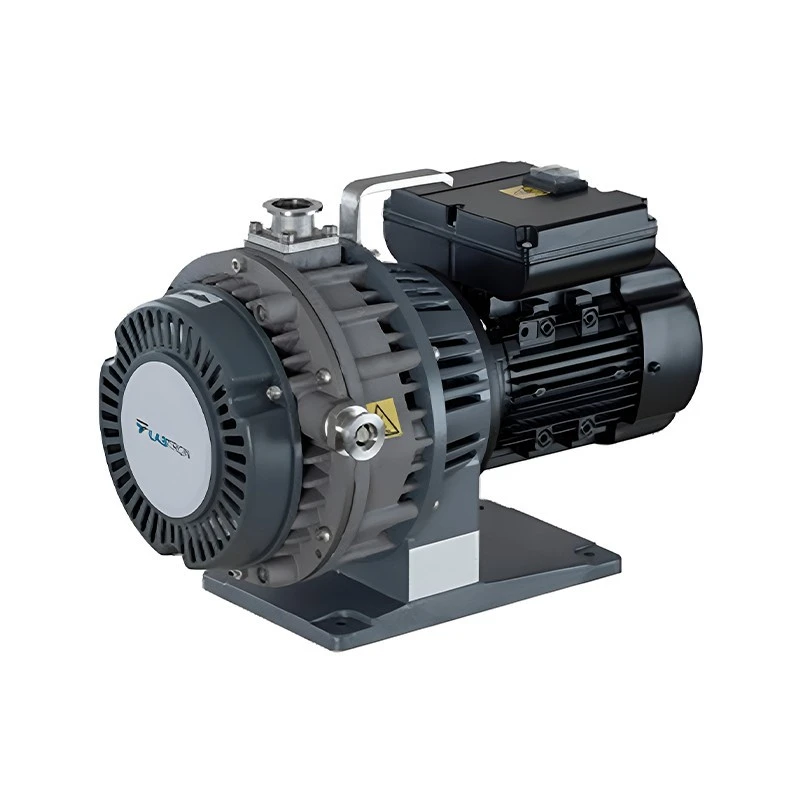

Scroll Vacuum Pump ESVP-A12
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Particle size | ≤ 19 micron |
| Model | LSVP-A12 |
| Noise Level | ≤ 60 dB |
| Type of Product | Lab Vacuum Pump |
| Cooling Type | Air cooled |
| Others | With air flush |
| Leakage | 1x10^-7 mbar·l/s |
| Pressure (psi) | ≤ 3.8×10^4 psi |
| Ultimate Pressure | ≤ 2.6×10^-2 mbar / ≤ 1.9×10^-2 Torr |
| Ambient Operation Temperature | 41 to 104°F |
| Maximum Inlet and Exhaust Pressure | 0.1 / 0.13 MPa |
| Pumping Speed (50 Hz) | 4.3 L/s / 258.0 L/min / 15.5 m³/h / 9.3 cfm |
| Pumping Speed (60 Hz) | 5.1 L/s / 310 L/min / 18.3 m³/h / 10.9 cfm |
| Power (1 phase) | 0.55 kW |
| Voltage (1 phase) | 50 Hz / 200V to 230V or 380V to 415V / 460V |
| Speed (1 phase) | 50 Hz / 1425 rpm | 60 Hz / 1725 rpm |
| Connect (1 phase) | North America / Europe / UK / Ireland / India |
| Power (3 phase) | 0.55 kW |
| Voltage (3 phase) | 50 Hz / 200V to 230V or 380V to 415V / 460V |
| Speed (3 phase) | 50 Hz / 1425 rpm | 60 Hz / 1725 rpm |
| Inlet and Exhaust Flange (3 phase) | KF25/16 |
| Net Weight (1 Phase) | 27 kg |
| Net Weight (3 Phase) | 31 kg |
| Dimensions (W×D×H) 1 Phase | 495×305×355 mm |
| Dimensions (W×D×H) 3 Phase | 495×305×355 mm |
Key Features
- High efficiency, low vibration and low noise
- No oil mist exhaust, and no oil back diffusion
- Integrated with motor 1 and motor 3 phase
- Suitable to use for cleaning processes
- Constantly operated between vacuum and atmospheric
- Easy to clean, operate and less maintenance
- Suitable for various type of power supply around the world
Product Description
Scroll Vacuum Pump LSVP-A12 is designed with an air cooling system, air flush, and an innovative scroll design that reduces vibration and noise. It is a reliable, durable, oil-free, high-performance vacuum pump, combined with lower power consumption and lower ultimate pressures. Offers ambient operation temperature ranges from 41 to 104°F and maximum inlet and exhaust pressure of 0.1 / 0.13 MPa. It is suitable for use in molecular pump backing, accelerators and synchrotrons, capacitor exhaust, surface analysis instruments, E-beam and laser melting, spectroscopy and scanning electron microscopy, leak detection, space environment simulation, glove boxes, and coating PVD, CV, and PLD.
Applications:
Scroll Vacuum Pump is widely used in hydrogen fuel cell processes, oil vapor recovery, LED, LCD, and laser tubes, load lock and transfer chambers, freeze drying and gel drying, special gas recovery and recirculation, vacuum ovens, lithium-ion battery processes, distillation, purification and filtration, and Cryo pump regeneration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pumping speed of this model is 4.3 L/s at 50 Hz and 5.1 L/s at 60 Hz, which is equivalent to 258.0 L/min and 310 L/min, respectively.
The ultimate pressure of the Scroll Vacuum Pump ESVP-A12 is ≤ 2.6×10^-2 mbar or ≤ 1.9×10^-2 Torr.
It operates within an ambient temperature range of 41 to 104°F.
The noise level of this unit is ≤ 60 dB, making it suitable for quieter environments.
This model features an air cooling system, which helps maintain efficient operation during use.
The maximum inlet and exhaust pressure for the Scroll Vacuum Pump ESVP-A12 is 0.1 / 0.13 MPa.
The dimensions of this unit are 495×305×355 mm for both the 1 phase and 3 phase models.
The net weight is 27 kg for the 1 phase model and 31 kg for the 3 phase model.
This model supports voltage options of 200V to 230V or 380V to 415V, as well as 460V for both 1 phase and 3 phase configurations.
The leakage rate for the Scroll Vacuum Pump ESVP-A12 is 1x10^-7 mbar·l/s.
