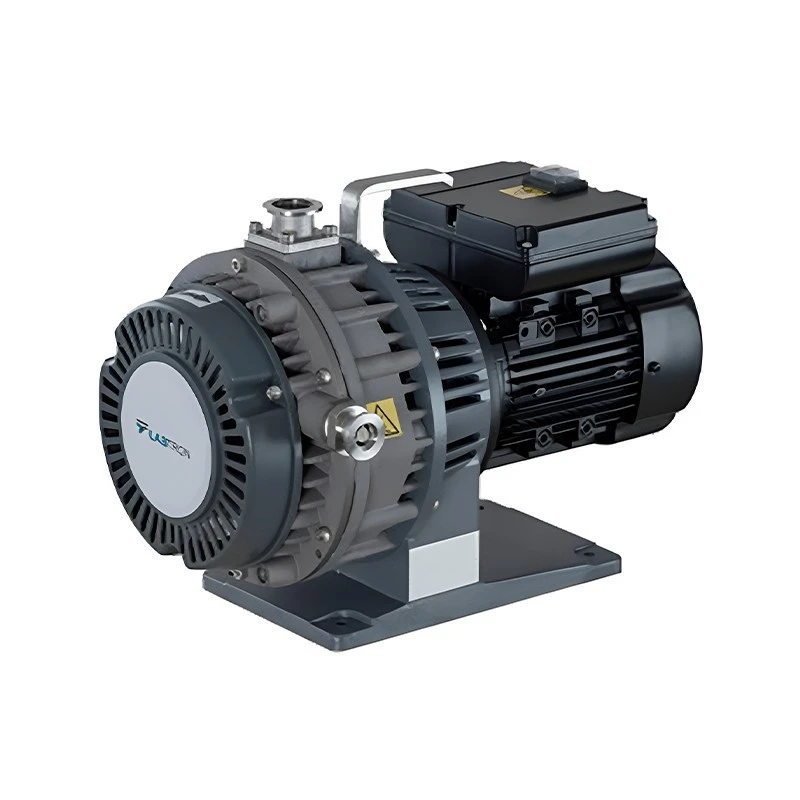

Scroll Vacuum Pump ESVP-A11
Specifications
| Country of Origin | UK |
|---|---|
| Brand | Generic Brand |
| Particle size | ≤ 40 micron |
| Model | LSVP-A11 |
| Noise Level | ≤ 52 dB |
| Type of Product | Lab Vacuum Pump |
| Cooling Type | Air cooled |
| Others | With air flush |
| Leakage | 1x10^-7 mbar·l/s |
| Pressure (psi) | ≤ 9.0×10^4 psi |
| Ultimate Pressure | ≤ 6.0×10^-2 mbar / ≤ 4.0×10^-2 Torr |
| Ambient Operation Temperature | 41 to 104°F |
| Maximum Inlet and Exhaust Pressure | 0.1 / 0.13 MPa |
| Pumping Speed (50 Hz) | 2.0 L/s / 120.0 L/min / 7.2 m3/h / 4.3 cfm |
| Pumping Speed (60 Hz) | 2.4 L/s / 144 L/min / 8.6 m3/h / 5.1 cfm |
| Power (1 phase) | 0.25 kW |
| Voltage (1 phase) | 50 to 60 Hz / 110 to 115V or 200 to 230V |
| Speed (1 phase) | 50 Hz / 1425 rpm | 60 Hz / 1725 rpm |
| Connect (1 phase) | North America / Europe / UK / Ireland / India |
| Power (3 phase) | 0.37 kW |
| Voltage (3 phase) | 50 Hz / 200 to 230V or 380 to 415V / 460V |
| Speed (3 phase) | 50 Hz / 1425 rpm | 60 Hz / 1725 rpm |
| Inlet and Exhaust Flange (3 phase) | KF25/16 |
| Net Weight (1 Phase) | 18 kg |
| Net Weight (3 Phase) | 20 kg |
| Dimensions (W×D×H) 1 Phase | 465×265×305 mm |
| Dimensions (W×D×H) 3 Phase | 465×265×305 mm |
Key Features
- High efficiency, low vibration and low noise
- No oil mist exhaust, and no oil back diffusion
- Integrated with motor 1 and motor 3 phase
- Suitable to use for cleaning processes
- Constantly operated between vacuum and atmospheric
- Easy to clean, operate and less maintenance
- Suitable for various type of power supply around the world
Product Description
Scroll Vacuum Pump LSVP-A11 is a portable unit, offering ambient operation temperature ranges from 41 to 104°F and maximum inlet and exhaust pressure of 0.1 / 0.13 MPa. Designed with an air cooling system, air flush, and an innovative scroll design that reduces vibration and noise. It is a reliable, durable, oil-free, high-performance vacuum pump, combined with lower power consumption and lower ultimate pressures. It is suitable for use in molecular pump backing, accelerators and synchrotrons, capacitor exhaust, surface analysis instruments, E-beam and laser melting, spectroscopy and scanning electron microscopy, leak detection, space environment simulation, glove boxes, and coating PVD, CV, and PLD.
Applications:
Scroll Vacuum Pump is widely used in hydrogen fuel cell processes, oil vapor recovery, LED, LCD, and laser tubes, load lock and transfer chambers, freeze drying and gel drying, special gas recovery and recirculation, vacuum ovens, lithium-ion battery processes, distillation, purification and filtration, and Cryo pump regeneration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
At 60 Hz, this model has a pumping speed of 2.4 L/s, which is equivalent to 144 L/min or 8.6 m³/h.
The ultimate pressure of the Scroll Vacuum Pump ESVP-A11 is ≤ 6.0×10^-2 mbar or ≤ 4.0×10^-2 Torr.
The dimensions of the Scroll Vacuum Pump ESVP-A11 are 465×265×305 mm.
The noise level of the Scroll Vacuum Pump ESVP-A11 is ≤ 52 dB.
This vacuum pump operates within an ambient temperature range of 41 to 104°F.
It features an air cooling system, which helps maintain efficient operation.
The maximum inlet and exhaust pressure for the Scroll Vacuum Pump ESVP-A11 is 0.1 / 0.13 MPa.
This model can operate on either a single-phase or three-phase power supply, with voltage options of 110 to 115V or 200 to 230V for single-phase, and 200 to 230V, 380 to 415V, or 460V for three-phase.
The net weight of the unit is 18 kg for the single-phase model and 20 kg for the three-phase model.
The leakage rate of the Scroll Vacuum Pump ESVP-A11 is 1x10^-7 mbar·l/s.
This model is suitable for applications such as molecular pump backing, surface analysis instruments, leak detection, and various processes in hydrogen fuel cells and lithium-ion batteries.
The Scroll Vacuum Pump ESVP-A11 can handle particles up to ≤ 40 microns in size.
