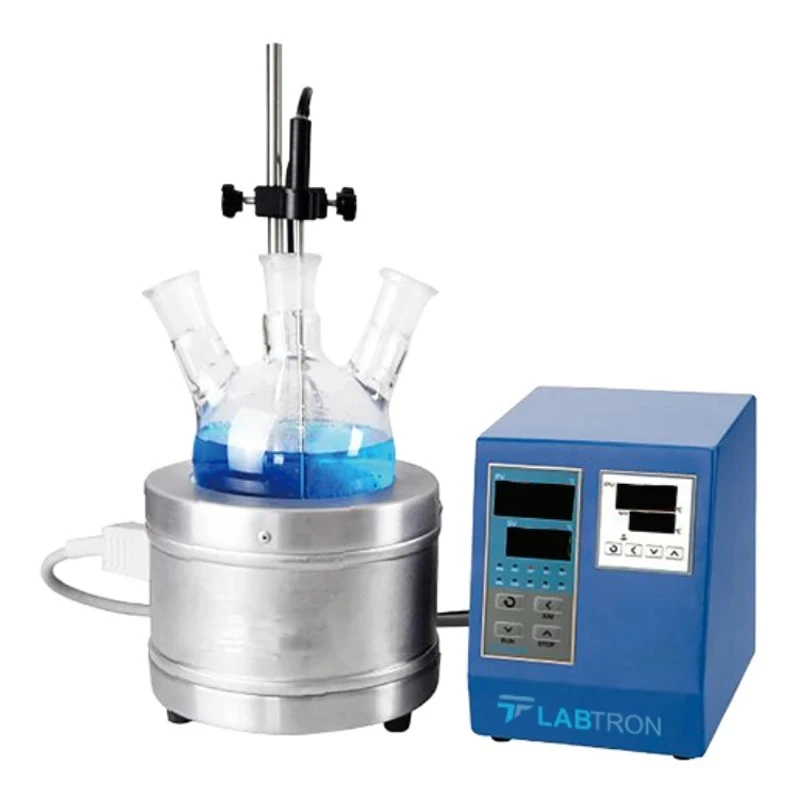

Labtron LTHM-A14 Temperature Controller Heating Mantle image-1

Free Delivery in India | Lowest Global Shipping Charges

Temperature Controller Heating Mantle ETHM-A14

Name: Temperature Controller Heating Mantle ETHM-A14
Brand: Generic Brand
SKU: ADBST
Price: 69.5 USD
Availability: InStock



SKU ADBST Category Heating Mantles Brand Generic Brand Condition New

Specifications

Resolution	0.01°C
Brand	Generic Brand
Model	LTHM-A14
Temperature Stability	Greater than ± 0.03°C
Flask Capacity	5000 ml
Display Accuracy	± 0.1%
Maximum Current	10A
Internal Operating Temperature	450°C
Adjustable Temperature Range	0 to 550°C
Temperature Controller Display	LED / PID controlled
Temperature Controller Sensor	PT100 - K-type thermocouple (optional)
Temperature Controller Measurement	4-lead technique
Temperature Controller Interface	RS232
Flask Diameter	Φ220×305
Flask Dimension (H×D)	178×109 mm
Flask Power	600 W
Temperature Controller Power Supply	100 to 240 V AC / -15% to +10% / 50/60 Hz
Temperature Controller Power	≤ 4.5 W
Heating Mantle Weight	2.8 kg
Temperature Controller Weight	2.5 kg

Key Features

Comprised with aluminium covered bottom of spherical flask mantle and PID temperature controller
5000 ml of flask capacity and 220 mm of diameter, to meet various experiments' requirements
Withstand internal operating temperature of 450°C and adjustable temperature range of 0 to 550°C
Rigid housing and fabric interior mantle, ensures stability and durability
Temperature controller with LED display and indicator, for set temperature and current temperature
K-type thermocouple and PT100 sensor, as optional measurement sensor input type
4-lead technique measurement, with self-adjustment (AT) function and elaborate control
Supports RS232 interface, paperless recorder with easy user-interface
Smaller feet design, provides stability and cooler exterior temperatures
Highly efficient, stable, and reliable with high precision and accurate operation

Product Description

Temperature Controller Heating Mantle LTHM-A14 is comprised with an aluminium-covered bottom of a spherical flask mantle and a PID temperature controller. With a 5000 ml flask capacity and 220 mm flask diameter, it offers an internal operating temperature of 450°C and an adjustable temperature range of 0 to 550°C.

Designed with rigid housing and a fabric interior mantle, it features a temperature controller with LED display and indicators, a K-type thermocouple, and a PT100 sensor. It also supports an RS232 interface, a paperless recorder, and 4-lead technique measurement with self-adjustment (AT) function for precise control.

Applications

Temperature Controller Heating Mantle is used to heat or temper certain media in glass vessels, for the exact preparation of samples and to uniformly heat various lab and glassware vessels across various labs, medical, pharmaceutical, scientific, and research institutes.
