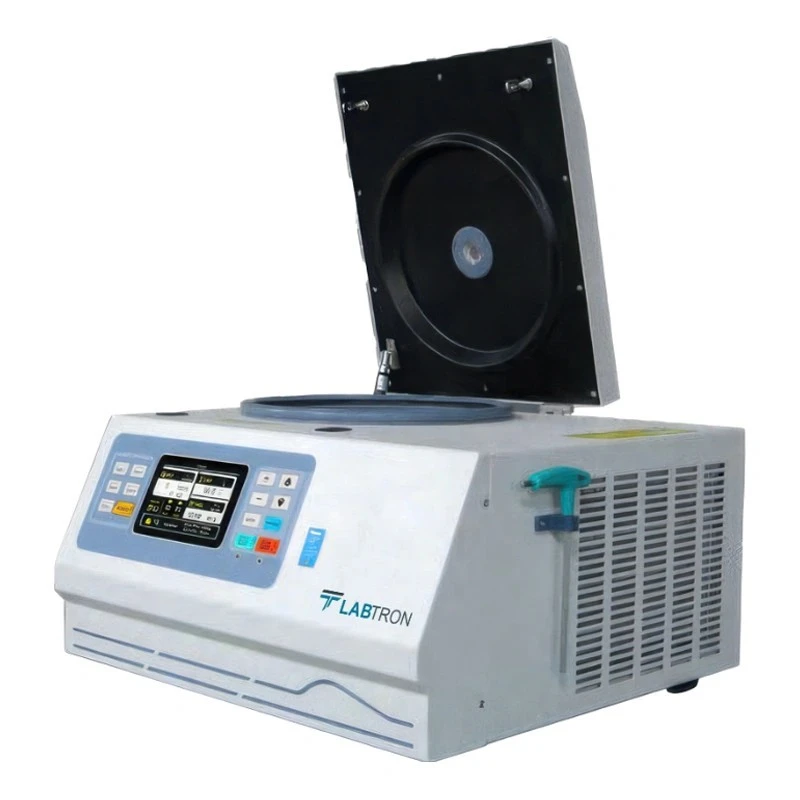

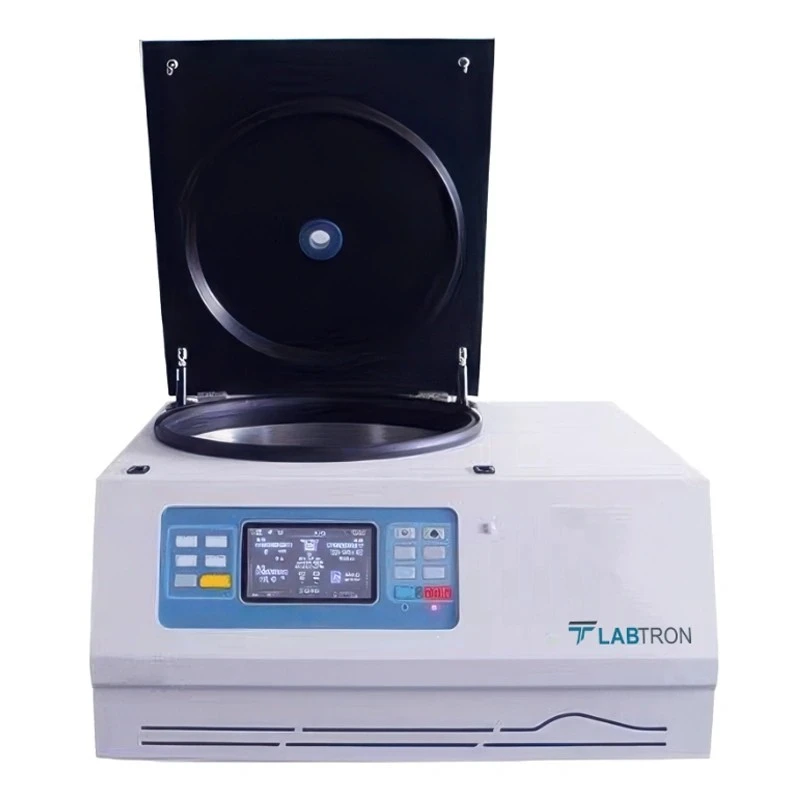

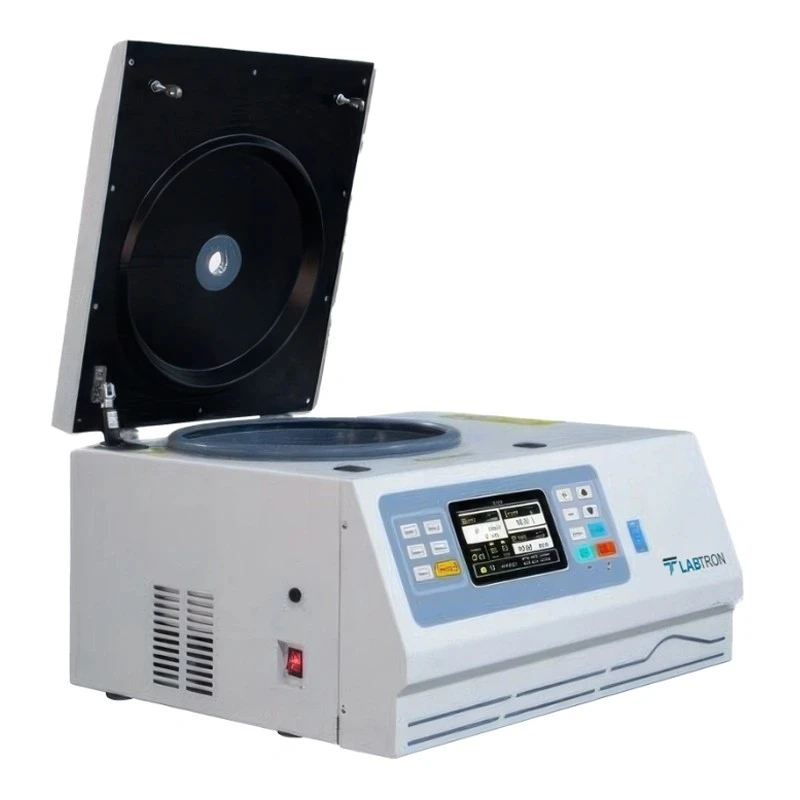

Refrigerated Centrifuge LRF-A19 features a maximum speed of 16,000 rpm and a maximum RCF of 27,762 × g for high-speed processing. It comes with an energy-efficient, eco-friendly refrigeration system that minimizes power usage. The AC frequency conversion brushless motor ensures smooth and efficient operation. Our Refrigerated Centrifuge automatically calculates RCF and PRM, allowing easy switching between RCF and RPM for added convenience.

Applications

Refrigerated Centrifuge LRF-A19 is used in cell and tissue separation, protein and DNA/RNA extraction, blood and plasma separation, microbiology and virology, pharmaceutical and biotechnology research, clinical laboratories, and environmental science.

Rotor Selection

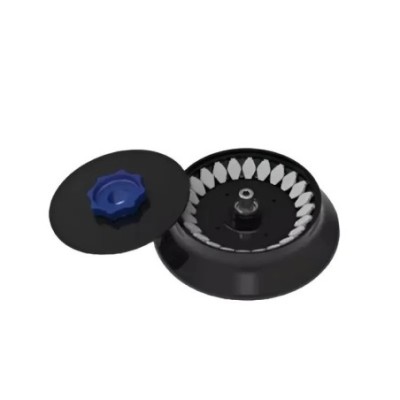

Angle Rotors:

• Angle Rotor 01 → Max Speed: 16,000 rpm, Capacity: 48 × 1.5/2.0 ml (Double row), Max RCF: 27,762 × g
• Angle Rotor 02 → Max Speed: 15,500 rpm, Capacity: 30 × 1.5/2.0 ml (Single row), Max RCF: 26,859 × g
• Angle Rotor 03 → Max Speed: 15,000 rpm, Capacity: 18 × 5 ml (Single row), Max RCF: 22,010 × g
• Angle Rotor 04 → Max Speed: 12,000 rpm, Capacity: 8 × 50 ml (Conical/round bottom), Max RCF: 18,160 × g
• Angle Rotor 05 → Max Speed: 11,000 rpm, Capacity: 6 × 100 ml, Max RCF: 14,745 × g
• Angle Rotor 06 → Max Speed: 10,000 rpm, Capacity: 12 × 50 ml (Conical/round bottom), Max RCF: 15,383 × g
• Angle Rotor 07 → Max Speed: 10,000 rpm, Capacity: 6 × 250 ml, Max RCF: 15,093 × g

Swing-Out Rotor:

• Swing-Out Rotor 01 → Max Speed: 4,200 rpm, Capacity: 4 × 1,000 ml, Max RCF: 3,940 × g

Adapter Selection

• Adapter 01 → Micro-plate bucket (4 × 2 × 96 hole)
• Adapter 02 → 4 × 10 × 50 ml (Conical/round bottom)
• Adapter 03 → 4 × 24 × 15 ml (Conical/round bottom)
• Adapter 04 → 4 × 750 ml (Round bottom)
• Adapter 05 → 4 × 500 ml (Round bottom)
• Adapter 06 → 4 × 500 ml (Conical bottom)
• Adapter 07 → 4 × 250 ml (Conical bottom)
• Adapter 08 → 8 × 250 ml (Round bottom)
• Adapter 09 → 140 × 10 ml (Blood collection tube)
• Adapter 10 → 196 × 2-7 ml (Blood collection tube)
