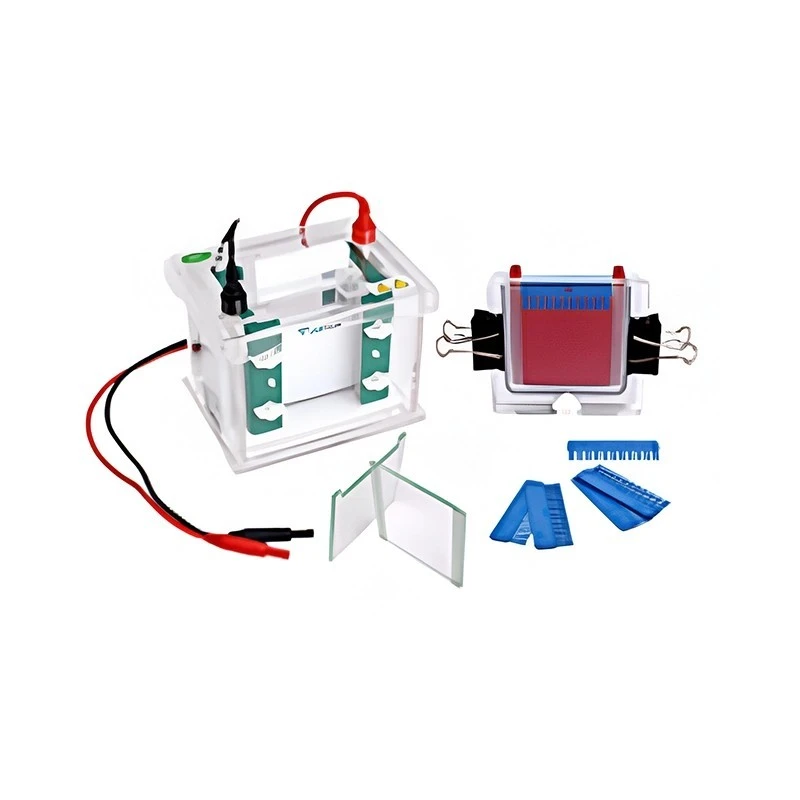

Vertical Electrophoresis System LVES-A12 is a versatile unit with gel dimensions (W × L) 82 × 88 mm, enabling complete control over sample loading and casting dams, with a throughput of 11 to 60 samples. It can run one, two, or up to four gels simultaneously using a glass plate sandwich. The buffer volume of 1000 ml provides a cooling effect and stable pH during the process. The transparent glass allows gel observation from both sides. It is used for the separation, purification, and preparation of proteins, amino acids, and nucleic acids.

Applications:

Vertical Electrophoresis System is used for the separation, purification, and preparation of amino acids, proteins, and nucleic acids for studying vaccines, drug discovery, forensics, DNA profiling, and other life science applications. It is also used in industries such as mining or food sciences.

Standard Accessories:

• Lid with cables × 1
• body tank × 1
• gel casting core with electrodes × 2
• gel casting stand × 2
• notched glass plates × 6
• spacer plate with 1.0 mm glass spacer × 4
• spacer plate with 1.5 mm glass spacer × 4
• 1.0 mm thickness 11-well comb × 4
• 1.5 mm thickness 11-well comb × 4
• 1.0 mm thickness 15-well comb × 4
• 1.5 mm thickness 15-well comb × 4
• gel releaser × 2
• wedged-shaped plates × 4
• dummy plate × 3
