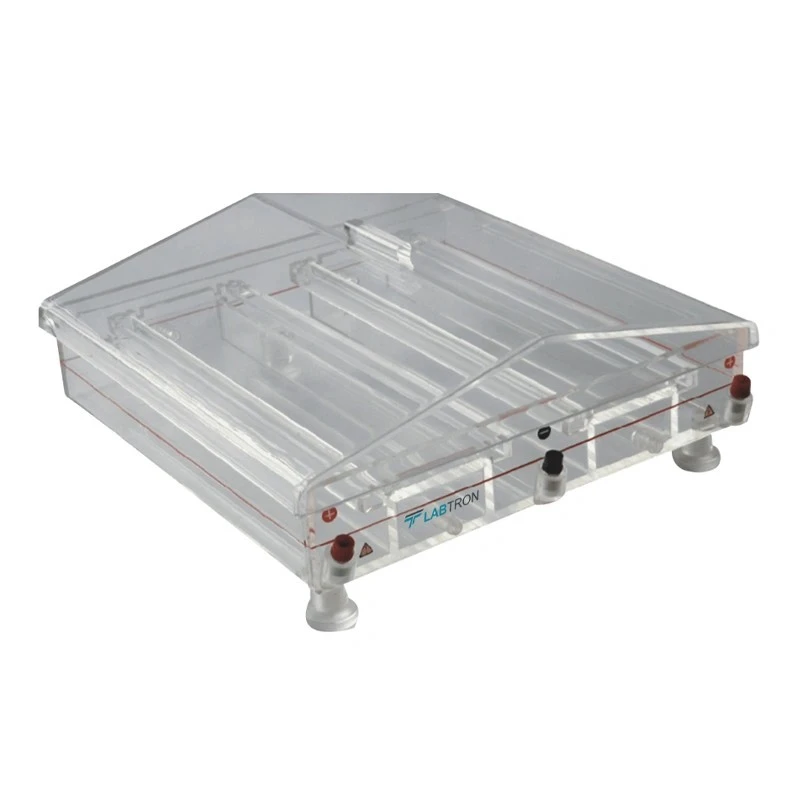

Horizontal Electrophoresis System (DUAL TANK) LHES-B10 is designed with three platinum electrodes, where one serves as the negative terminal and the other two are positive terminals. It is composed of a tank, swim clubs, latex tube, and power cord, resulting in an overall dimension of 296×266×122 mm. This system is ideal for a wide range of samples, including plasmid preparation, PCR reactions, restriction fragments, and RFLP analyses. The cellulose acetate membrane (CAM) allows for the simple and rapid separation of biomolecules. The (DUAL TANK) Horizontal Electrophoresis System saves the sample, offers high specificity, and provides strong resolution for serum protein fraction analysis. This dual-tank electrophoresis works with the Power Supply for LHES-B10 to meet the requirements of standard acid electrophoresis, small and medium-sized vertical electrophoresis, and transfer power supply. It is programmable and can store up to 12 common procedures. The temperature control function ensures that the gel does not overheat (optional) and guarantees better results.

Applications:

Horizontal Electrophoresis System (DUAL TANK) is a qualitative analysis method widely used in various fields, such as immune electrophoresis and cellulose acetate membrane electrophoresis, purity detection of antigen and antibody, clinical examination, medical research, and teaching experiments.
