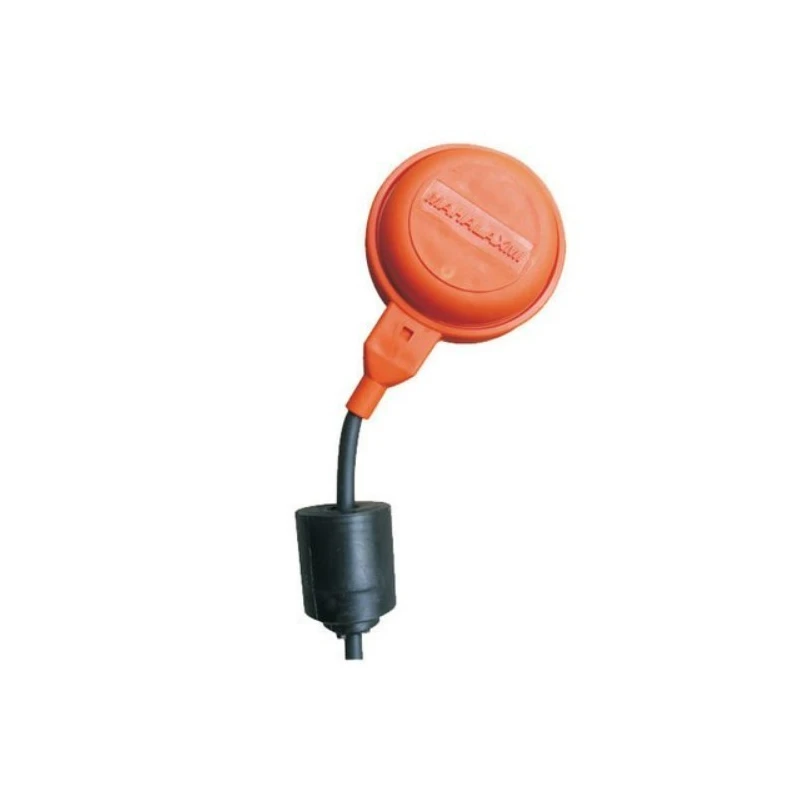

Float Switches 230 VAC

Float SwitchesFloat Switches is a control device for filling and discharging pumps, motor, and magnetic valves. It is also an alarm device at certain pre-determined surface levels. It is suitable for use in non-flammable liquids at 250 volts. In dangerous environments (e.g. wells and pumping stations) we recommend 24 V voltage. In potentially explosive atmospheres (e.g. oil tanks) the Switch can be used in conjunction with (Ex) i-isolator switch units. Due to its large float casing, the float Switch has a buoyancy which guarantees smooth, trouble-free operation under all conditions. The switch has the double chamber and a final remolding finish to make it absolutely hermetic.Installation Process :Cable Float Level Switch is simply placed in the liquid so that the float follows the movement of the surface. The switching height differential is adjusted by moving the weight along the cable. The differential is minimum when weight is nearest to the float. If the viscosity of the liquid is high, we recommend an extra weight on the cable.
