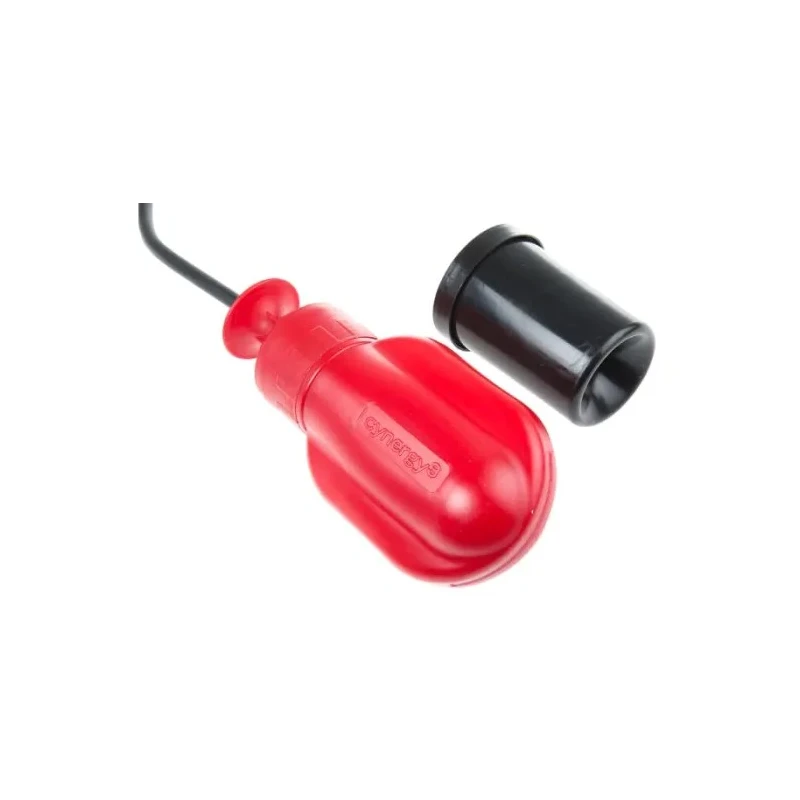

RS PRO MS Series Cable Float Switch, 5 m Cable, SPNC Output, 250 V AC Max, 24 V DC Max Cynergy3

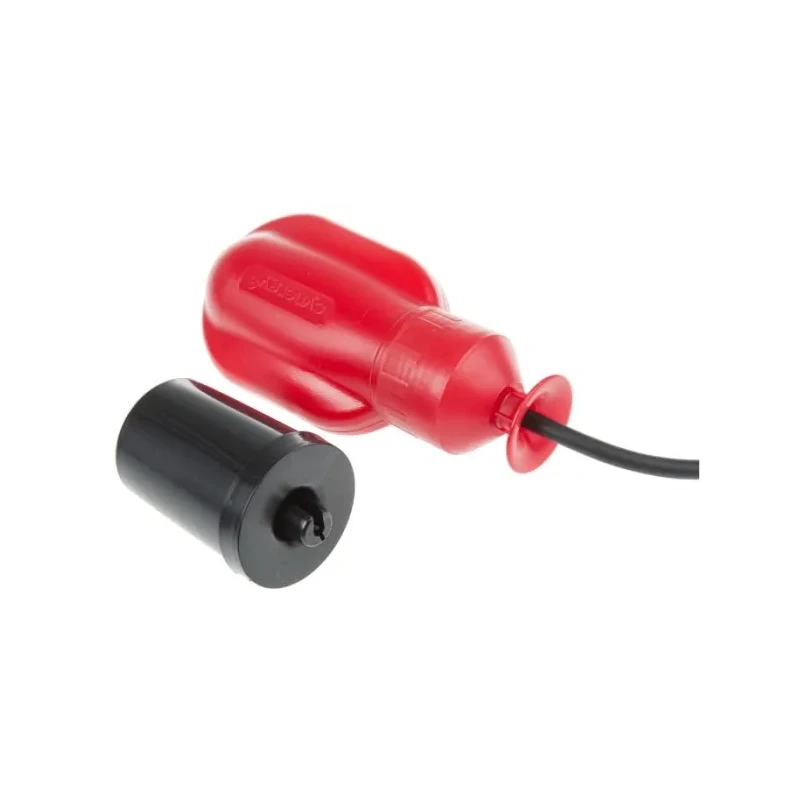

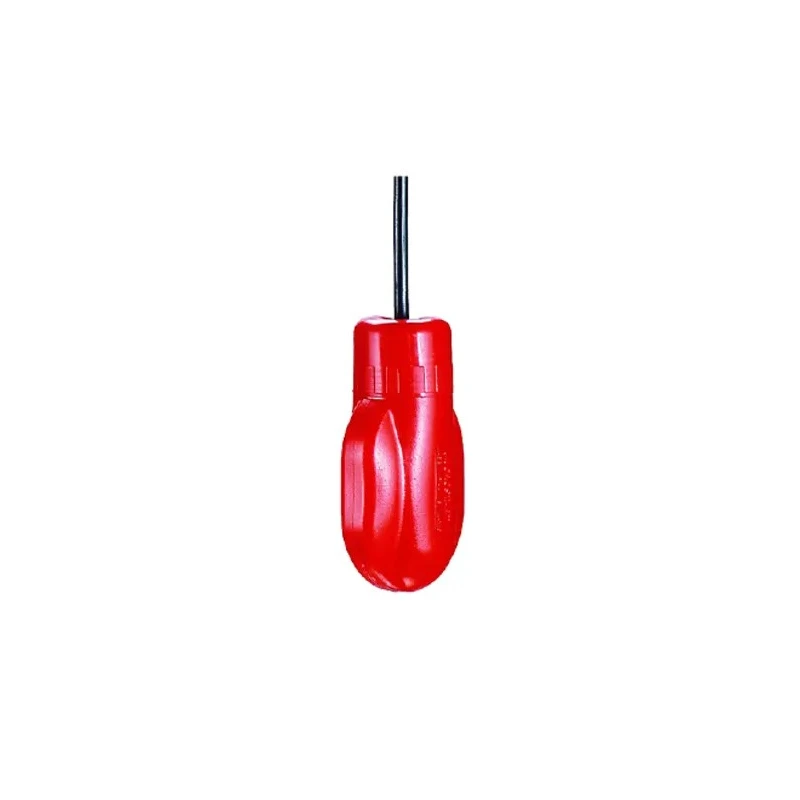

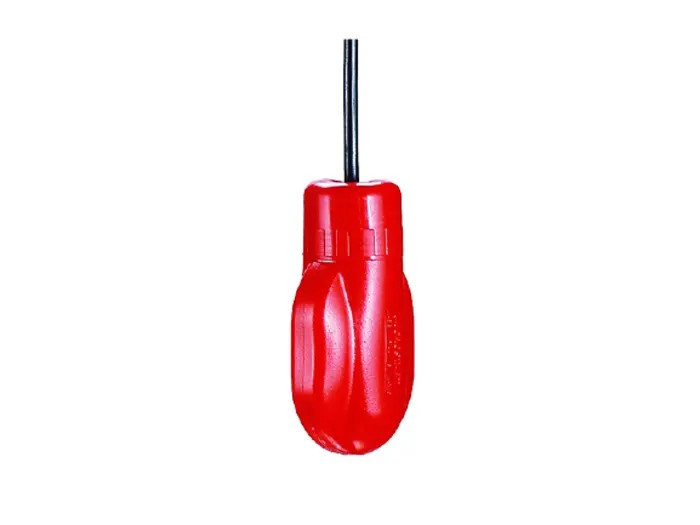

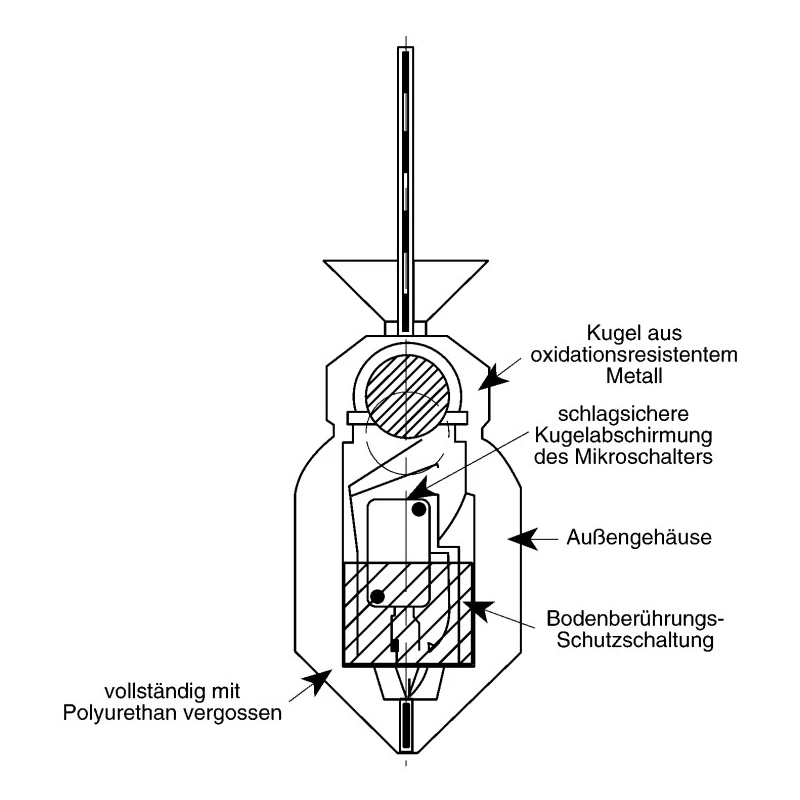

Cynergy3 MS10B Cable Float Switch is a high-quality sensor designed to monitor liquid levels in large tanks, cisterns, and reservoirs, ideal for integration with submersible pumps. The float switch features a durable blow-moulded polyethylene case with hermetic sealing by injected closed-cell polyurethane, protecting the internal switch mechanisms from moisture and contamination.

This model includes a 5-meter PVC cable with protective earth conductor, enabling convenient installation in varied industrial environments. It operates reliably within a temperature range of 0°C to 45°C, and can sustain pressures up to 10 bar, allowing for deployment under water depths up to 100 meters.

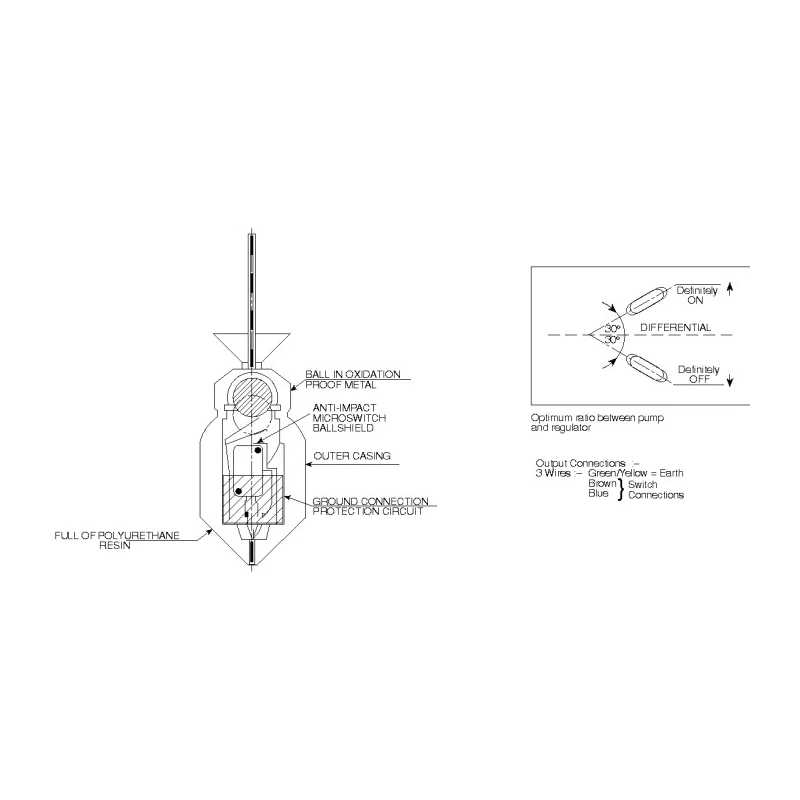

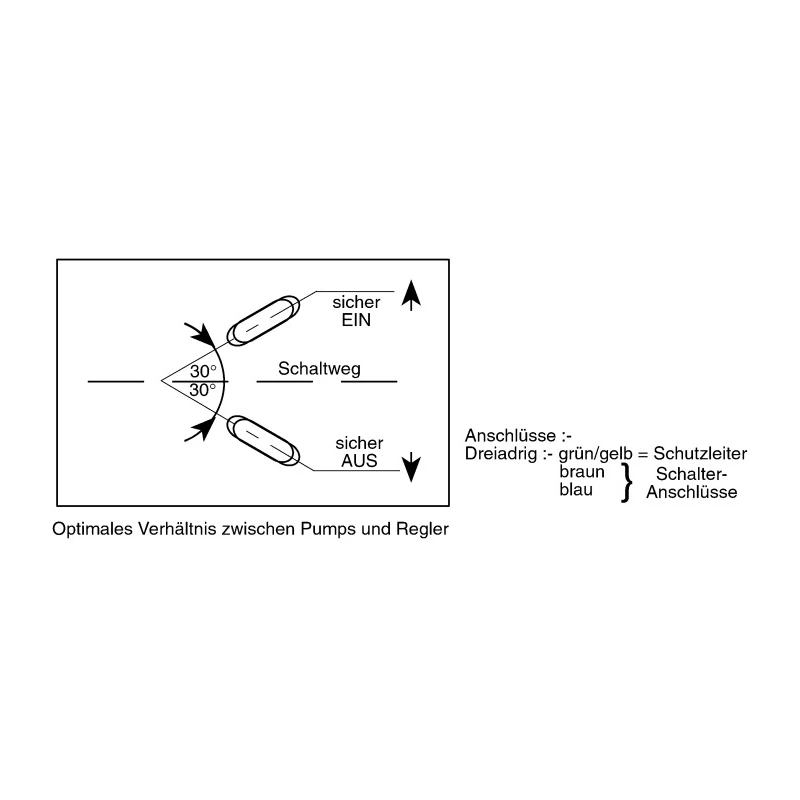

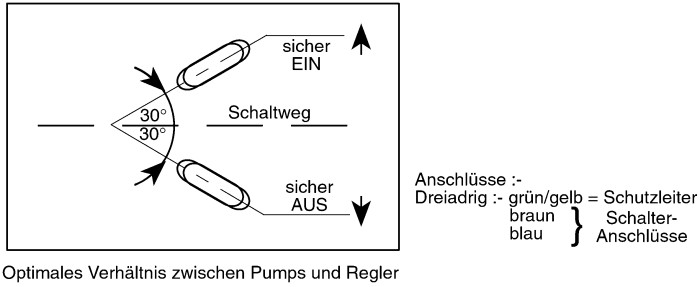

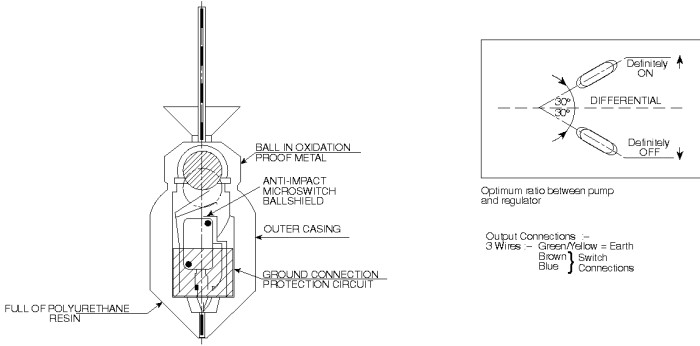

The switch incorporates a stainless-steel ball actuator that provides an electrical life expectancy of up to 200,000 operations and uses a normally closed (NC) single pole normally closed (SPNC) output configuration, switching off the circuit when liquid levels exceed the set point. Rated for a maximum electrical load of 250 V AC and 24 V DC with a current capacity of 10 A, it supports high load operations safely.

Construction materials include high density polyethylene for the housing and PVC for the cable, with options for PUR cables available on specific variants for fuel oil applications. The product is compliant with UL and VDE certifications ensuring adherence to rigorous safety and performance standards, although it has no hazardous area certification.

Applications include industrial automation, water treatment, HVAC systems, and agricultural fluid level monitoring, providing dependable liquid level control and protection for pumping systems.

Constructed with high density polyethylene for durable housing. Operates within 0°C to 45°C ambient temperature range. Designed for use in tanks, reservoirs, and with submersible pumps. Hermetically sealed switch housing with polyurethane to prevent moisture ingress.

Rated for pressures up to 10 bar, suitable for submersion up to 100 m depth. Features normally closed (NC) SPNC switch output for direct power switching. Suitable for use in fresh water, salt water, and food oils but not recommended for alcohols or fuels.

Complies with UL and VDE standards ensuring electrical safety and reliability. Explore our broad range of electrical switch and sensor solutions at EnvMart for industrial-grade automation and control applications.
