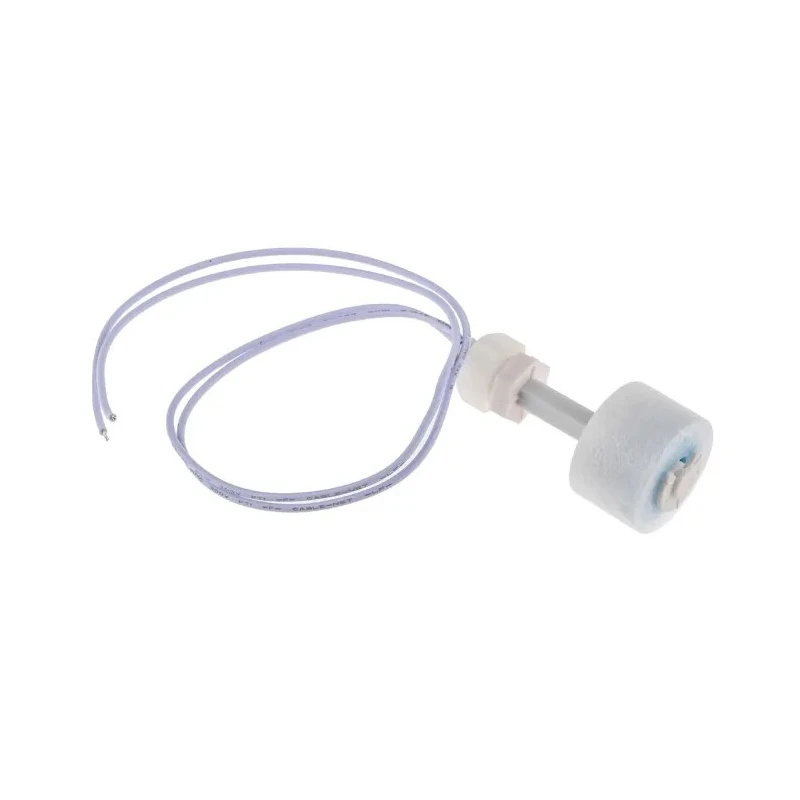

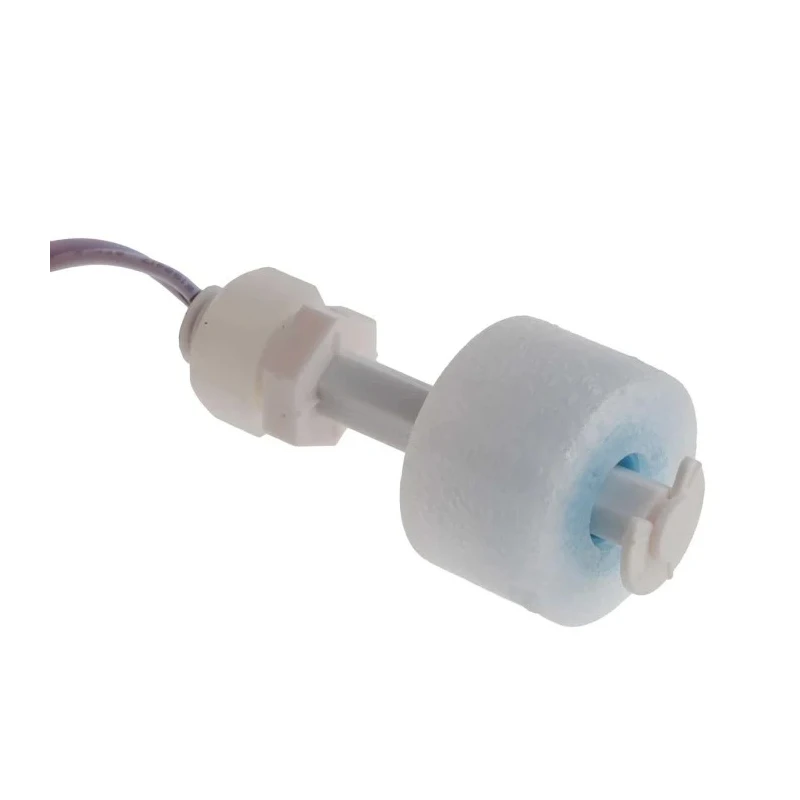

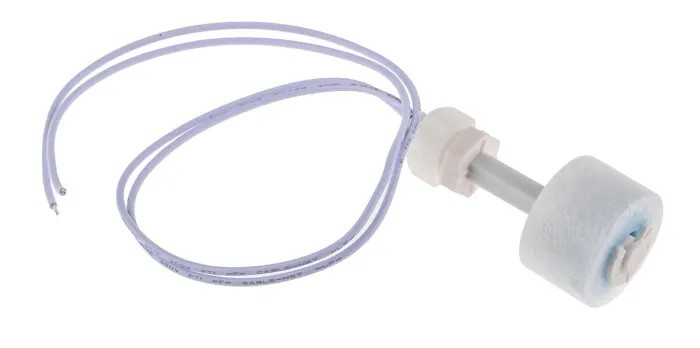

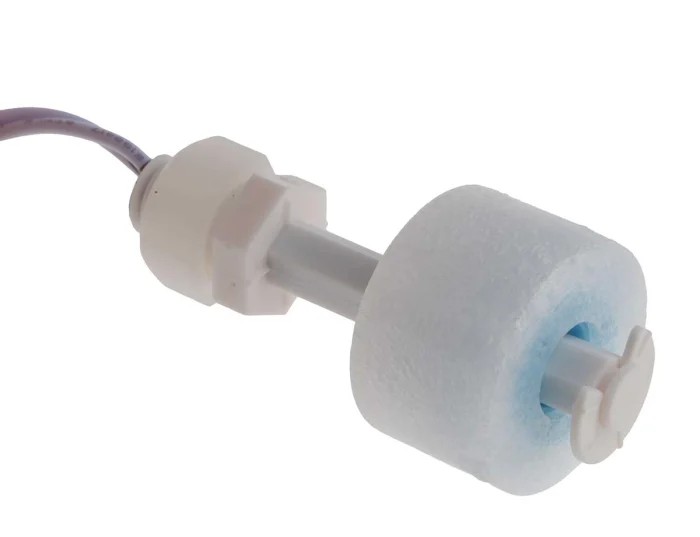

RS PRO Vertical Silicone Float Switch, 300 mm Cable, Direct Load, 250V AC Max, 200V DC Max 519-258
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 519-258 |
| Cable Length | 300mm |
| Mount Type | Vertical |
| Housing Material | Polypropylene |
| Maximum Operating Temperature | 80°C |
| Maximum Pressure | 1bar |
| Switch output | Direct Load |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 2A |
| Maximum dc Voltage | 200V dc |
| Standards/Approvals | FDA |
| Maximum AC Voltage | 250V ac |
| Gasket Material | Silicone |
Key Features
- The float switch operates reliably over a temperature range from -20°C to +80°C.
- It features a polypropylene housing making it robust and suitable for various applications including food-safe uses.
- The device is IP67 rated, ensuring excellent protection against dust and water ingress.
- Equipped with a silicone gasket, the switch offers effective sealing and durability.
- It supports a maximum current of 2A and a maximum pressure of 1 bar.

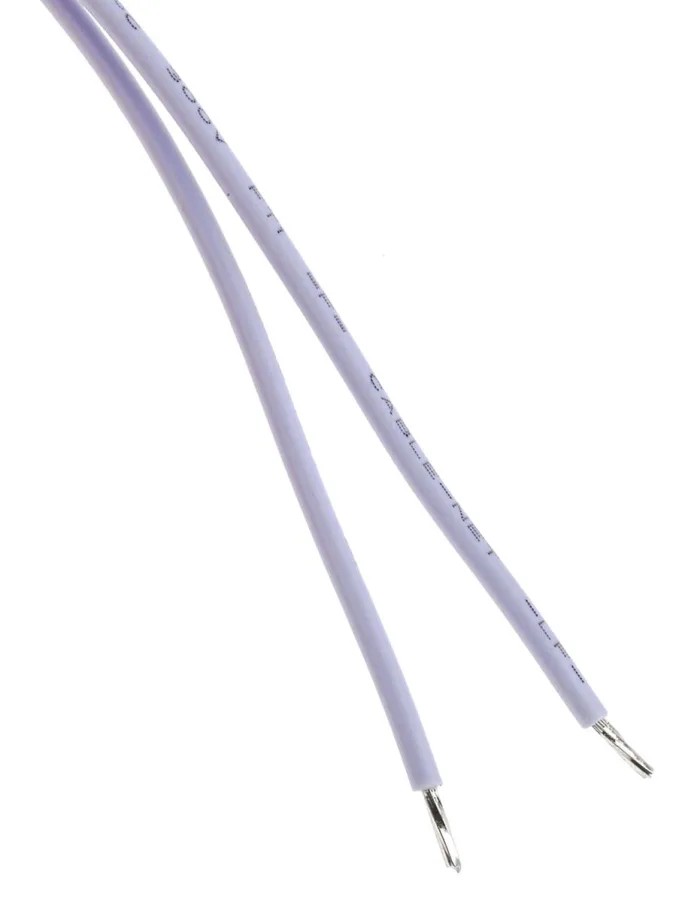

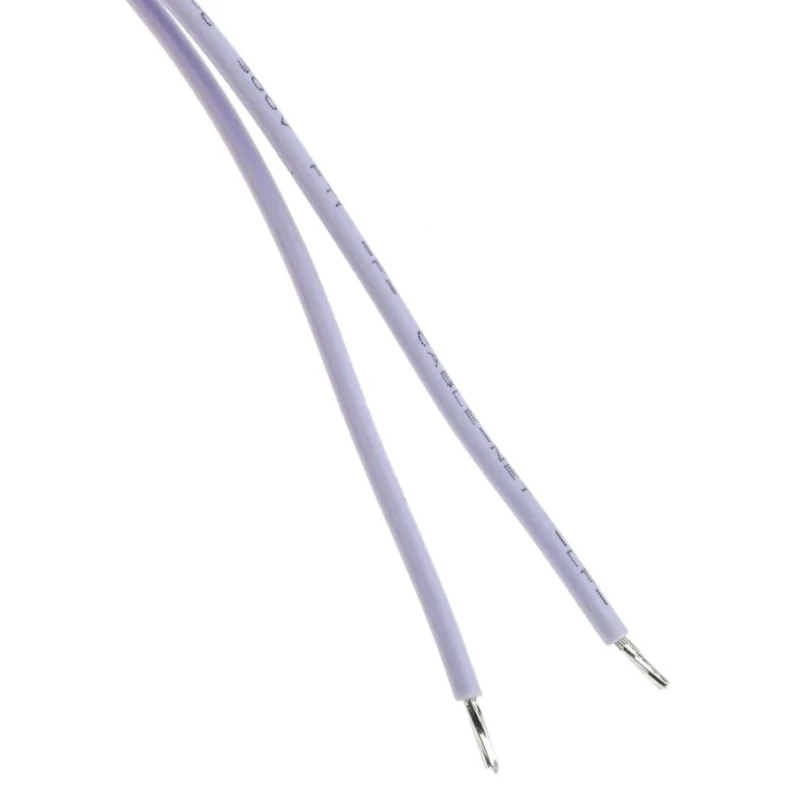

- The float switch includes 300 mm AWG 24 UL 1007 leads for easy connectivity.
- Its versatile mounting options allow for top or bottom installation with functional reversal when mounted stem-up.
- Complies with FDA standards but does not have hazardous area certification.
Product Description
RS PRO 519-258 Vertical Silicone Float Switch is engineered for precise fluid level control in industrial and commercial equipment. Featuring a durable polypropylene housing and silicone gasket, this float switch ensures long-lasting performance even under demanding environmental conditions with temperatures from -20°C up to +80°C.
With its direct load switching capability, it safely operates at a maximum of 250V AC and 200V DC with current handling up to 2 amps. Its IP67 rating guarantees full protection against dust and water ingress, making it ideal for applications including water dispensers, tank monitoring systems, vending machines, coffee machines, and printing equipment.
The float switch comes with 300 mm UL 1007 AWG 24 leads, allowing flexible installation and connection. You can mount it vertically either at the top or bottom of tanks; mounting with the stem up reverses the operating function to suit different control needs. The device's FDA compliance makes it suitable for food contact applications.
This RS PRO float switch is a reliable component for industrial automation and control gear solutions requiring precise and safe fluid level sensing, operating pressure up to 1 bar.
The switch features a polypropylene housing ensuring chemical resistance and durability. Operating temperature range of -20°C to +80°C permits use in diverse environments. Rated for direct load switch output at 250V AC and 200V DC maximum voltages.
IP67 ingress protection for reliable operation in wet or dusty conditions. 300 mm cable with UL certification provides secure electrical connections. FDA compliant materials suitable for food industry applications. Maximum current rating of 2 amps suits low power control circuits.
Maximum pressure tolerance of 1 bar for safe operation within fluid systems. Explore the RS PRO range of Float Switches on EnvMart for dependable industrial automation components that meet stringent quality standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this float switch is +80°C.
It has a maximum AC voltage rating of 250V and a maximum DC voltage rating of 200V.
This float switch can handle a maximum current of 2A.
The housing is made of polypropylene, and it features a silicone gasket for effective sealing.
It has an IP67 rating, providing excellent protection against dust and water ingress.
The float switch operates reliably over a temperature range from -20°C to +80°C.
It can be mounted vertically at the top or bottom of tanks, with functional reversal when mounted stem-up.
The maximum pressure tolerance is 1 bar, suitable for safe operation within fluid systems.
The float switch comes with a 300 mm cable.
Yes, it complies with FDA standards, making it suitable for food contact applications.
It features a direct load switch output.
It is suitable for various applications including water dispensers, tank monitoring systems, vending machines, and coffee machines.
