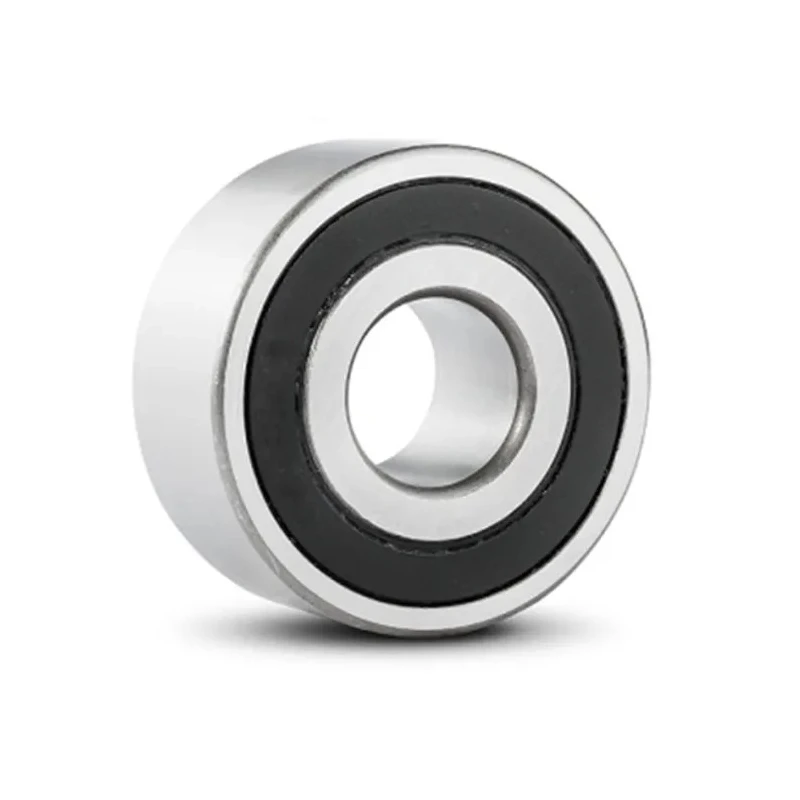

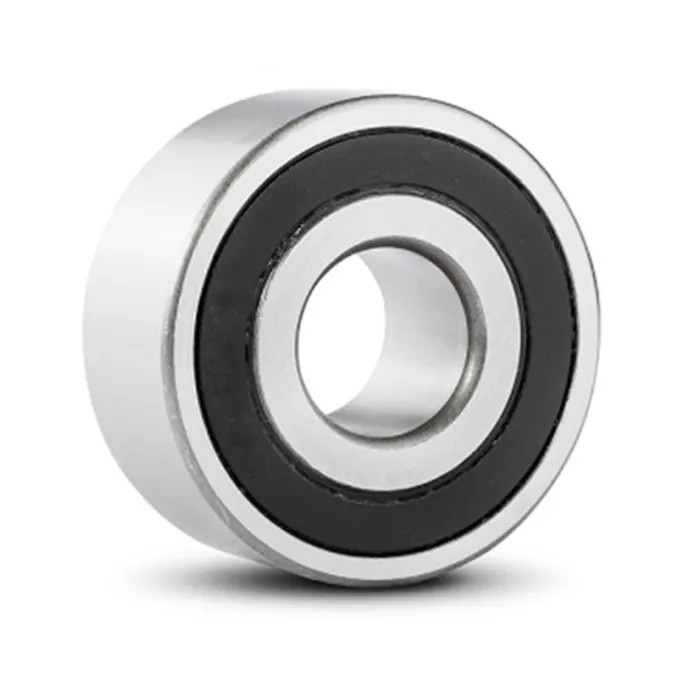

RS PRO Double Row Angular Contact Ball Bearing 10 mm ID, 30 mm OD, 14 mm Race Width 3200-B-2RSR-TV

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Double Row Angular Contact Ball Bearing 10 mm ID, 30 mm OD, 14 mm Race Width 3200-B-2RSR-TV

Name: RS PRO Double Row Angular Contact Ball Bearing 10 mm ID, 30 mm OD, 14 mm Race Width 3200-B-2RSR-TV
Brand: RS PRO
SKU: 428142
Price: 20.22 USD
Availability: InStock



Category Ball Bearings Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	3200-B-2RSR-TV
Series	2 Light
Outside diameter	30mm
Inside Diameter	10mm
Number of Rows	2
Ball Material	Stainless Steel
Internal Clearance	CN
End Type	Sealed
Bore Type	Parallel
Bearing Type	Double Row Angular Contact Ball
Cage Material	Steel
Race Width	14mm
Static Load Rating	4.3kN
Contact Angle	32°

Key Features

This bearing features a double row design with two rubber seals for contamination protection.
It has a contact angle of 32°, improving rigidity and load support capabilities.
The 10 mm inside diameter and 30 mm outside diameter allow for precise fitment.
The 14 mm race width offers robust load capacity and stability during operation.
Constructed from stainless steel balls and a steel cage for durability and longevity.
Suitable for high speed applications requiring radial and axial load handling.
The sealed ends preserve essential lubrication, extending service intervals.
Easy installation as only one bearing is required instead of a bearing pair.

Product Description

RS PRO 3200-B-2RSR-TV Double Row Angular Contact Ball Bearing offers advanced performance for industrial, manufacturing, agricultural, and automotive applications demanding high accuracy and load capacity. With a 10 mm inside diameter, 30 mm outside diameter, and 14 mm race width, this bearing delivers reliable operation in demanding rotary systems.

Featuring precision stainless steel balls and a robust steel cage, this bearing supports radial and axial loads due to its 32° contact angle design. The double row configuration enhances rigidity and allows handling of loads in both directions, ensuring long-lasting service and quieter, cooler running conditions.

The inclusion of sealed ends prevents contamination ingress and maintains lubrication integrity, reducing maintenance requirements. Installation efficiency is improved as only a single bearing is needed instead of a matched pair, simplifying assembly and lowering costs.

This bearing belongs to the RS PRO 2 Light series, designed for high-speed performance with static load rating of 4.3 kN. Its parallel bore type and CN internal clearance specify exact mechanical tolerances, making it suitable for precision machinery.

This bearing's double row angular contact design supports combined radial and axial loads simultaneously. The stainless steel balls and steel cage construction ensure durability in harsh environments. Sealed end types provide enhanced protection from dust and moisture contamination.

The 32° contact angle improves bearing rigidity and load distribution. Typical applications include agriculture machinery, industrial manufacturing equipment, automotive components, and materials handling systems. Designed for longer maintenance intervals with quieter and cooler operation.

RS PRO brand guarantees high quality and reliability tested to industry standards. Easy and cost-effective installation by requiring only one bearing unit. Explore more RS PRO Ball Bearings and rotary bearing units suited for various industrial power transmission and mechanical system needs on EnvMart.
