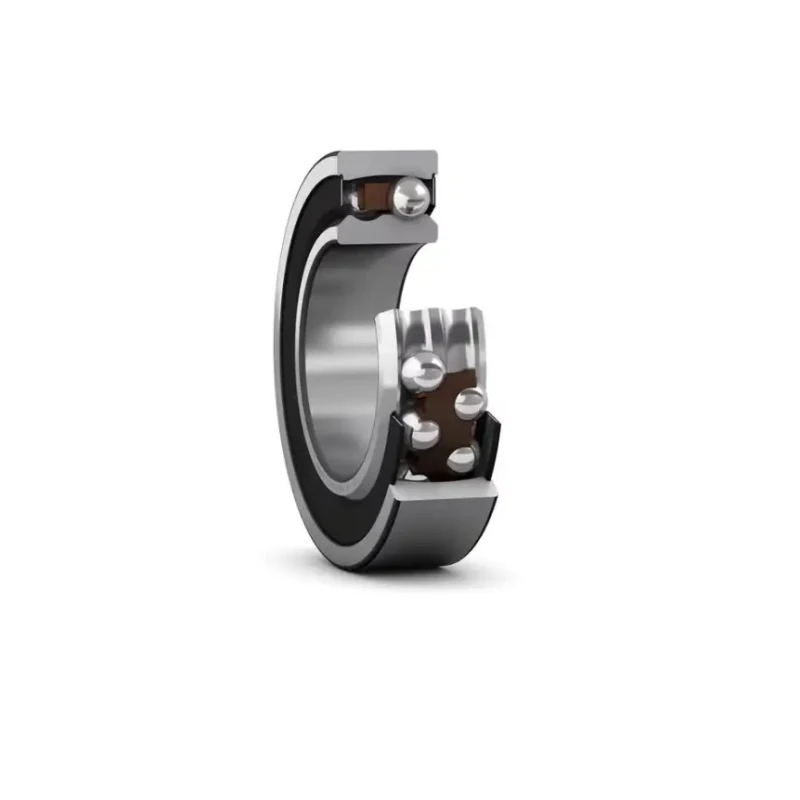

SKF 2 Row Self-Aligning Ball Bearing 30 mm Inside Diameter 72 mm Outside Diameter 2306 E-2RS1TN9
Specifications
| Country of Origin | India |
|---|---|
| Brand | SKF |
| Model | 2306 E-2RS1TN9 |
| Series | 2306 E-2RS1TN9 |
| Outside diameter | 72mm |
| Inside Diameter | 30mm |
| Number of Rows | 2 |
| Ball Material | Steel |
| Limiting Speed | 6700rpm |
| Internal Clearance | CN |
| Bore Type | Taper |
| Bearing Type | Self-Aligning |
| Cage Material | Non-Metallic |
| Race Width | 27mm |
| Static Load Rating | 6.8kN |
| Race Type | Plain |
| Dynamic Load Rating | 22.5kN |
Key Features
- Designed to compensate for misalignment in mechanical assemblies.
- Dual sealing arrangement protects bearing from contaminants.
- Cylindrical taper bore enables versatile installation options.
- Two-row design provides enhanced load capacity and stability.
- Constructed with steel balls and non-metallic cage for durability.
- Capable of handling dynamic loads up to 22.5 kN and static loads up to 6.8 kN.
- Suitable for use in automation systems and electric motor applications.
- Features a limiting speed of 6700 rpm for high-performance operation.
Product Description
SKF 2306 E-2RS1TN9 is a premium 2 Row Self-Aligning Ball Bearing featuring a 30 mm inside diameter and 72 mm outside diameter, engineered for demanding industrial and mechanical applications. This bearing design compensates for misalignments within assemblies, enhancing operational reliability across diverse equipment.
The bearing utilizes steel balls and a non-metallic cage material combined with a dual sealing arrangement to prevent ingress of contaminants, thereby safeguarding lubrication and extending service life. Its cylindrical taper bore type facilitates flexible mounting options in various machine setups.
Designed to withstand dynamic load ratings up to 22.5 kN and static load ratings of 6.8 kN, this 2-row self-aligning bearing delivers superior load distribution and increased stability compared to single-row variants. With a limiting speed of 6700 rpm, it meets the rigorous demands of automation systems, electric motors, agricultural machinery, and conveyor belt applications.
The self-aligning feature is critical in applications where shaft deflection or initial misalignment is expected, ensuring smooth, vibration-free operation. The sealed configuration (Type 2RS1TN9) uses oil-resistant synthetic rubber seals reinforced with steel rings for robust protection under harsh conditions.
Designed to compensate for misalignment in assemblies. Dual seals protect against contaminants and grease leakage. Steel balls with a non-metallic cage enhance durability. Two-row configuration offers enhanced load capacity and stability.
Cylindrical taper bore allows for varied installation. Rated for dynamic loads of 22.5 kN and static loads of 6.8 kN. Limiting operational speed of 6700 rpm. Ideal for use in electric motors, agricultural machinery, conveyors, and automation equipment.
This SKF bearing is a reliable solution tailored for industrial, manufacturing, HVAC, and agricultural machinery sectors. Its robust construction and self-aligning capability ensure extended service life and optimal performance in demanding environments. Explore the complete range of rotary bearings and housing units on EnvMart for compatible components and accessories.
Explore more products in our Ball Bearings category.
