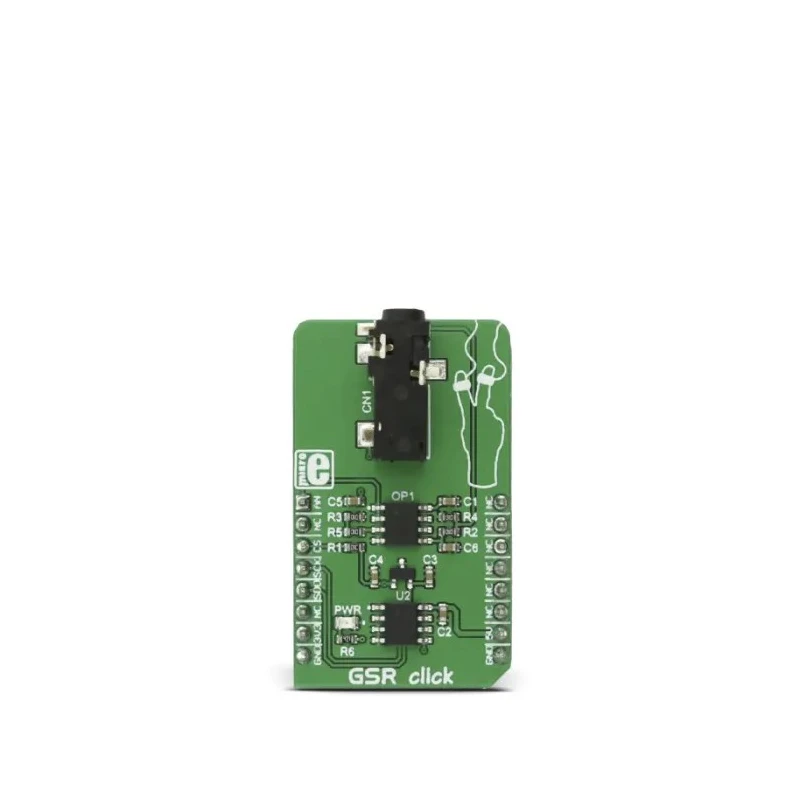

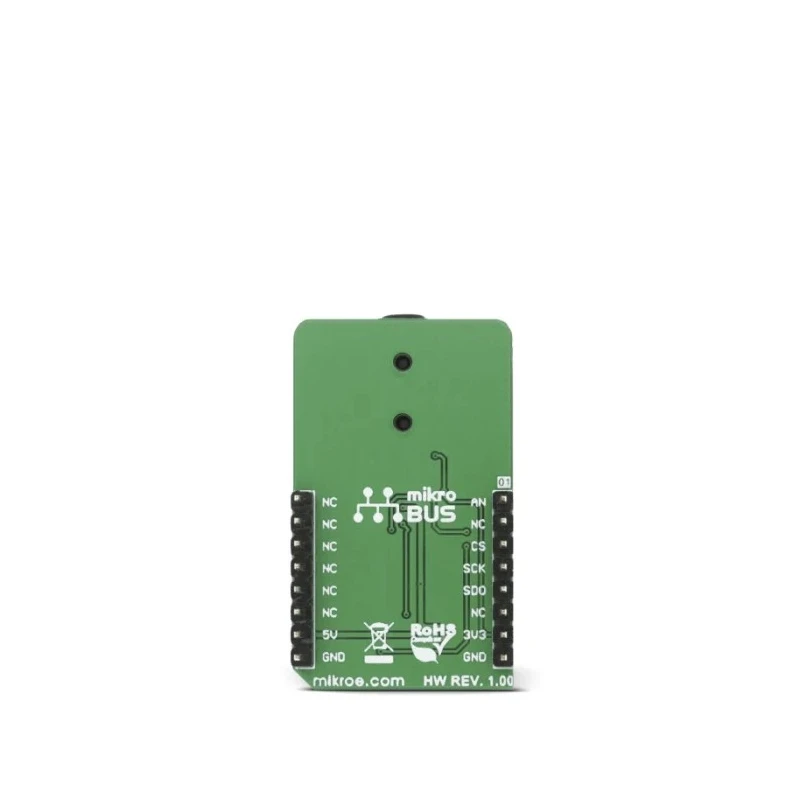

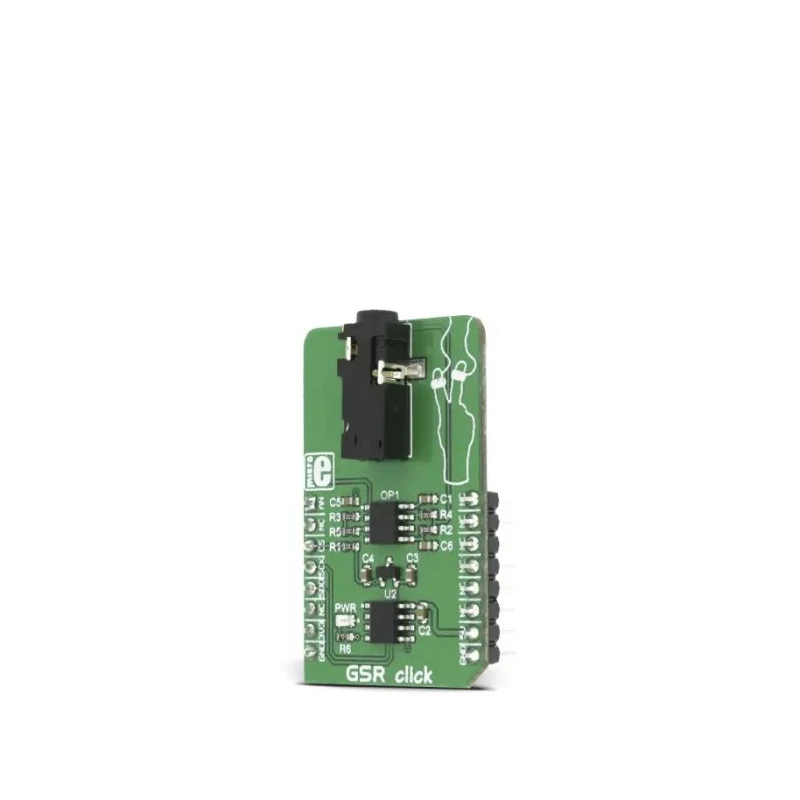

MikroElektronika Sensor Development Tool Measurement of the EDA Factor of the Human Body MIKROE-2860

The MikroElektronika MIKROE-2860 Sensor Development Tool is a comprehensive development kit designed specifically for the precise measurement of the electrodermal activity (EDA) factor of the human body. This development kit integrates advanced analog components with low offset voltage and bias current to ensure reliable and accurate sensor outputs.

Operating over a wide power supply voltage range of 2.5V to 6.0V and within an industrial temperature range from -40°C to +85°C, this sensor development tool supports robust operation in demanding environments. The rail-to-rail output and unity-gain stable design provide enhanced signal fidelity, critical for sensitive medical and scientific instrumentation tasks.

The device includes Chip Select capability compatible with MCP608, helping users to manage multiple input channels efficiently. It is available in single, dual, and quad packages to cater to diverse application needs, including high-impedance measurement scenarios such as strain gauges and medical diagnostic instruments.

This development kit comes complete with advanced software tools, including SPICE macro models and FilterLab® and Mindi™ Circuit Designer simulators, facilitating design validation and analog circuit development. Its compliance with RoHS standards confirms adherence to environmental and safety regulations.

The MikroElektronika MIKROE-2860 is ideal for industrial, medical, laboratory, and test equipment applications, where precise and stable analog measurement is required. This device enhances the development and testing process for engineers and researchers working on human body EDA measurement and related sensor technologies.

The kit features a low input offset voltage of 250 μV maximum. It operates with a power supply voltage range from 2.5V to 6.0V. The device maintains low input bias current of 80 pA at +85°C maximum. The quiescent current is low, at 25 μA maximum.

It supports rail-to-rail output and unity-gain stability for optimal signal accuracy. Chip Select capability supports MCP608 for interfacing. The kit is designed for industrial temperature range from -40°C to +85°C. Available in single, dual, and quad packages to suit development needs.

Includes SPICE macro models and FilterLab® and Mindi™ Circuit Designer for analog demonstration and evaluation. Applications include medical instruments, strain gauges, test equipment, and high-impedance applications. RoHS compliant, ensuring environmental safety.
