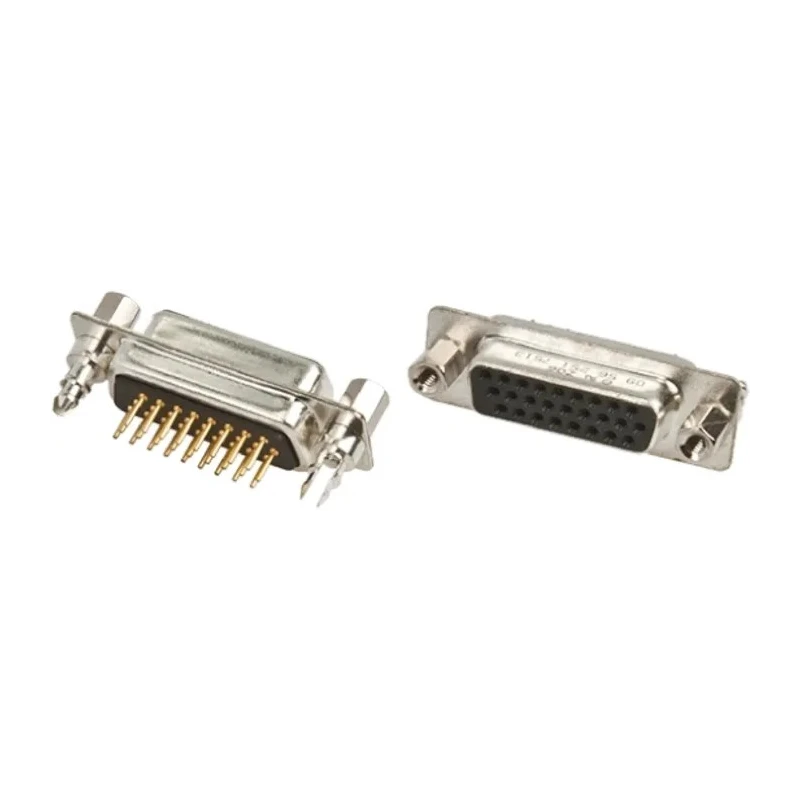

HARTING D-Sub Connector 26 Way Straight 2.29 mm Pitch Through Hole, Steel Housing, Gold Plated Contacts 09562517513

Free Delivery in India | Lowest Global Shipping Charges

HARTING D-Sub Connector 26 Way Straight 2.29 mm Pitch Through Hole, Steel Housing, Gold Plated Contacts 09562517513

Name: HARTING D-Sub Connector 26 Way Straight 2.29 mm Pitch Through Hole, Steel Housing, Gold Plated Contacts 09562517513
Brand: HARTING
SKU: 425675
Price: 20.22 USD
Availability: InStock



Category D-Sub Connector Brand HARTING Condition New

Specifications

Country of Origin	China
Voltage	1000V
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Steel
Contact Material	Copper Alloy
Series	0956
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pitch	2.29mm
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Female
Connector Type D	D-Sub
D-Sub Shell Size	DS-2
HARTING 0956 26 Way Straight 2.29 mm Pitch Through Hole D-Sub ConnectorBrand	HARTING

Key Features

The connector supports 26 contact points for high density signal transmission.
It features a 2.29 mm pitch suitable for compact PCB designs.
Constructed with a steel housing for durability and mechanical protection.
Gold plating on contacts ensures reliable conductivity and corrosion resistance.
Includes 4 to 40 UNC screw lock mounting hardware for secure installation.
Rated for operation up to 1000V and a maximum current of 2A per contact.
Operates reliably in temperatures from -55°C to 105°C.
Termination via solder pins designed for through hole mounting.

Product Description

HARTING 09562517513 is a high-density D-Sub Connector engineered for industrial and electronic applications requiring reliable and compact signal connectors. This 26-way connector features a straight orientation and through hole mount type suitable for PCB integration. The steel housing provides mechanical strength and EMI shielding, while gold plated copper alloy contacts deliver excellent conductivity and corrosion resistance, ensuring stable connections in harsh operating environments.

Rated for a maximum voltage of 1000V and a current of 2A, this connector performs within a wide temperature range from -55°C to 105°C, making it suitable for demanding industrial and manufacturing settings. It is mounted securely using 4 to 40 UNC screw locks that provide firm attachment and reduce vibration risks during operation.

The 2.29 mm pitch spacing between pins allows for a compact footprint while supporting high contact density exceeding standard D-Sub Connectors by 70%, enabling more connections within a smaller area. Termination is through solder pins compatible with common PCB assembly processes, simplifying integration.

This product is ideal for use in electronic components, power connectors, computing interfaces, automation systems, and control equipment within industrial manufacturing, laboratory setups, and telecommunications infrastructure. Its robust build quality and precise engineering reflect HARTING's commitment to performance and reliability.

The connector offers 26 contacts for high-density connectivity. Steel housing ensures durability and EMI shielding. Gold plated copper alloy contacts provide corrosion resistance and conductivity. Supports operating voltages up to 1000V and current up to 2A.

4 to 40 UNC screw lock hardware ensures secure mounting. Suitable temperature range from -55°C to 105°C. Through hole solder termination for PCB use. High-density design exceeds standard D-Sub contact capacity by 70%. Ideal for industrial, manufacturing, and electronic applications.

Manufactured in China with stringent quality standards. Explore more high-quality connectors and related components in the Electronics & Electricals category at EnvMart for your industrial and electronic assembly needs.
