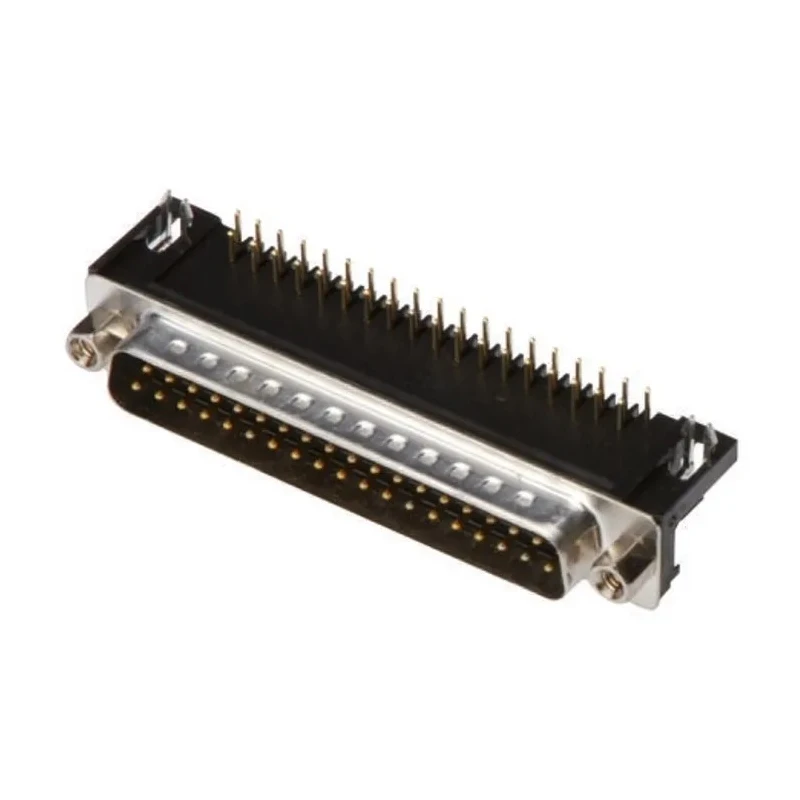

RS PRO 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T1

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T1

Name: RS PRO 25 Way Right Angle 2.77 mm Pitch Through Hole D-Sub Connector with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T1
Brand: RS PRO
SKU: 425368
Price: 20.22 USD
Availability: InStock



Category D-Sub Connector Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	RS PRO
Orientation	Right Angle
Current	3A
Model	A-DS 25 A/KG-T1
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DS
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold, Nickel
Number of Contacts	25
Contact Gender	Male
Connector Type D	D-Sub

Key Features

This connector supports a current rating of 3A for efficient power transmission.
The right angle orientation facilitates compact PCB mounting applications.
Constructed with polybutylene terephthalate housing material for durability.
Contact material is brass plated with gold and nickel for corrosion resistance.
Operates within a temperature range of -40°C to 105°C, suitable for diverse environments.
Termination type is solder, ensuring secure and stable electrical connections.
Designed to operate at a voltage rating of 250V as per application requirements.
Includes 4 to 40 UNC screw lock mounting hardware ensuring secure fastening.

Product Description

ASSMANN WSW A-DS 25 A/KG-T1 is a high-quality 25 Way Right Angle Through Hole D-Sub Connector, featuring a 2.77 mm pitch designed specifically for PCB mounting in electronic and industrial applications. The right angle design optimizes space on circuit boards and ensures easy integration into complex assemblies.

The connector’s housing is made from durable polybutylene terephthalate, ensuring resilience under mechanical stress and environmental conditions. Contacts are crafted from brass material and plated with gold and nickel to enhance conductivity and prevent corrosion, supporting a reliable current rating of 3A.

Rated for 250V operation and capable of functioning in extreme temperature ranges from -40°C up to 105°C, this connector is suited for demanding applications in industrial automation, machinery, instrumentation, and other electronic systems requiring robust continuous performance.

The termination style is solder, ensuring a firm and stable electrical connection to the PCB, while the 4 to 40 UNC screw lock hardware guarantees secure mounting and resistance to vibration or displacement during operation.

Provides dependable right angle connectivity on PCBs with 25 contacts. Gold and nickel plating improves contact lifespan and electrical performance. Wide temperature tolerance enhances versatility across environments. Solder termination facilitates efficient assembly and repair.

Secure screw lock mounting hardware ensures installation integrity. Suitable for industrial, manufacturing, and electronic component systems. Manufactured in China adhering to quality standards.

This high-performance ASSMANN WSW D-Sub Connector supports advanced electronic system assembly requirements. It is ideal for engineers and technicians engaged in electronic design, prototyping, and production who need reliable and compact connectors.
