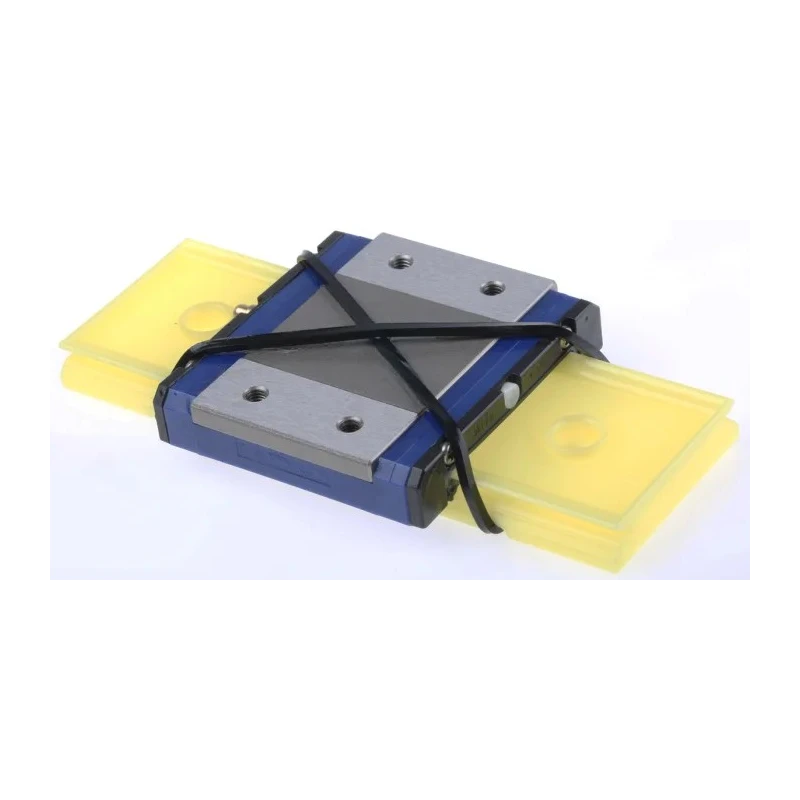

NSK Linear Guide Carriage 7600 N Dynamic Load, Carriage Length 56.6mm, Width 60mm, Acceptable Rail Width 15mm, Model PAE15ARS

NSK PAE15ARS Linear Guide Carriage is a high-quality mechanical component designed for precise linear motion control, with a dynamic load capacity of 7600 N. It features a carriage length of 56.6mm and a width of 60mm, suitable for integration with compatible linear guide rails featuring a 15mm acceptable rail width.

The carriage is part of the PE series and interchangeable with the LE series, offering versatility in mounting and load requirements.

Resin ball recirculation technology reduces dynamic friction and enhances the smoothness of motion while lowering noise during operation. The carriage body benefits from corrosion-resistant martensite stainless steel construction, ensuring longevity and reliability in demanding industrial environments.

A retainer mechanism securely holds balls in place when the carriage is removed from the rails, preventing loss and aiding maintenance. The ball slide is approximately 20% lighter than conventional counterparts due to the use of resin components, reducing the load on mechanical systems.

This Linear Guide Carriage exhibits advanced dust-proofing and low dust generation, making it suitable for clean environments such as semiconductor manufacturing, measuring instruments, medical devices, and office automation systems.

The carriage is interchangeable with PE and LE series for mounting dimension and load rating compatibility. Incorporates resin ball recirculation for smooth motion and reduced friction. Constructed with high corrosion-resistant martensite stainless steel standard.

Retainer prevents ball loss during carriage removal from rails. Ball slide is lighter by about 20% compared to conventional models. Features enhanced dust-proofing and low dust generation properties. Compatible with a range of common rail sizes (acceptable rail width 15mm).

Typical applications include semiconductor manufacturing, measuring instruments, medical equipment, and office automation. Rails and carriages are sold separately. Explore advanced linear motion components and precision mechanical parts in the Industrial Tools & Equipment category at EnvMart for your manufacturing and automation needs.
