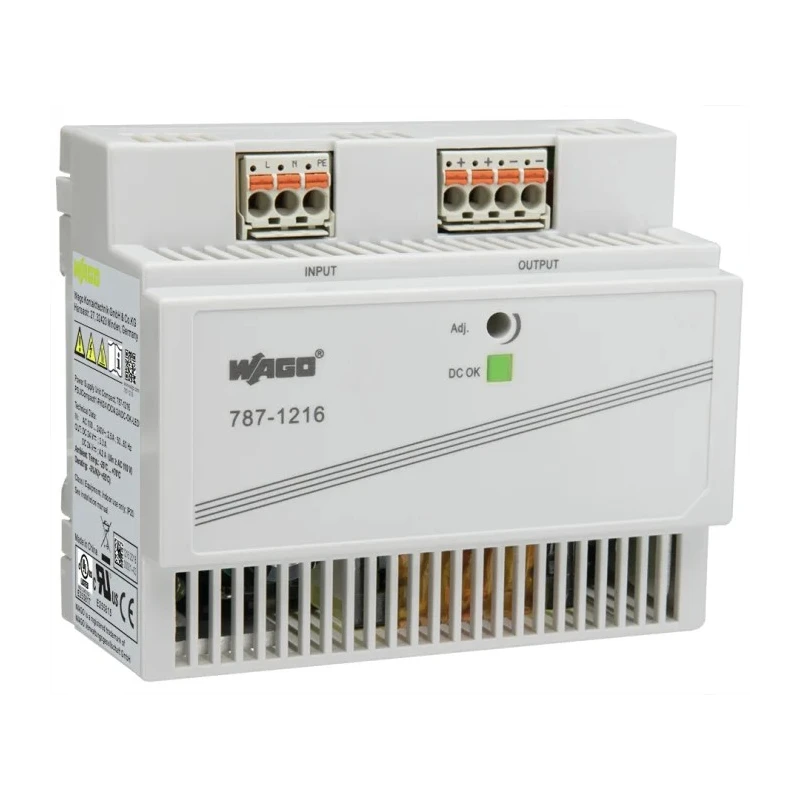

WAGO Switched Mode DIN Rail Power Supply 230V Input 24V DC Output 4.2A 100W 787-1216

Free Delivery in India | Lowest Global Shipping Charges

WAGO Switched Mode DIN Rail Power Supply 230V Input 24V DC Output 4.2A 100W 787-1216

Name: WAGO Switched Mode DIN Rail Power Supply 230V Input 24V DC Output 4.2A 100W 787-1216
Brand: Wago
SKU: 424379
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Wago Condition New

Specifications

Country of Origin	China
Brand	WAGO
Power	100W
Efficiency	90%
Height	90mm
Model	787-1216
Depth	56mm
IP Rating	IP20
Width	108mm
Series	787
Output Current	4.2A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	230V
Maximum Output Voltage	24V dc

Key Features

Provides electrically isolated SELV output voltage certified per EN 60335-1 and UL 60950-1 standards.
Equipped with pluggable picoMAX® connection technology enabling tool-free installation.
Single-phase power supply suitable for both parallel and series operation.
Features a green DC OK LED indicator for operational status monitoring.
Compact dimensions with 90mm height, 108mm width, and 56mm depth ideal for DIN-35 rail mounting.
Operates efficiently at 90% efficiency with IP20 ingress protection rating.
Designed for operating temperatures from -25°C to 70°C ensuring robust industrial performance.
Suitable for installation in distribution boxes and devices using screw mounts.

Product Description

WAGO 787-1216 is a switched mode DIN rail power supply designed for industrial and electrical applications requiring reliable DC power conversion. It features a 230V AC input and delivers a regulated 24V DC output with a maximum current of 4.2A, producing 100W power output, suitable for various automation and control systems.

This power supply provides an electrically isolated output voltage, meeting SELV safety requirements according to EN 60335-1 and UL 60950-1 standards, enhancing installation safety in commercial and industrial environments.

Equipped with pluggable picoMAX® connection technology, it allows tool-free wiring for ease of installation and maintenance. The device supports both parallel and series operation configurations, providing flexibility for system design and scalability.

Dimensions are compact and DIN-35 rail compatible, measuring 90mm in height, 108mm in width, and 56mm in depth, fitting standard electrical enclosures and distribution boards. The unit includes screw mounts to facilitate alternative installation methods in distribution boxes or devices.

Operating temperature ranges from -25°C to 70°C and an IP20 rating offers protection against solid objects, making it suitable for protected indoor industrial usage. The unit maintains high efficiency at 90%, reducing energy consumption and operating costs.

Electrically isolated SELV output voltage certified to EN 60335-1 and UL 60950-1 standards. Tool-free pluggable picoMAX® connection technology. Single output of 24V DC at maximum 4.2A current, 100W power capacity. Suitable for parallel and series operation to increase capacity or voltage.

Compact form factor for easy DIN-35 rail installation. IP20 ingress protection and robust operating temperature range. Green LED indicator for DC OK status monitoring. Screw mount installation for alternative mounting options.

This power supply is ideal for industrial automation, manufacturing control panels, HVAC systems, and electrical power distribution where reliable DC power is needed. It ensures consistent power delivery in commercial, laboratory, and manufacturing environments.

Browse the range of WAGO power supplies and related DIN rail accessories on EnvMart for comprehensive industrial power solutions.
