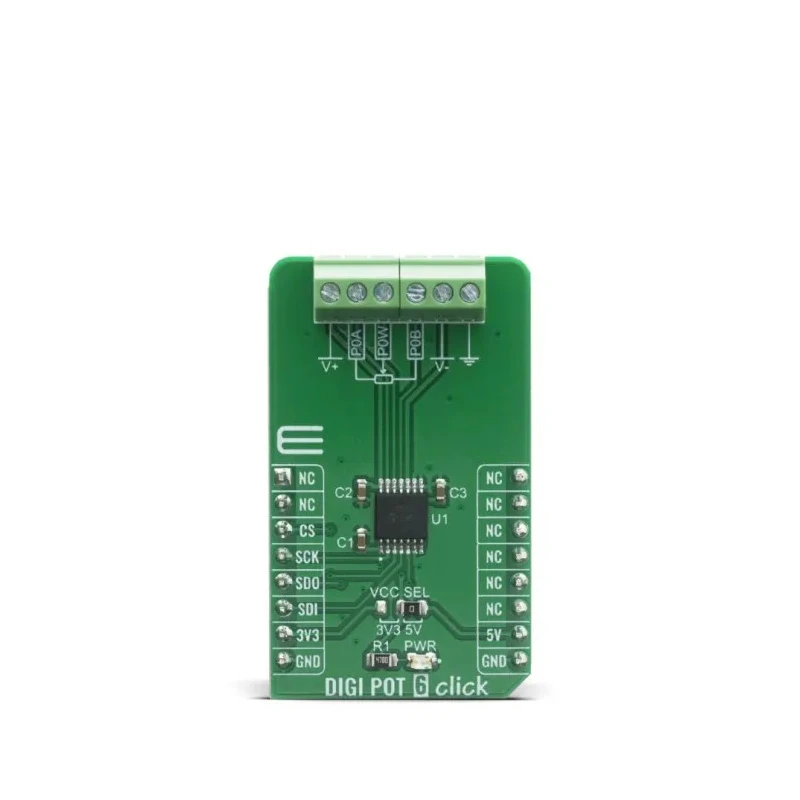

MikroElektronika Digi Pot 6 Click Instrumentation Amplifier Adapter Board for MCP41HV51 MIKROE-4110

The MikroElektronika MIKROE-4110 Digi Pot 6 Click is a precision instrumentation amplifier adapter board specifically designed to work with MCP41HV51 digital potentiometers. It features the MCP41HVX1 series devices equipped with dual power rails, allowing separate analogue and digital voltage supplies. This architecture permits high-voltage operation on the resistor network terminal pins, with the voltage range determined by the supplied V+ and V- voltages.

This development board supports a 7 or 8-bit single digital potentiometer with a maximum terminal voltage rating of ±18V (total 36V), ensuring reliable performance under demanding conditions. It uses the SPI serial communication protocol for efficient and precise control, coupled with low wiper resistance to minimize signal distortion.

Compatibility with the mikroBUS standard ensures effortless integration into existing embedded and educational platforms, making it suitable for rapid prototyping and development. The board has a compact Medium size form factor measuring 42.9 by 25.4 mm, providing flexibility in space-constrained applications. It can be powered either by 3.3V or 5V input voltages, broadening its usability.

This adapter board is an excellent choice for analogue development, laboratory setups, educational STEM kits, and engineers working on instrumentation amplifier-related designs. It supports precise digital potentiometer control with robust voltage tolerance and communication standards.

The board features the MCP41HVX1 family with dual power rails supporting analogue and digital voltages. It supports 7/8-bit single digital potentiometer with a maximum voltage of ±18V on terminals. Utilizes SPI serial interface for communication and has low wiper resistance.

Compatible with microbus standard for embedded system integration. Click board size is Medium (42.9 x 25.4 mm) for versatile deployment. Supports input voltages of 3.3V or 5V for flexible operations. Designed for analogue development tools, education, and prototyping contexts.
