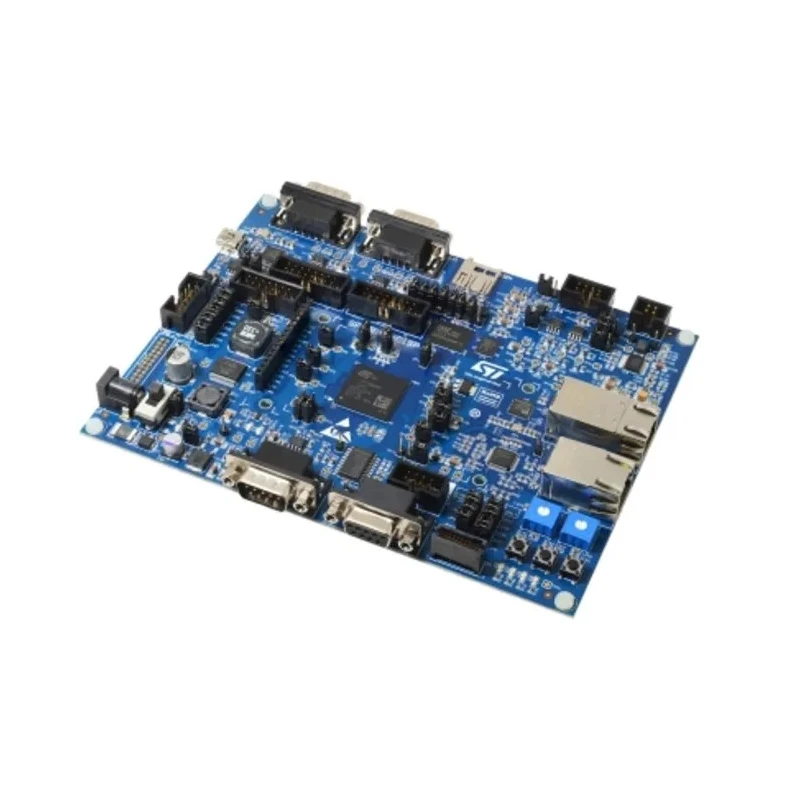

STMicroelectronics Microcontroller Development Tool SPC58 H Line Discovery Board Evaluation Kit 170x130mm 12 VDC SPC58NH-DISP

STMicroelectronics SPC58NH-DISP is a Microcontroller Development Tool, an evaluation board designed for advanced automotive MCU projects requiring high functional safety and robust performance. Featuring a 32-bit Power Architecture triple-core SPC58NH92C5 processor, this board includes a 10 MB flash memory in an FPBGA386 package, providing substantial computational power and memory capacity suited for gateway, body control, and battery management systems.

Designed in compliance with ISO26262 and ASIL-D standards, this discovery board supports the highest automotive safety levels, embedding a lockstep core for fault detection and enhanced reliability. The H Line chipset supports security mechanisms, high operating temperature tolerance, and extensive on-chip memory management including Over-the-Air software updates to facilitate secure in-field upgrades.

The board integrates multiple communication protocols essential for automotive and industrial networks, such as two Ethernet ports supporting 10/100 Mbps and 1 Gbps speeds, three FD-CAN channels, two FlexRay channels, one LIN channel, and UART interfaces, enabling comprehensive connectivity and diagnostics.

For memory expansion, the board offers OctalSPI interface compatible with HyperFlash and HyperRam devices, as well as eMMC and microSD sockets for large data file storage requirements. Debugging is simplified with a standard JTAG port, alongside pushbuttons and user LEDs for status indication and control. A connector for a 2.8-inch TFT-LCD module (model TJCTM24028-SPI) allows HMI customization, enhancing user interaction during development (display module sold separately).

Powered by a 12 VDC external supply, the compact form factor of 170 x 130 mm makes this discovery board practical for desktop use and embedded system prototyping. ST’s SPC5Studio Eclipse-based IDE supports full software lifecycle management, from design through deployment.

The board features a 32-bit Power Architecture triple core SPC58NH92C5 processor with 10 MB flash memory in FPBGA386 package. Compliant with ISO26262 and ASIL-D standards ensuring automotive safety integrity. Supports multiple communication interfaces including 10/100 Mbps and 1 Gbps Ethernet, 3 FD-CAN channels, FlexRay, LIN, and UART ports.

Includes OctalSPI interface for HyperFlash and HyperRam memory, and an eMMC interface plus microSD port for extensive data storage. Equipped with 3 push buttons, 4 user LEDs, reset button and connector for optional 2.8-inch TFT-LCD module (display not included).

Powered by external 12 VDC supply suitable for rapid plug and play deployment. Compact board with dimensions of 170x130 mm optimized for functional evaluation and rapid prototyping.

This development tool is ideal for industrial, automotive, and embedded control applications requiring functional safety, secure firmware management, and flexible interfaces. Discover more advanced Microcontroller Development Tools at EnvMart for your embedded systems projects.
