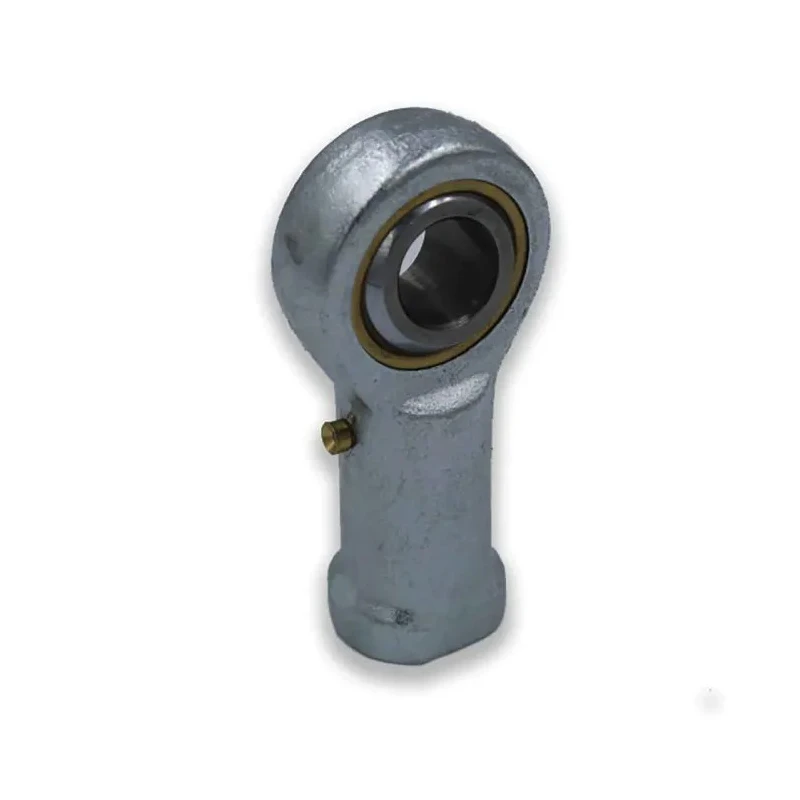

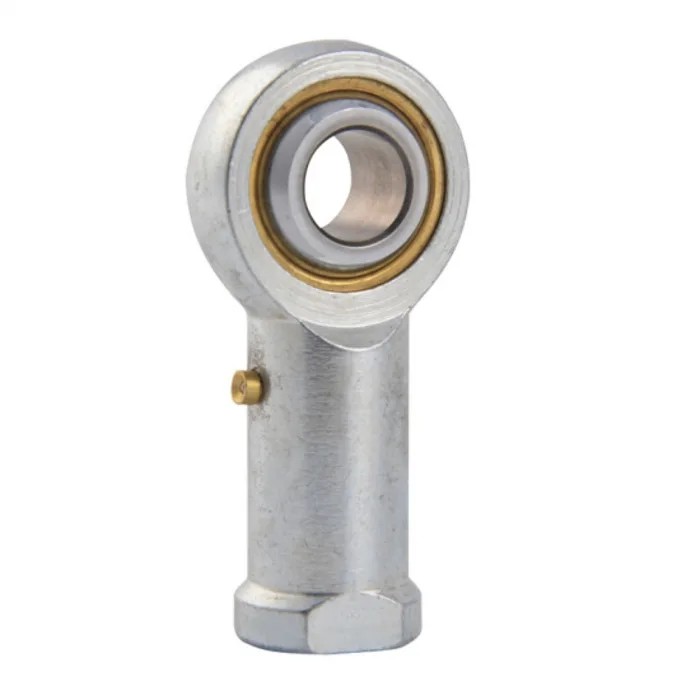

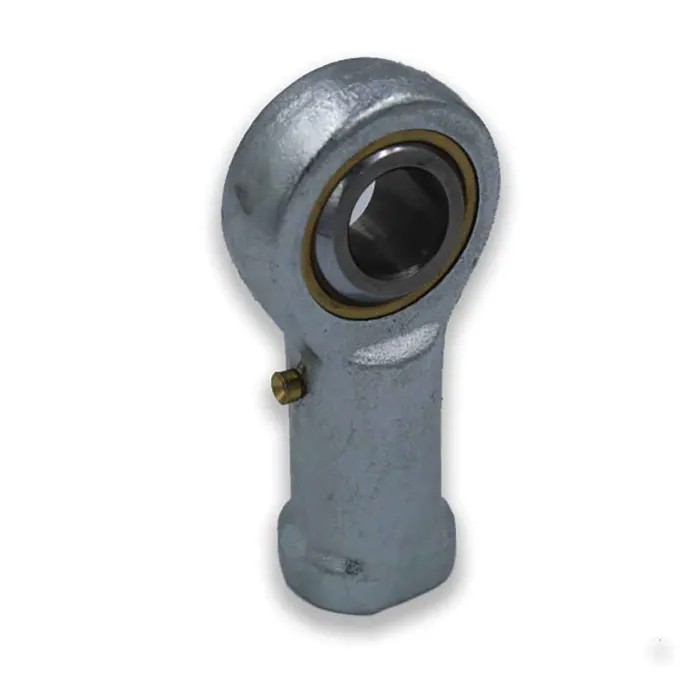

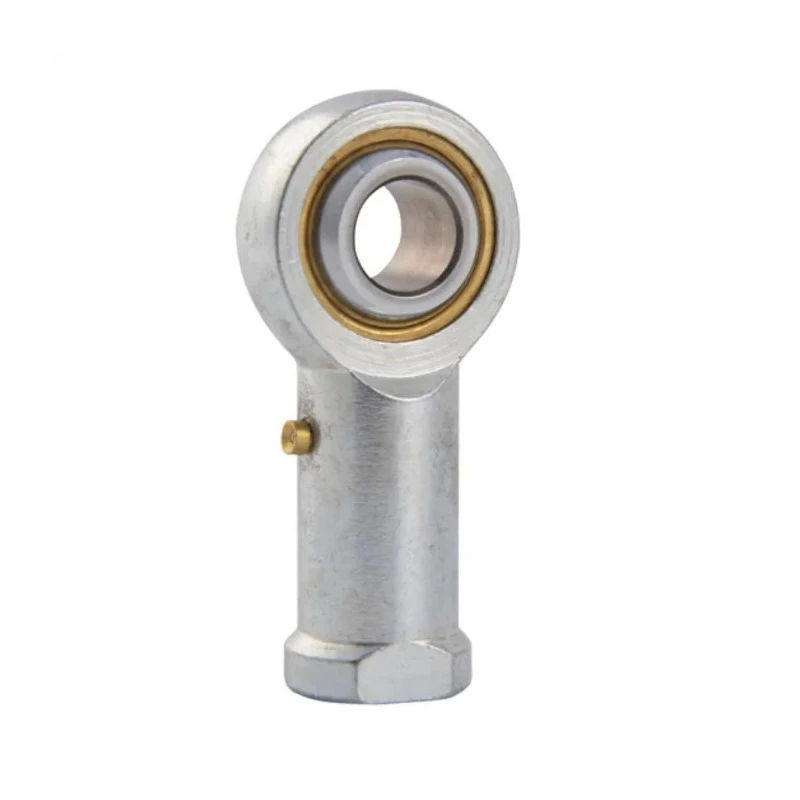

LDK Carbon Steel Rod End Female 12.7mm Bore 15kN Dynamic Load 31.7kN Static Load PHSB8L

LDK PHSB8L Carbon Steel Rod End is a high-quality mechanical component designed for precision rotary bearing applications requiring robust load handling capabilities. Featuring a female connection with a 12.7mm bore, this rod end supports dynamic loads up to 15kN and static loads up to 31.7kN, making it ideal for demanding industrial, manufacturing, and mechanical systems.

The ball component is crafted from AISI 52100 bearing steel, heat treated to achieve a hardness of at least HRC56. It has been precision ground and polished, culminating in a hard chromium plating that provides excellent wear resistance and longevity.

The main body is fabricated from carbon steel, enhanced with clear zinc plating to resist corrosion and extend service life in harsh environments. The brass race ensures smooth motion, complemented by sliding contact surfaces made from durable steel and brass.

This rod end features a 1/2 inch bore and a 1/2 UNF left-hand thread female connection, allowing for secure and precise assembly in various machinery designs. Constructed from carbon steel with clear zinc plating for corrosion resistance.

Ball made from heat-treated AISI 52100 bearing steel with hard chromium plating. Brass race combined with steel/brass sliding contact surfaces. Female rod end with 12.7mm bore and 1/2 UNF left-hand thread. Supports dynamic loads of 15kN and static loads of 31.7kN.

Suitable for industrial, manufacturing, and mechanical rotary bearing applications. Manufactured in China ensuring consistent quality standards.

LDK products provide trusted reliability and performance in mechanical power transmission applications. Browse our Rotary Bearings & Housing Units category for more precision Rod Ends and related components to fit all industrial needs.
