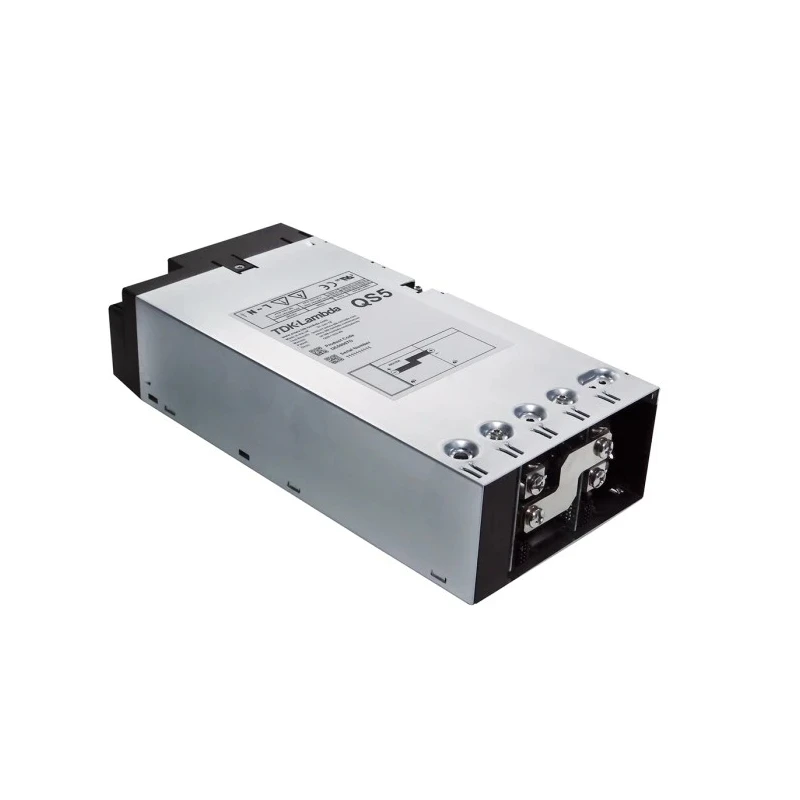

TDK-Lambda QS5-600-12 Switching Power Supply 12V DC, 600W, 90-264V AC Input, Chassis Mount QS5-600-12
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | TDK-Lambda |
| Power | 600W |
| Efficiency | 91% |
| Length | 270mm |
| Model | QS5-600-12 |
| Depth | 63.3mm |
| Width | 127mm |
| Mount Type | Chassis |
| Series | QS |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Maximum Output Voltage | 12V dc |
| SMPS Output Current | 50A |
| Minimum Input Voltage | 90V ac |
Key Features
- This chassis-mounted switching power supply features a single output providing 12V DC at 50A.
- Equipped with a low audible noise temperature-controlled fan for quiet operation.
- Operating temperature ranges from -20°C to 70°C, suitable for harsh industrial environments.
- High efficiency of 91% ensures optimal energy use and low heat generation.
- Complies with multiple international standards including CE, FCC Class B, and IEC/UL/CSA/EN 62368-1.
- Includes features for both medical and non-medical applications with full medical isolation and PMBus™ communication option.
- Ideal for industrial, medical, broadcast, communications, test, measurement, and renewable energy sectors.
Product Description
TDK-Lambda QS5-600-12 Switching Power Supply offers a reliable 600W output at 12V DC with a wide universal AC input voltage range from 90V to 264V, designed for chassis mounting. This single-output power supply operates efficiently with 91% efficiency and 50A output current, making it suitable for diverse applications.
The product features a low noise temperature-controlled fan minimizing audible disturbances, ensuring quiet operation in sensitive environments. It supports industrial and medical-grade applications by providing full medical isolation with 1x MoPP input to ground, 2x MoPP input to output, and 1x MoPP output to ground isolation, enhancing safety and compliance.
Designed for robust performance, it operates within a temperature range of -20°C to 70°C, meeting the needs of demanding industrial and laboratory environments. Its compact size of 270mm length, 127mm width, and 63.3mm depth facilitates easy integration into equipment and systems with limited space.
The QS series includes dual or single fusing options and PMBus™ communication capabilities for advanced monitoring and control, aiding in precise power management for test & measurement, broadcast, communications, and renewable energy systems.
Certified to multiple international standards such as CE, FCC Class B, EN 61000 series, IEC/UL/CSA/EN 62368-1, and VCCI-B, this power supply ensures regulatory compliance worldwide.
This chassis mounted power supply offers a reliable 12V DC output at 600W power capacity. Operates with high efficiency of 91% to minimize energy loss. Features low audible noise through a temperature-controlled fan. Supports universal AC input voltage ranging from 90V to 264V AC.
Meets rigorous industrial and medical isolation standards with full medical isolation. Equipped with PMBus™ communication for enhanced power management. Operates safely between -20°C and 70°C in diverse environments. Compact chassis mount with dimensions 270 x 127 x 63.3 mm.
Applications include industrial, medical, broadcast, communications, test & measurement, and renewable energy sectors. Explore more high-quality power supplies in the Electronics & Electricals category on EnvMart for dependable performance and advanced technical features.
