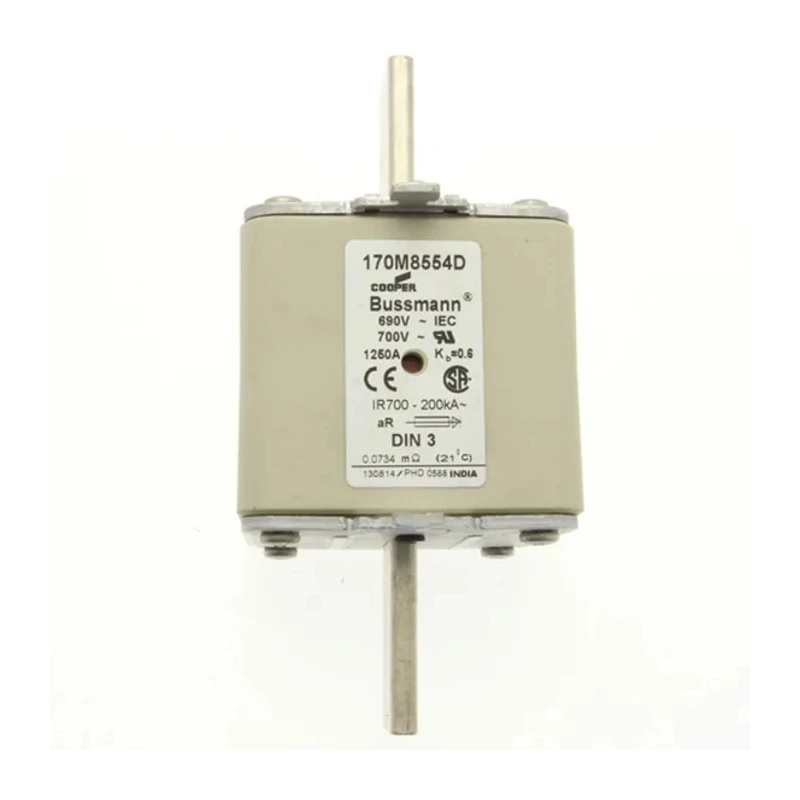

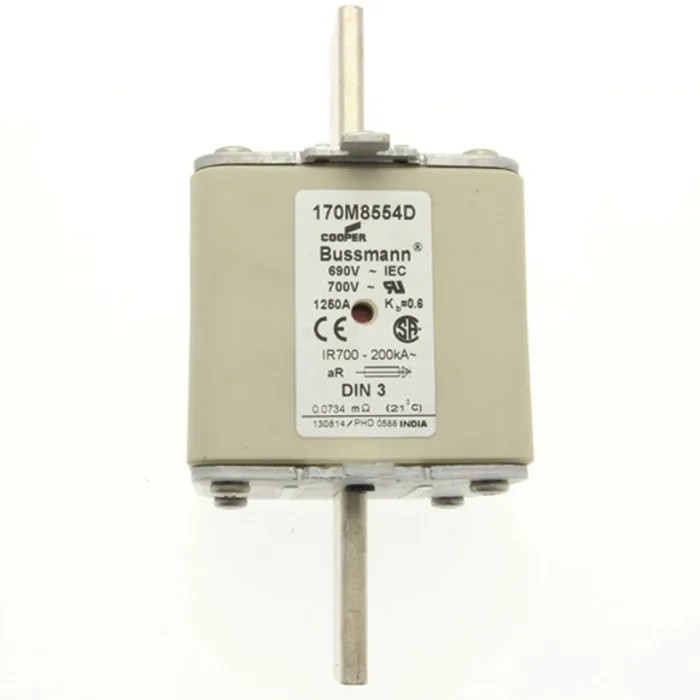

Eaton 1250A Centred Tag Fuse NH3 690V AC High Rupture Capacity Fast Acting Dual Indication 170M8554D

Eaton 170M8554D Centred Tag Fuse NH3 1250A is a specialized high-speed fuse designed for AC voltage up to 690V. It provides rapid circuit protection in industrial, electrical, and manufacturing applications requiring precise and dependable interruption capabilities.

This fuse features a blade type centred tag with a 32mm tag width, enabling secure and straightforward installation in fuse holders or panels. The dual indication characteristic allows clear visual identification of fuse status, while live gripping lugs offer enhanced safety during maintenance and operational checks.

Dimensions of Eaton 170M8554D are optimized for varied industrial uses, with length 87mm, overall length 150mm, height 68mm, and width 71mm, making it compatible with standard NH3 fuse mounting arrangements. The fuse has a high rupture capacity, ensuring it can safely interrupt high fault currents without damage.

Certified to UL, CSA, and CE standards, this fuse assures compliance with international safety and quality benchmarks. Its application category aR is suitable for protecting semiconductor devices and other sensitive components in automation systems.

Manufactured in India under Eaton’s Bussmann series, this fuse maintains consistent performance and quality as a new product. It is ideal for use in electrical distribution, industrial automation, and HVAC systems where reliable fuse protection is critical.

The fuse has a current rating of 1250A suitable for heavy-duty protection. Designed with a blade type centred tag with a 32mm tag width for easy mounting. Features dual indication and live gripping lugs for enhanced safety and status visibility.

Fuse size NH3 with high rupture capacity for reliable circuit interruption. Compact dimensions ensure compatibility: length 87mm, overall length 150mm, height 68mm, and width 71mm. Complies with UL, CSA, and CE standards ensuring global quality and performance.

Application category aR for semiconductor protection. Part of the Bussmann series, manufactured in India with new condition assurance.

For industrial and commercial electrical protection needs, Eaton 170M8554D offers dependable fault current interruption with fast acting response. Explore the Eaton Bussmann range at EnvMart for comprehensive fuse solutions.
