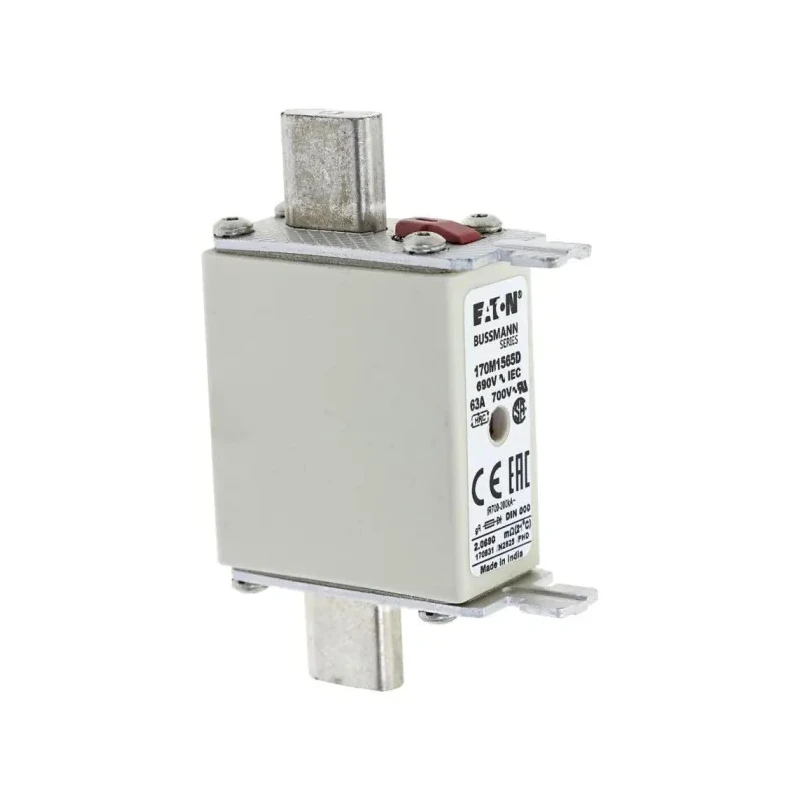

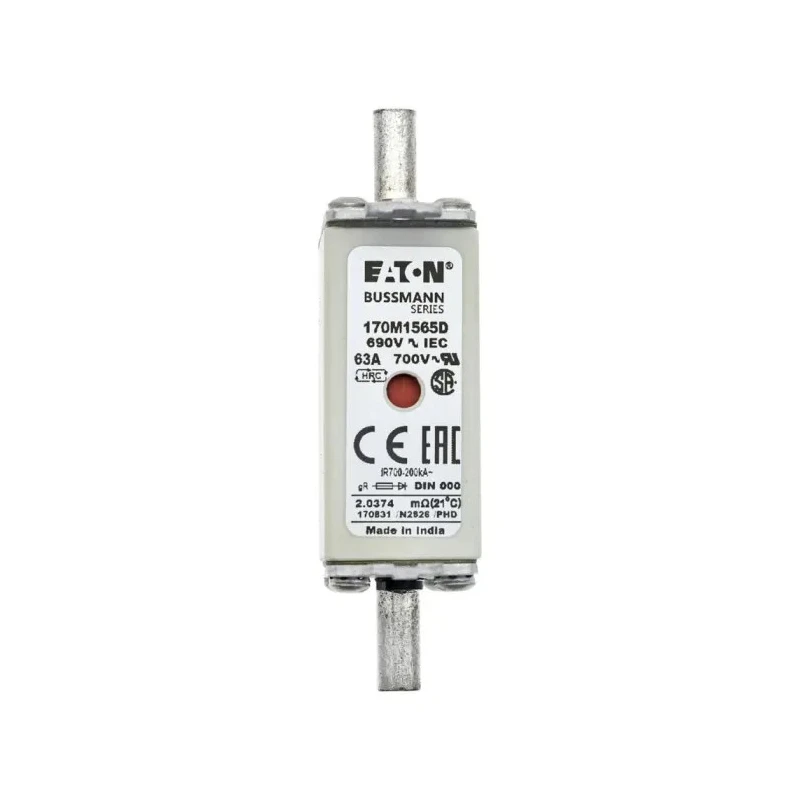

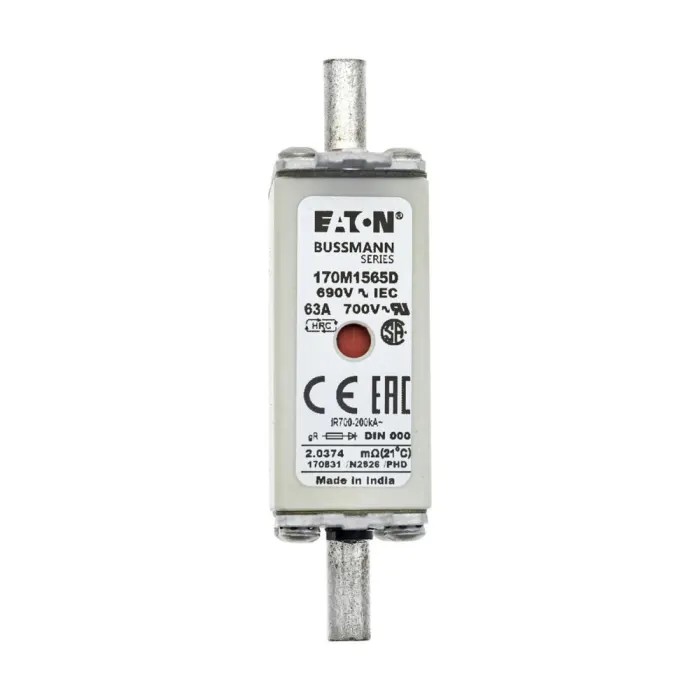

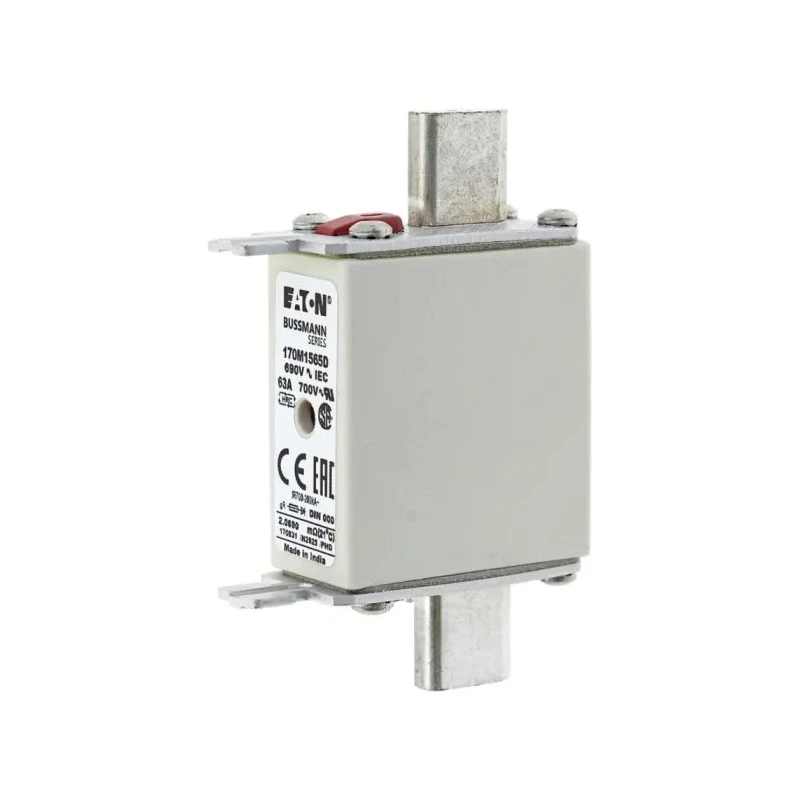

Eaton 63A Centred Tag Fuse Fast Acting Dual Indication 690V NH000 NH000

Free Delivery in India | Lowest Global Shipping Charges

Eaton 63A Centred Tag Fuse Fast Acting Dual Indication 690V NH000 NH000

Name: Eaton 63A Centred Tag Fuse Fast Acting Dual Indication 690V NH000 NH000
Brand: Eaton
SKU: 420917
Price: 52.4 USD
Availability: InStock



Category Tag Fuse Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	690V
Brand	Eaton
Height	49.7mm
Length	52mm
Model	NH000
Width	20.5mm
Overall Length	78.5mm
Current Rating	63A
Series	Bussmann
Fuse Type	HSDI
Standards/Approvals	CE, UL, CSA
Fuse Characteristics	Fast Acting, Dual Indication
Fuse Size	NH000
Tag Width	15mm
Application Category	gR
Tag Type	Blade

Key Features

Rated for 63A current capacity ensuring reliable overload protection.
Operates at a voltage of 690V complying with IEC and UL standards.
Fast acting fuse with dual indication for enhanced safety.
Constructed to DIN 43620 specifications for universal compatibility.
Compact dimensions with overall length 78.5mm and width 20.5mm for easy installation.
Blade type tag making it swift and secure to mount.
High breaking capacity of 200kA RMS minimises operational risk.
Suitable for use in automation and industrial electrical systems.

Product Description

Eaton NH000 Centred Tag Fuse 63A 690V (MPN 170M1565D) is a high-speed dual indication fuse-link built for demanding industrial electrical applications. It adheres to DIN 43620 standards, ensuring reliable and consistent performance in electrical protection circuits.

This fuse supports a current rating of 63A and a voltage rating of 690V (IEC/UL), suitable for robust industrial and automation environments. The fast acting fuse characteristics provide rapid protection against overloads and faults, enhancing the safety and longevity of electrical equipment.

The compact physical dimensions, including an overall length of approximately 78.5mm, width of 20.5mm, and height of 49.7mm, enable easy integration into existing electrical panels and fuse holders. Its blade-type centred tag design offers quick installation and dependable contact.

The fuse meets multiple certifications and approvals such as CE, UL, and CSA, affirming adherence to international safety standards. It falls into the gR application category, marking it suitable for general purpose protection against overloads and short circuits in circuits utilizing semiconductor devices.

Industrial and manufacturing sectors seeking reliable circuit protection will benefit from this Eaton centred tag fuse. It is ideal for protecting automation equipment, control panels, and other electrical installations requiring compliance with stringent industrial standards and rapid fault clearance.

63A current rating provides dependable electrical protection. Fast acting dual indication improves operational safety. Complies with IEC 60269 and multiple safety certifications. High breaking capacity of 200kA RMS reduces risk of damage.

Compact form factor allows installation in tight spaces. Blade type tag facilitates easy and secure mounting. Designed for industrial, automation, and electrical applications.

Eaton is a trusted brand in electrical protection solutions, and this NH000 fuse exemplifies their commitment to quality and safety. Explore more Eaton products and related Tag Fuses within the EnvMart catalog for complete industrial electrical protection requirements.
