Recom 5W 3.3V DC Single Output PCB Mount Switching Power Supply RAC05-3.3SK/277/W

Free Delivery in India | Lowest Global Shipping Charges

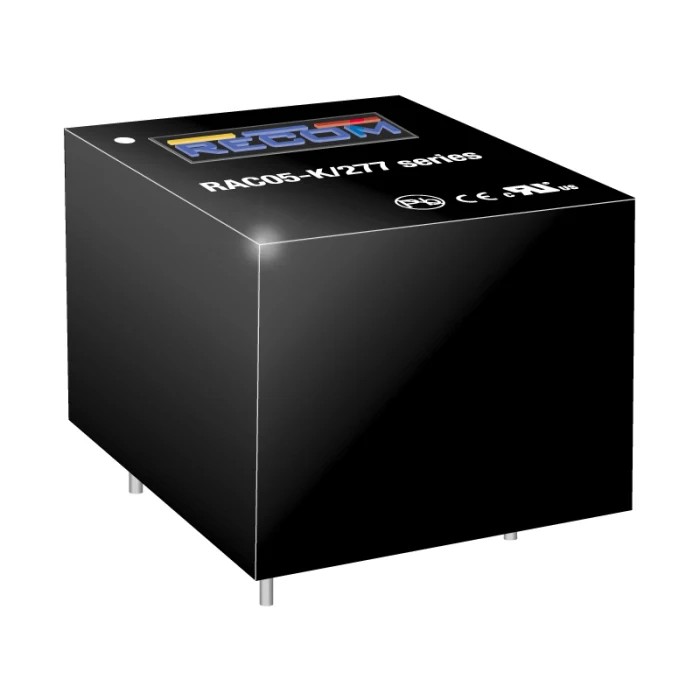

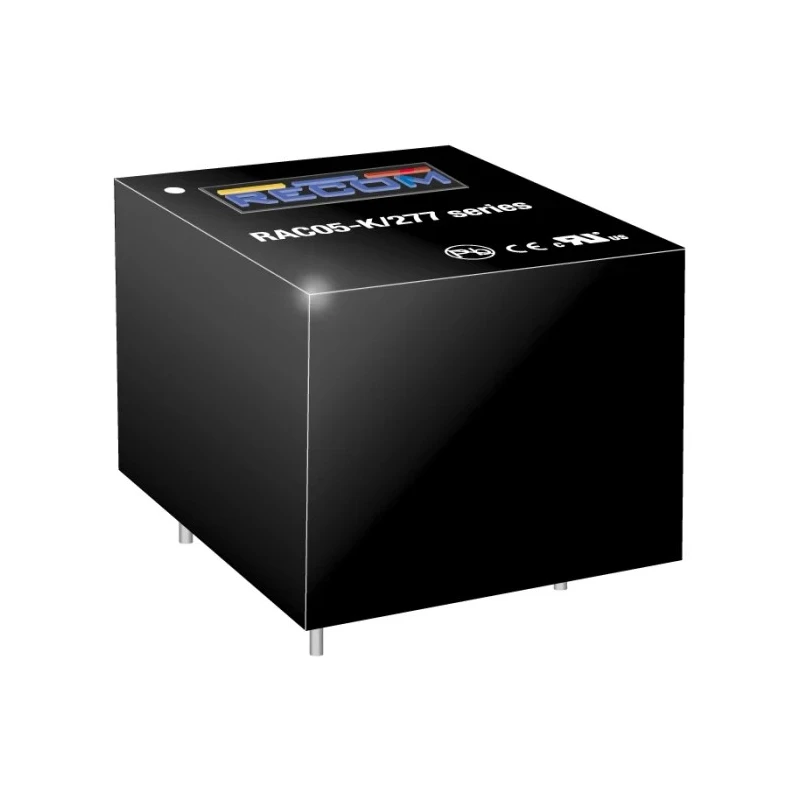

Recom 5W 3.3V DC Single Output PCB Mount Switching Power Supply RAC05-3.3SK/277/W

Name: Recom 5W 3.3V DC Single Output PCB Mount Switching Power Supply RAC05-3.3SK/277/W
Brand: Recom
SKU: 420886
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Recom Condition New

Specifications

Country of Origin	China
Brand	Recom
Power	5W
Efficiency	77%
Operating Temperature Range	-40°C to +90°C
Length	31.7mm
Model	RAC05-3.3SK/277/W
Depth	21.8mm
Gross Weight	37g
Width	26.7mm
Mount Type	PCB
Series	RAC05-K/277
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	3.3V dc
SMPS Output Current	1.51A
Minimum Input Voltage	85V ac

Key Features

This power supply provides a wide input voltage range from 85V to 264V AC.
It is designed for single output with 1.51A current capacity.
The operating temperature range extends from -40°C to 70°C.
Compact dimensions with length 31.7mm, width 26.7mm, and depth 21.8mm enable easy PCB integration.
Meets multiple standards including EN 61000 series and UL 60950-1 for safety and compatibility.
It delivers 77% efficiency over the entire load range ensuring energy saving.
Its encapsulated module design provides protection against overvoltage and overcurrent.
Suitable for automation, Industry 4.0, IoT, household, and smart building applications.

Product Description

Recom RAC05-3.3SK/277/W switching power supply is a compact 5-watt AC/DC power module designed to deliver a maximum output voltage of 3.3V DC with a single output at 1.51A current capacity. Featuring a robust PCB mount design, this power supply supports a wide input voltage range from 85V AC to 264V AC, suitable for worldwide enhanced mains input conditions.

This power supply operates efficiently across an extended temperature range from -40°C up to 70°C, ensuring reliable performance even in harsh industrial environments. Its compact dimensions (31.7mm length, 26.7mm width, 21.8mm depth) make it ideal for integration on printed circuit boards in automation, Industry 4.0, IoT devices, and smart building applications.

The RAC05-3.3SK/277/W complies with numerous international standards including EN 61000 series EMC standards, CAN/CSA C22.2 No. 60950-1-07, UL 60950-1, and is RoHS compliant, confirming its safety and environmental friendliness. The encapsulated module construction provides protection against overvoltage and overcurrent, improving durability and operational safety.

Delivering 77% efficiency over the full load range, this power supply supports energy-saving designs. Its mounting type is PCB, enabling straightforward installation in various electronics and control systems. Weighing just 37 grams, it offers a lightweight and efficient power solution.

This power supply provides a wide input voltage range from 85V to 264V AC. It is designed for single output with 1.51A current capacity. The operating temperature range extends from -40°C to 70°C. Compact dimensions with length 31.7mm, width 26.7mm, and depth 21.8mm enable easy PCB integration.

Meets multiple standards including EN 61000 series and UL 60950-1 for safety and compatibility. It delivers 77% efficiency over the entire load range ensuring energy saving. Its encapsulated module design provides protection against overvoltage and overcurrent.

Suitable for automation, Industry 4.0, IoT, household, and smart building applications. Made in China with high level of reliability and compliance to RoHS. Explore more products in the Switching Power Supplies category of Electronics & Electricals at EnvMart for comprehensive power solutions.
