Molex Right Angle Surface Mount Female 1 Port USB Type B USB Connector USB 2.0 105017-1001

Free Delivery in India | Lowest Global Shipping Charges

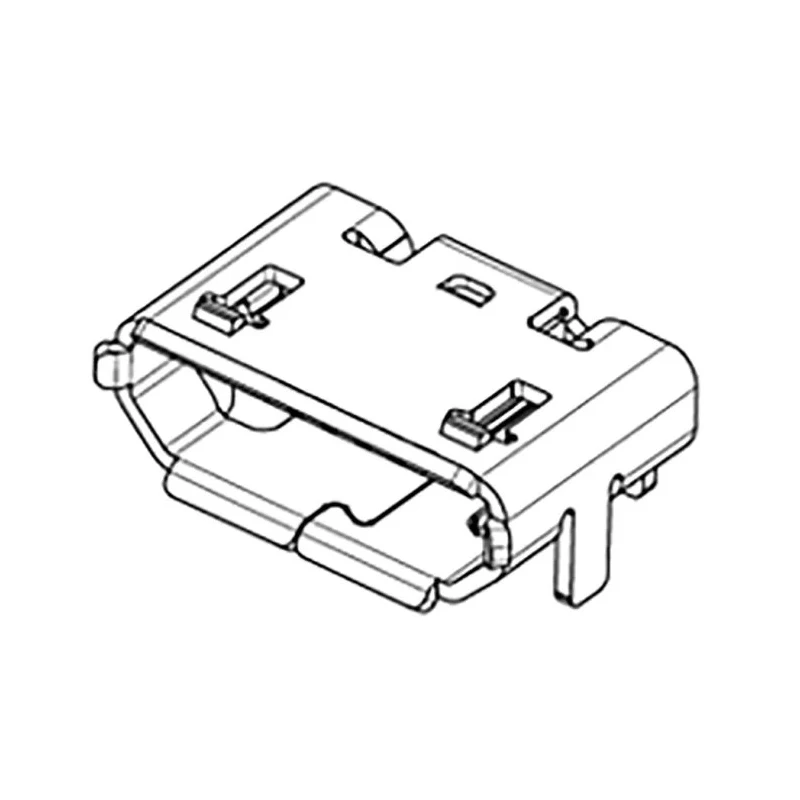

Molex Right Angle Surface Mount Female 1 Port USB Type B USB Connector USB 2.0 105017-1001

Name: Molex Right Angle Surface Mount Female 1 Port USB Type B USB Connector USB 2.0 105017-1001
Brand: Molex
SKU: 420682
Price: 0.98 USD
Availability: InStock



Category USB Connector Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	30V
Brand	Molex
Orientation	Right Angle
Current	1.8A
Mount Type	Surface
Contact Material	Copper Alloy
Series	1050
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
USB Type	USB Type B
Connector Gender	Female
USB Specification	USB 2.0

Key Features

Right angle orientation for efficient PCB layout.
Surface mount type suitable for micro-USB B receptacle applications.
Supports currents up to 1.8A ensuring reliable signal transmission.
Constructed with copper alloy contacts for durability.
Operates between -30°C and 85°C temperature range for versatile use.
Rated for 30V electrical voltage.
Termination by solder method for secure connections.
Manufactured in China and belongs to the Molex 1050 series.

Product Description

The Molex 105017-1001 is a high-quality USB Type B connector designed for surface mount applications with a right angle orientation and a single port configuration. This USB 2.0 compliant connector ensures high-performance connectivity suitable for electronic devices requiring reliable USB interfacing.

Its construction features durable copper alloy contacts to maintain excellent conductivity and withstand mechanical stress. The solder termination type allows for secure and robust PCB attachment during assembly.

Engineered to operate reliably in a wide temperature range from -30°C to 85°C, this connector supports currents of up to 1.8A and voltages up to 30V, making it suitable for a variety of industrial, laboratory, electronic manufacturing, and commercial applications involving USB connectivity.

The right angle design facilitates optimal space usage on printed circuit boards, especially in compact or constrained device layouts. While this unit does not carry specific hazardous area certifications or product standards approvals, it is a dependable component within Molex's 1050 series offerings.

Right angle orientation for efficient PCB layout. Surface mount type suitable for micro-USB B receptacle applications. Supports currents up to 1.8A ensuring reliable signal transmission. Constructed with copper alloy contacts for durability.

Operates between -30°C and 85°C temperature range for versatile use. Rated for 30V electrical voltage. Termination by solder method for secure connections. Manufactured in China and belongs to the Molex 1050 series.

This USB Type B connector is ideal for integration into electronic components assemblies for USB 2.0 connectivity, prevalent in data transfer and peripheral interfacing across industrial electronics, instrumentation, and consumer electronics. Explore the Molex product range for comprehensive electronic connector solutions at EnvMart.
