Weidmüller BL Series 15-Contact Pluggable Terminal Block, 5.08 mm Pitch, 1 Row, Right Angle, Screw Connection 1943710000

Free Delivery in India | Lowest Global Shipping Charges

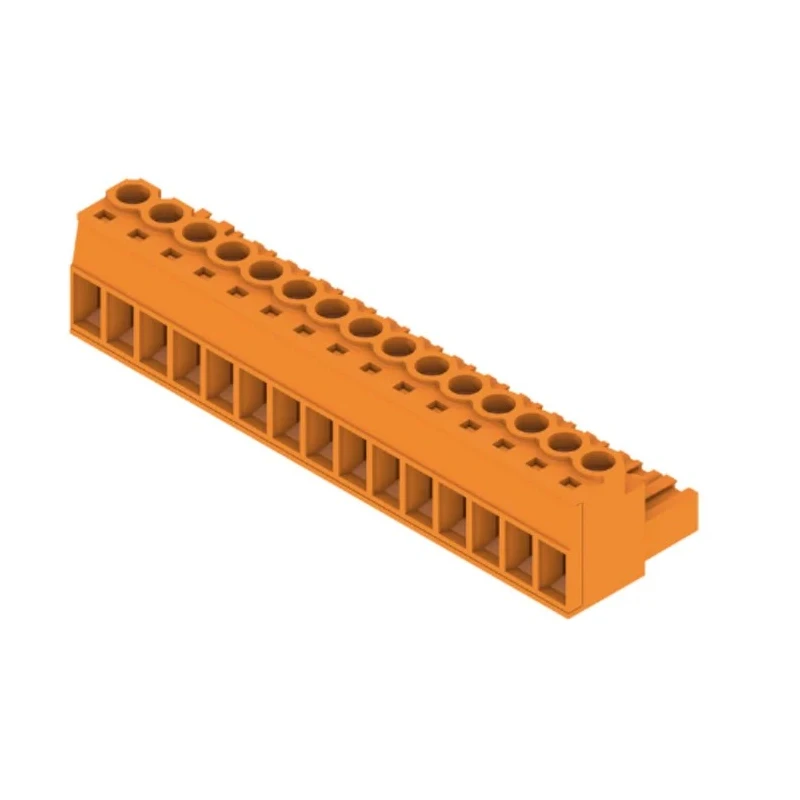

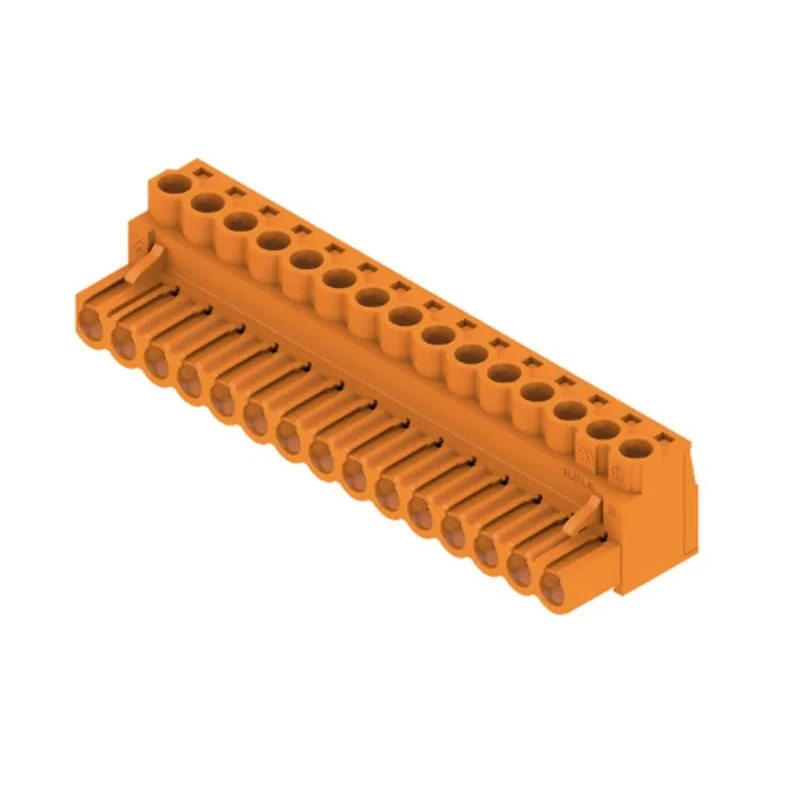

Weidmüller BL Series 15-Contact Pluggable Terminal Block, 5.08 mm Pitch, 1 Row, Right Angle, Screw Connection 1943710000

Name: Weidmüller BL Series 15-Contact Pluggable Terminal Block, 5.08 mm Pitch, 1 Row, Right Angle, Screw Connection 1943710000
Brand: Weidmuller
SKU: 420588
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Blocks Brand Weidmuller Condition New

Specifications

Country of Origin	Germany
Voltage	400V
Brand	Weidmüller
Colour	Orange
Orientation	Right Angle
Current	20A
Length	86.12mm
Depth	16mm
Width	20.1mm
Housing Material	Copper Alloy
Series	BL
Number of Rows	1
Pitch	5.08mm
Standards/Approvals	RoHS
Number of Contacts	15
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	4mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw

Key Features

The terminal block supports up to 20A current ensuring performance in high current environments.
Screw connection method provides secure and stable wire termination.
Constructed from copper alloy and PBT materials for durability and optimal conductivity.
Compact right angle orientation optimizes space usage in control panels and machinery.
Supports wire sizes from 26 AWG to 12 AWG accommodating diverse wiring requirements.
Rated for voltages up to 400V suitable for versatile electrical systems.
15 contacts in a single row enable multiple simultaneous connections.
Complies with RoHS standards ensuring environmental and safety compliance.

Product Description

Weidmüller 1943710000 BL Series Pluggable Terminal Block is engineered to deliver efficient and dependable electrical connections for industrial automation and electrical control systems. Featuring a 15-contact layout with a 5.08 mm pitch and a right angle configuration, this terminal block allows for compact mounting optimized for space-constrained environments.

Made from copper alloy housing paired with durable PBT insulation materials, it ensures excellent electrical conductivity and long service life. The screw termination method secures wires firmly, minimizing connection failures during operation. This terminal block supports wire sizes ranging from 0.2 mm² (26 AWG) up to 4 mm² (12 AWG), providing flexibility for various wiring applications.

Rated for up to 20A current and voltages of 300V to 400V, the device caters to demanding power requirements in control panels, machinery connectivity, and mechanical engineering systems. The through-hole mounting design allows easy integration into printed circuit boards or panel assemblies.

Applications for this Weidmüller terminal block include industrial automation systems, electrical control cabinets, and device interconnections in manufacturing setups. Its compliance with RoHS standards ensures that it meets relevant environmental regulations.

The terminal block features a right angle orientation to save space in installations. Designed to accommodate up to 15 simultaneous wire connections in one row. Material construction using copper alloy enhances conductivity and durability.

Screw type wire connection ensures secure and reliable terminations. Optimized for mounting on printed circuit boards with through-hole technology.

This robust and versatile pluggable terminal block is an essential component for professionals needing trustworthy electrical connectors that maintain integrity in industrial and electrical applications. Browse the Electronics & Electricals category at EnvMart for more Weidmüller products and related electrical components.
