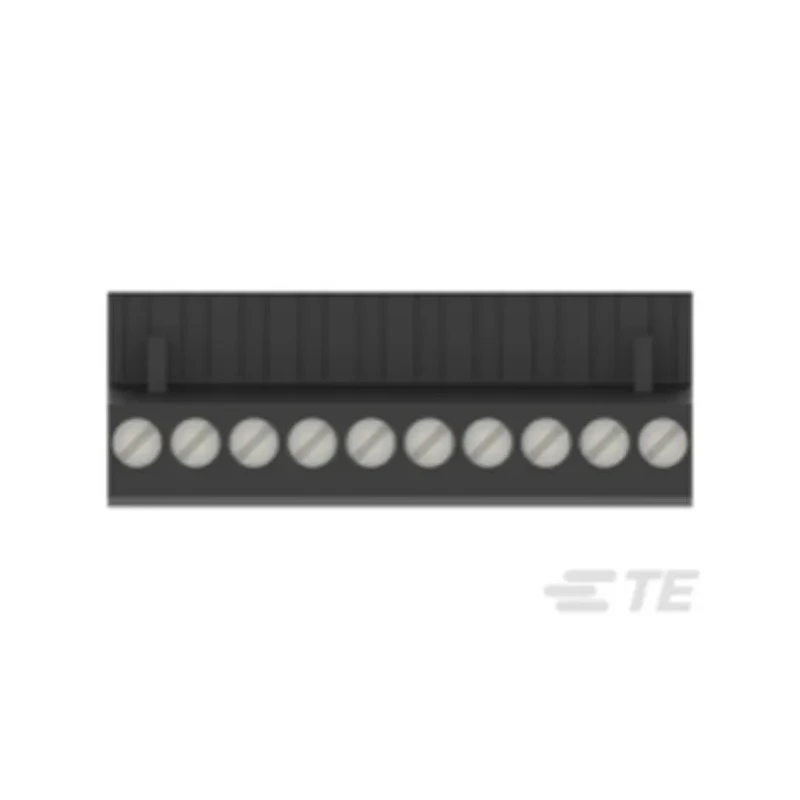

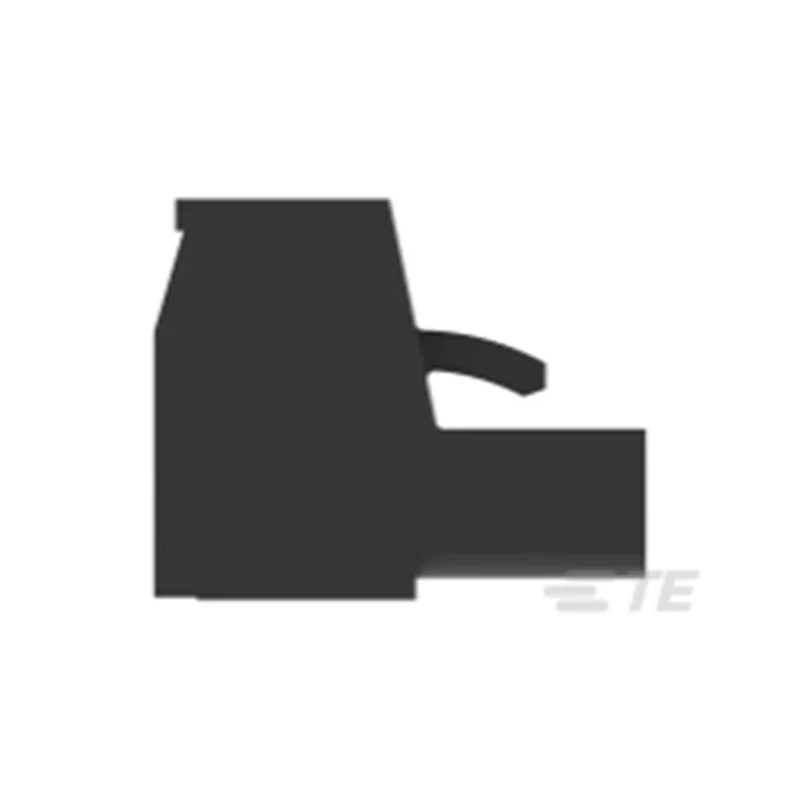

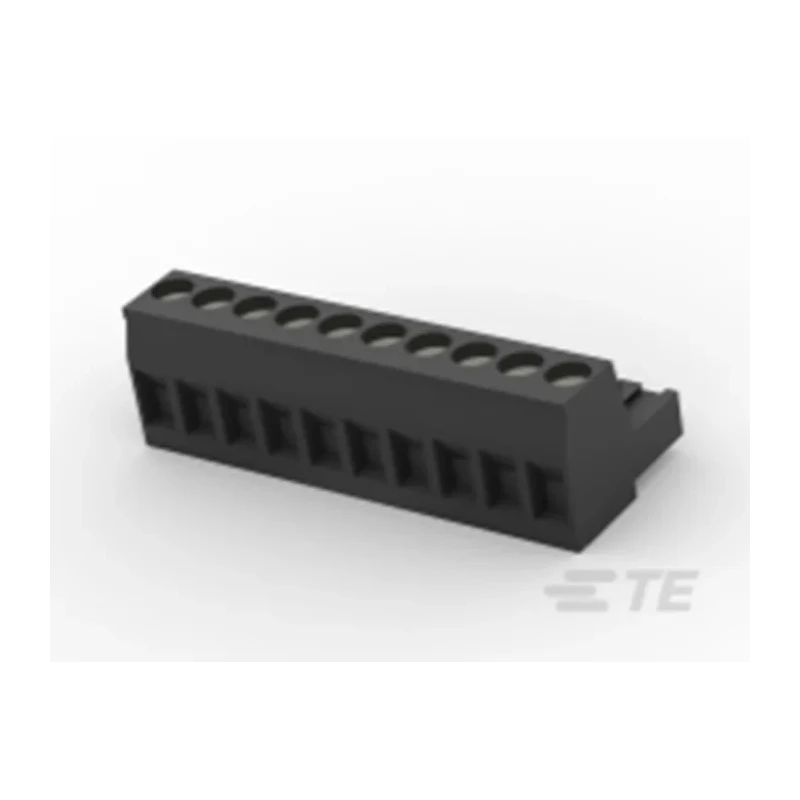

TE Connectivity TB Series Pluggable Terminal Block 10-Contact 5 mm Pitch 1 Row 300V AC 10A Female Screw 1-2305909-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity TB Series Pluggable Terminal Block 10-Contact 5 mm Pitch 1 Row 300V AC 10A Female Screw 1-2305909-0

Name: TE Connectivity TB Series Pluggable Terminal Block 10-Contact 5 mm Pitch 1 Row 300V AC 10A Female Screw 1-2305909-0
Brand: TE Connectivity
SKU: 420515
Price: 20.22 USD
Availability: InStock



Category Pluggable Terminal Blocks Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Voltage	300V ac
Brand	TE Connectivity
Colour	Black
Orientation	Straight
Current	10A
Length	50mm
Depth	15mm
Width	9.8mm
Housing Material	Thermoplastic
Series	TB
Number of Rows	1
Pitch	5mm
Standards/Approvals	RoHS
Number of Contacts	10
Connector Gender	Female
Minimum Wire Size mm²	0.13mm²
Maximum Wire Size mm²	3.31mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	26AWG
Wire Connection Method	Screw

Key Features

Designed for 300V AC voltage and supports a current rating of up to 10A.
Features female connector gender with screw-type wire connection method.
Supports wire sizes from 12 AWG to 26 AWG (0.13 mm² to 3.31 mm²).
Constructed with durable thermoplastic housing in black color.
Compact dimensions include length of 50 mm, width 9.8 mm, and depth 15 mm.
Meets RoHS standards for compliance and environmental safety.
Suitable for HVAC equipment, industrial controls, security systems, and industrial lighting applications.
Enables easy PCB mounting with retention features and surface mount headers for efficient assembly.

Product Description

TE Connectivity 1-2305909-0 TB Series pluggable terminal block is a high-quality connector designed for reliable electronic and industrial applications. It includes 10 contacts arranged in a single row with a 5 mm pitch, suitable for flexible wiring needs and efficient PCB integration using a screw connection method. Rated for 10A current at 300V AC, this female connector supports wire gauges from 12 AWG to 26 AWG (0.13 mm² to 3.31 mm²), housed in robust thermoplastic material ensuring electrical insulation and mechanical stability.

This terminal block features compact dimensions of 50 mm length, 9.8 mm width, and 15 mm depth, making it ideal for space-constrained assemblies. The black color housing provides a professional appearance and easy identification. The product complies with RoHS standards, endorsing its environmental safety for industrial and commercial use. Its straight orientation and retention features facilitate secure PCB attachment, enabling faster and more reliable manufacturing processes.

Common applications include HVAC equipment and controls, industrial automation, security systems, industrial lighting solutions, and elevator/escalator controls. The TB Series connectors from TE Connectivity support modern PCB assembly needs, including SMT compatibility, promoting reflow soldering for efficient production.

Designed for 10 contacts in a single row configuration. Supports wires from 12 AWG to 26 AWG with screw connection method. Rated for 10A current and 300V AC voltage. Durable thermoplastic housing in black color. Compact size with 50 mm length, 9.8 mm width, and 15 mm depth.

RoHS compliant for environmental safety. Retains secure PCB mounting with surface mount headers. Suitable for HVAC, industrial controls, security, lighting, and elevator systems.

This TE Connectivity pluggable terminal block 1-2305909-0 is engineered for demanding industrial and electronic component assembly tasks, ensuring reliable connections and streamlined PCB manufacturing processes. Explore a wide range of connectivity solutions within EnvMart for all industrial and electronic component requirements.
