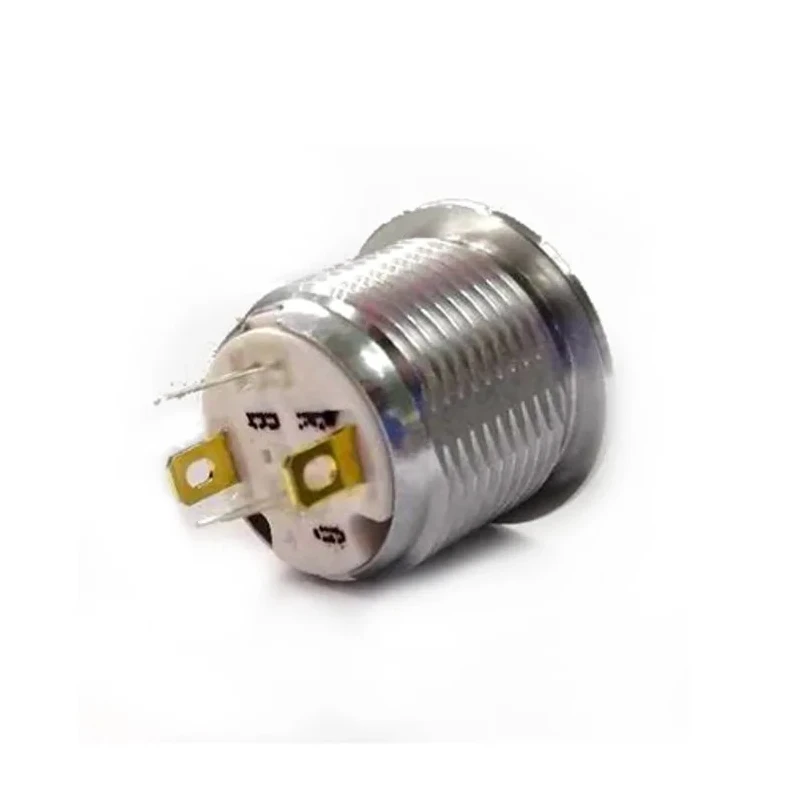

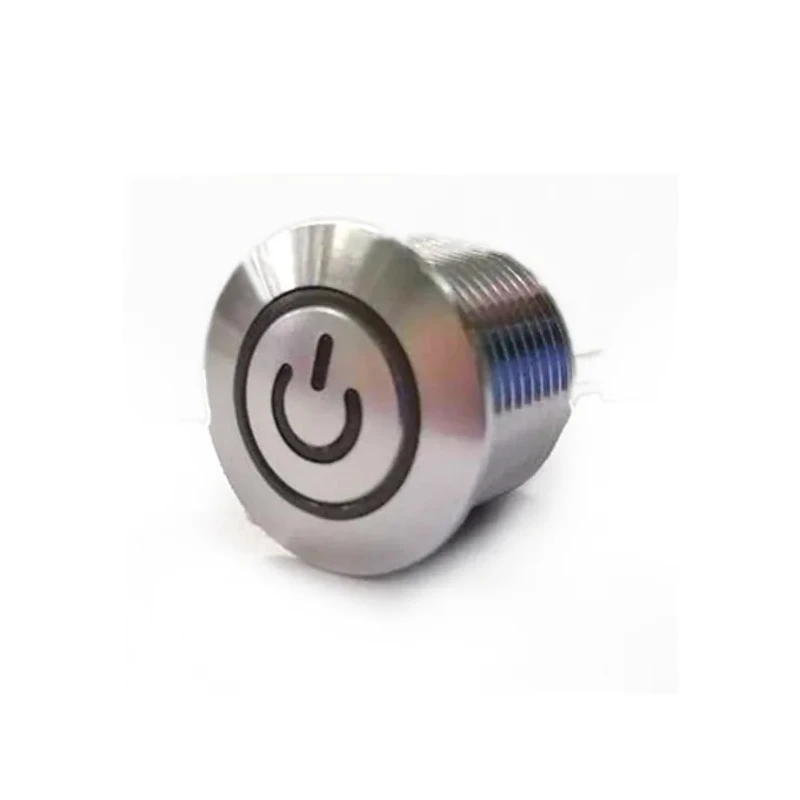

RS PRO Illuminated Push Button Switch Momentary Panel Mount 16 mm Cutout SPST RGB LED IP67 36 V dc 175-9159

RS PRO 175-9159 Illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting with a 16 mm cutout size. This switch features RGB LED illumination in blue, green, and red colors, providing clear visual indication in various industrial and electrical applications.

It has a single-pole single-throw (SPST) contact configuration and supports a contact DC voltage of 36 V and a contact current of 2A, ensuring reliable switching performance. The switch is IP67 rated, offering excellent protection against dust and water ingress, making it ideal for harsh or outdoor environments.

Constructed to UL 94 V-0 and UL 94 V-2 standards, the switch provides enhanced flame retardancy and safety. The actuator style is round and designed for comfortable and effective user interaction, mounted securely on the panel with solder terminals.

The operating temperature range from -20°C to 70°C makes it suitable for a wide variety of industrial control, medical equipment, security monitoring, vehicle peripherals, audio-visual, and energy storage applications.

Momentary switch operation for precise control. Illuminated with RGB LED available in blue, green, and red colors. Panel cutout size of 16 mm for easy installation. IP67 rated for dust-tight and water ingress protection.

Supports contact DC voltage up to 36 V dc and 2A current rating. Round actuator style ensuring ergonomic operation. Suitable for panel mounting with solder terminal type. Operating temperature range from -20°C to 70°C for versatile use.

Meets UL 94 V-0 and UL 94 V-2 flame retardant standards.

This push button switch is suitable for use in industrial control instruments, medical equipment, security monitoring equipment, vehicle peripherals, audio-visual devices, and energy storage equipment.
