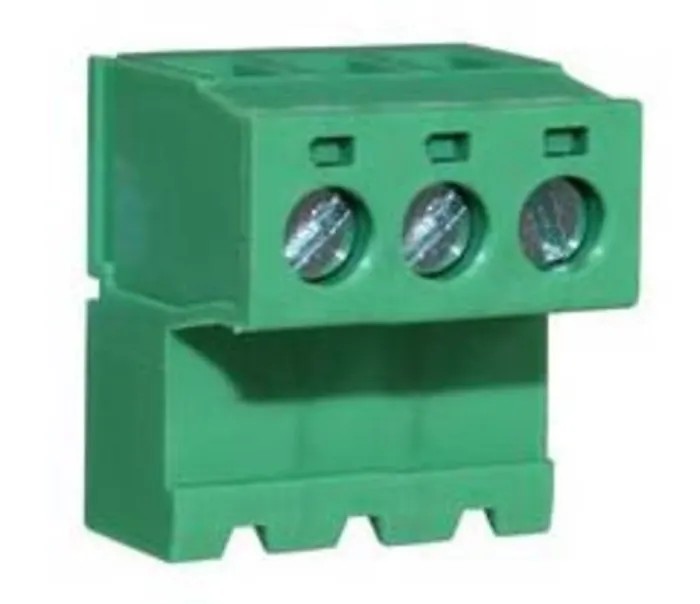

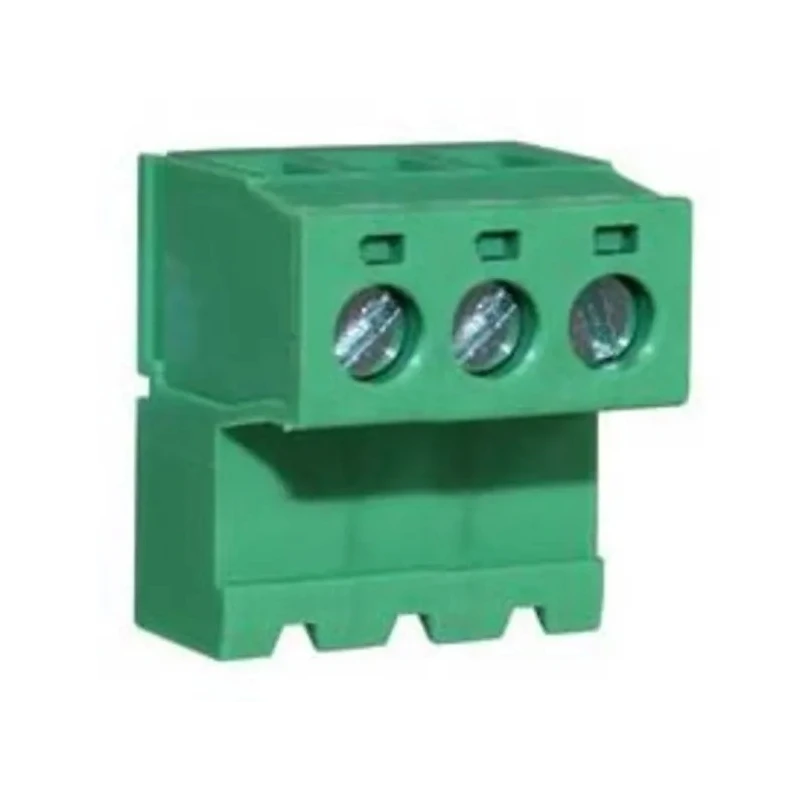

RS PRO Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, 300 V, 15 A, Polyamide Housing 146-8253

RS PRO 146-8253 pluggable terminal block is a high-quality electrical connector designed for industrial and electronic applications requiring secure and efficient wire connections. Featuring 3 contacts laid out in a single row with a 5.08 mm pitch, this terminal block supports up to 15 amps of current at a voltage of 300 volts. The housing is constructed from flame-retardant polyamide (PA 661) material, ensuring robust insulation and compliance with cULus safety standards.

This terminal block adopts a right angle orientation, making it ideal for compact PCB layouts where space efficiency is critical. The screw connection wire method ensures a reliable mechanical and electrical contact that accommodates wire sizes from 28 AWG to 14 AWG, providing versatility across wiring needs. The green housing color aids in quick visual identification, while the polarized moldings and dual low pins enhance mechanical stability during operation.

Designed and manufactured in China, this component offers a durable and safe connection solution for electronic circuit designs, control panels, and industrial automation systems. It is compatible with additional RS PRO series headers such as CTBP9308 and 358, and is also available with a 5 mm pitch variant for flexible design options.

The terminal block meets rigorous quality and safety cULus regulatory approvals. Its polyamide housing material conforms to UL94-V0 flame retardant rating. Compact size with dimensions of 16.8 mm length, 15.2 mm width, and 19.3 mm depth.

Applicable for use in electronics, electrical power connectors, and industrial automation.

This RS PRO terminal block combines mechanical durability with electrical reliability, making it suitable for both commercial and industrial PCB terminal connectivity requirements. Explore the range of RS PRO connectors and Pluggable Terminal Blocks to find compatible components for your projects and applications.
