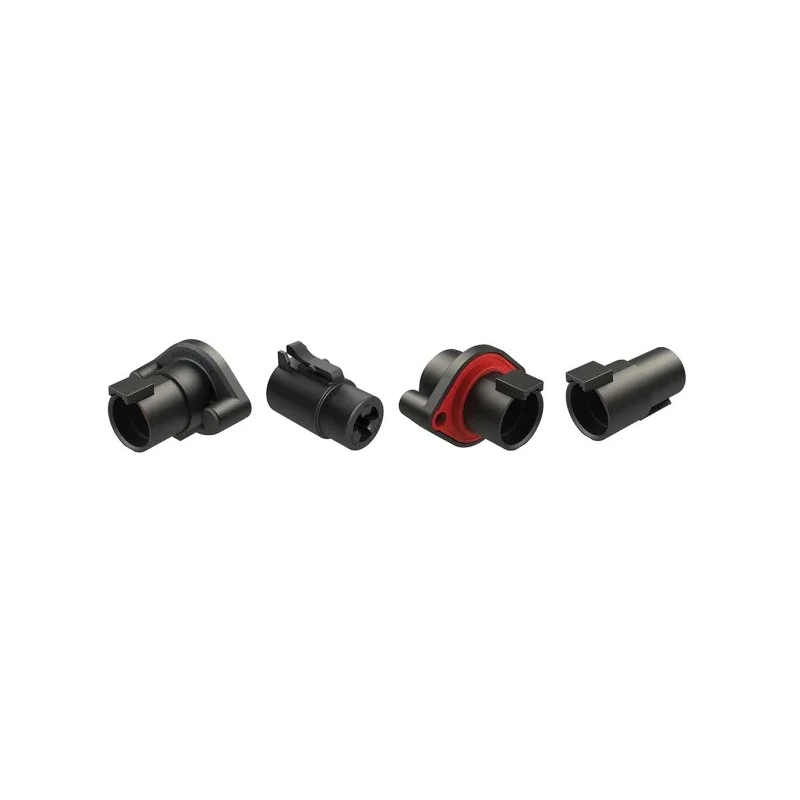

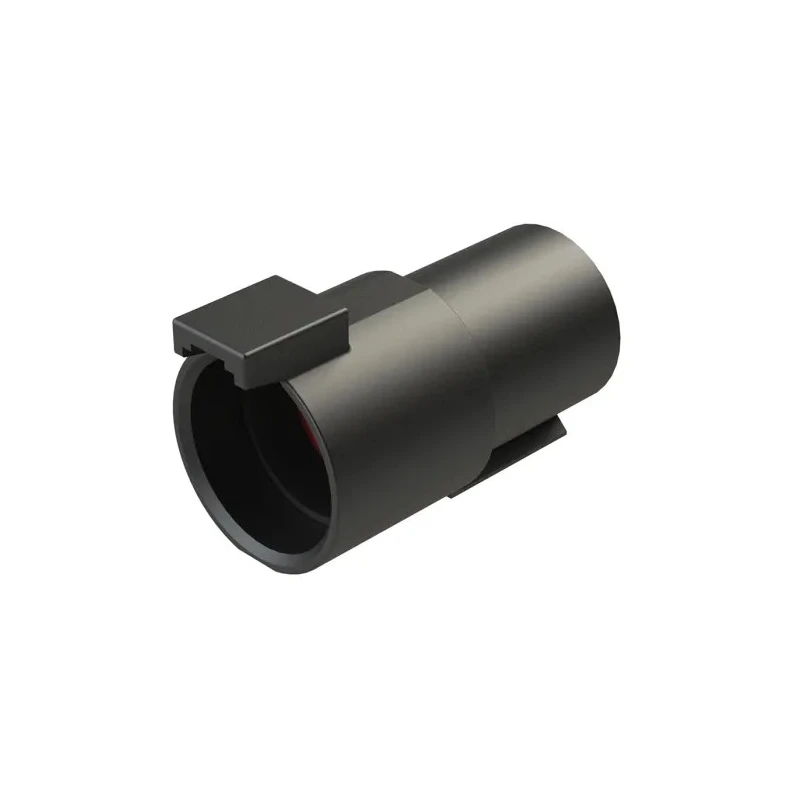

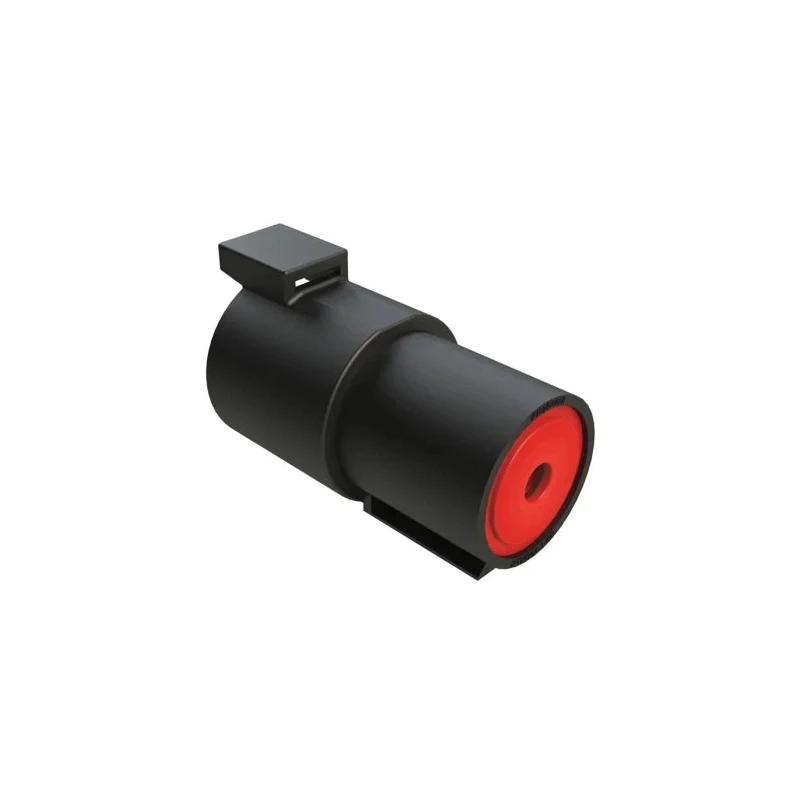

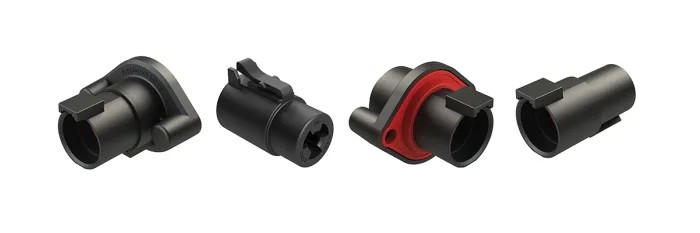

Amphenol Industrial AT Series Automotive Connector Male Black Cable 1 Way Crimp Termination 100A 125°C ATHD04-1-4P

Amphenol Industrial ATHD04-1-4P is a high-quality automotive connector designed for reliable and durable electrical connections in harsh environments. This male connector features a 1-way crimp termination and a robust black thermoplastic housing that offers excellent environmental sealing, rated at IP69K and IP67. The integral latch mechanism prevents inadvertent disconnects while providing audible and tactile confirmation of secure connections.

Constructed with a precision-machined nickel contact sized #4 for wire size 6AWG, it supports currents up to 100A and voltages up to 1000V, ensuring stable power transmission in demanding applications. The connector operates efficiently within a wide temperature range from -55°C to 125°C, making it suitable for heavy-duty, automotive, marine, military, and industrial applications.

Its circular housing supports cable mounting and can be installed inline or as a sealed flange mount, providing versatility for various installation needs. The connector is intermateable with industry standard AT series connectors, adding to its adaptability.

This connector features a black thermoplastic housing designed for cable mounting. It supports a high current rating of 100A and operates at voltages up to 1000V. The connector is environmentally sealed with an IP69K and IP67 ingress protection rating.

It includes an integral latch to prevent accidental disconnection and tactile feedback with an audible click. The contact is nickel plated and machined for durability and optimal performance. Operating temperature ranges from -55°C to 125°C, suitable for harsh environments.

Dimensions are 29.8mm height, 26.5mm width, 52.5mm depth, and 22.3mm diameter. The connector is part of the AT series and compatible with industry standard connectors. Ideal for automotive, heavy duty transportation, marine, military, agricultural, and alternative energy sectors.

This Automotive Connector is designed for use in a range of industrial and commercial sectors, particularly where reliable power and signal transmission is critical under challenging environmental conditions. Its robust design and quality materials ensure longevity and safety in field splices, terminals, and wire-to-wire connections.
