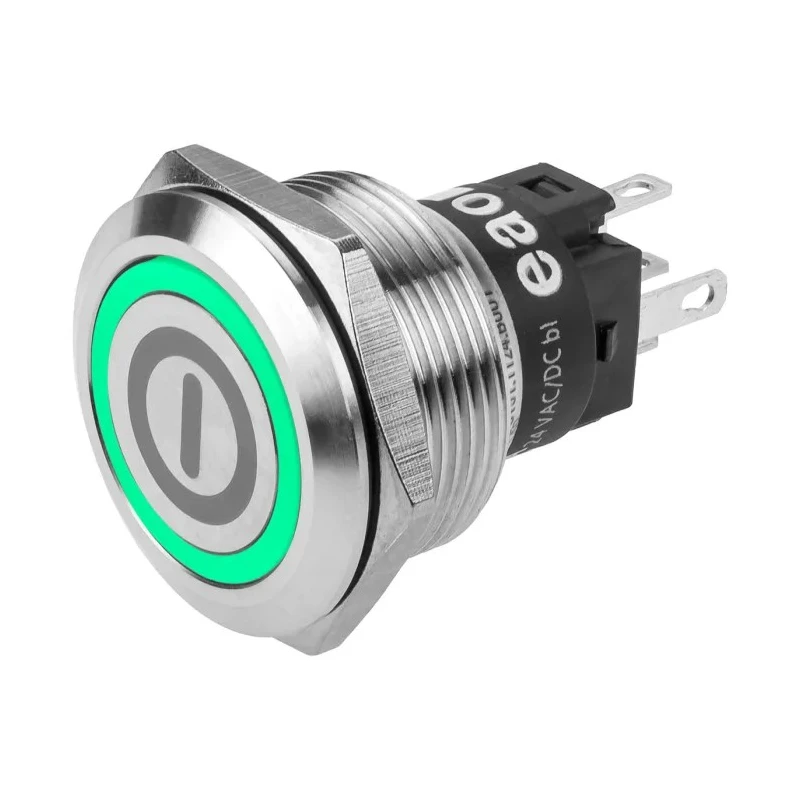

EAO Illuminated Push Button Switch, Latching, Panel Mount, 22.3 mm Cutout, SPDT, Green LED, IP65, IP67 82-6151.2133.B001

EAO 82-6151.2133.B001 Illuminated Push Button Switch is a high-quality, latching push button designed for panel mounting with a precise 22.3 mm cutout. Featuring a Single Pole Double Throw (SPDT) contact configuration and a green LED illumination, this switch offers clear visual feedback and reliable control. It is engineered for industrial, commercial, and public applications requiring robust performance and durability.

The switch supports both alternating current and direct current voltages up to 240 V, with a contact current rating of 3 amperes, making it suitable for a wide range of electrical equipment. The IP65 and IP67 ingress protection ratings ensure resistance against dust and water ingress, making it ideal for harsh environments, including exposed public areas such as ticketing machines and vending machines.

Constructed with a vandal-resistant impact-resistant design and round actuator style, the switch also features gold-plated silver contacts that provide excellent conductivity at low voltages and currents. This ensures both longevity and reliable tactile feedback during operation with a rated service life exceeding one million cycles.

Operating temperature ranges from -30 °C to 70 °C, the switch is suitable for various industrial machinery, elevators and people movers, access control and security systems, audio and video equipment, medical devices, and corrosion-resistant versions available for food industry applications on request. The stainless steel anodised aluminum or brass-colored finish enhances aesthetic appeal and robustness.

Latching operation with illuminated green LED indicator for clear status indication. Panel mount design with 22.3 mm cutout for easy installation. SPDT contact configuration rated for 3A at 240V AC/DC. Robust IP65 and IP67 protection against dust and water ingress.

Vandal-resistant and impact resistant construction. Gold-plated silver contacts for reliable low voltage and current performance. Operates reliably between -30°C and 70°C temperatures. Long operational life exceeding one million cycles.

This switch is ideal for industrial automation, machinery control panels, building management systems, lifting and moving equipment, medical and audio-video equipment, and food industry machinery. Its blend of durability, safety, and aesthetic design makes it a versatile solution in electrical control systems.

Explore the full range of high-quality Push Button Switches from EAO, designed to meet diverse industrial needs with reliability and precision.
