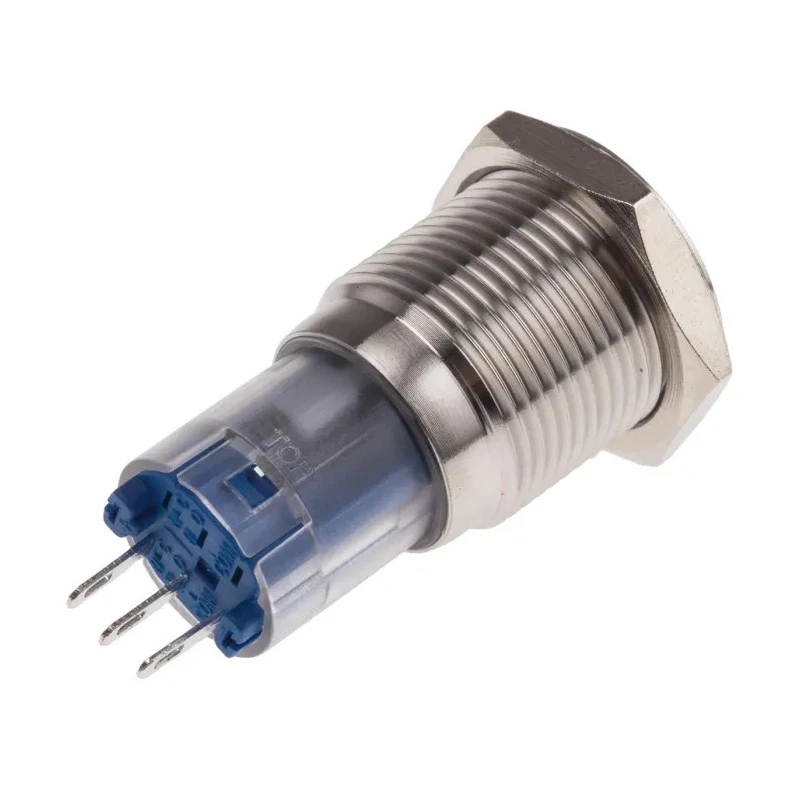

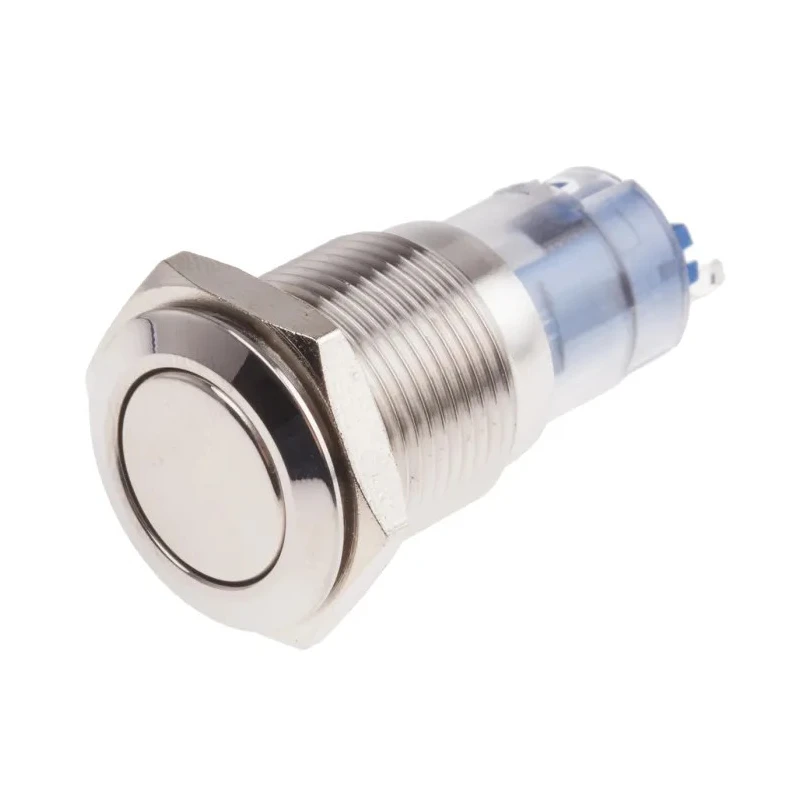

RS PRO Push Button Switch Momentary Panel Mount 16 mm Cutout SPDT White LED IP65 IP67 250 V AC 811-8382
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 811-8382 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
Key Features
- Features a silver flat actuator for reliable operation.
- Rated for 250 V AC voltage and 3A switch contact current.
- Equipped with a white LED for illumination and IP65, IP67 front panel protection against water and dust ingress.
- Constructed from stainless steel with silver plated copper alloy contacts and brass terminals.
- Suitable for industrial, automation, and public kiosk applications requiring vandal resistance.
- Operates down to a minimum temperature of -20°C ensuring performance in harsh environments.
- Mounts easily on panels with 16 mm cutout dimensions using solder terminals.
- Tested for a long operational life of 50,000 cycles with a maximum operating force of 4N.
Product Description
RS PRO 811-8382 push button switch is a high-quality momentary switch designed for panel mounting with a 16 mm cutout size. It operates on 250 V AC and utilizes a single-pole double-throw (SPDT) contact configuration, offering versatility in electrical circuit control.
This switch features a flat silver actuator constructed from stainless steel, providing robust physical resistance against vandalism. The device includes a white LED for illumination purposes, ensuring visibility in low-light conditions.
The terminal type is solder, facilitating secure wiring connections. The front panel offers IP65 and IP67 protection ratings for water and dust resistance, making it suitable for outdoor and industrial environments.
Designed to withstand harsh usage, it has an operating life rated for 50,000 cycles and a maximum operating force of 4 Newtons. It functions reliably at temperatures as low as -20°C, providing stable performance in cold environments.
With silver plated copper alloy contacts and brass terminals, this switch ensures excellent electrical conductivity and durability. Its SPDT switch configuration allows control of two circuits within a single device.
This product is ideal for applications in industrial automation, electrical control panels, public kiosks, and anywhere robust push button controls are needed. The Taiwan, Province of China origin confirms manufacturing quality standards.
Silver flat actuator for reliable mechanical operation. Rated for 250 V AC voltage and 3A current carrying capacity. Illuminated with white LED for clear visibility. IP65 and IP67 rated for water and dust ingress protection.
50,000 cycle operational lifespan with 4N maximum operating force. Solder terminal type for secure electrical connections. Suitable for harsh industrial and public usage environments. Constructed with stainless steel, copper alloy, and brass for durability.
Find more reliable and high-quality Push Button Switches like RS PRO 811-8382 in our comprehensive Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This push button switch is rated for 250 V AC and has a switch contact current of 3A.
It requires a panel cutout size of 16 mm for installation.
It features a single-pole double-throw (SPDT) contact configuration, allowing control of two circuits.
This model has IP65 and IP67 ratings, providing protection against water and dust ingress.
The switch is constructed from stainless steel, with silver plated copper alloy contacts and brass terminals.
It operates reliably at temperatures as low as -20°C.
The operational lifespan is rated for 50,000 cycles.
It uses solder terminals for secure electrical connections.
The actuator style is flat and it is silver in color.
It is suitable for industrial automation, electrical control panels, and public kiosks requiring robust controls.
The maximum operating force is 4 Newtons.
This switch complies with RoHS standards.
