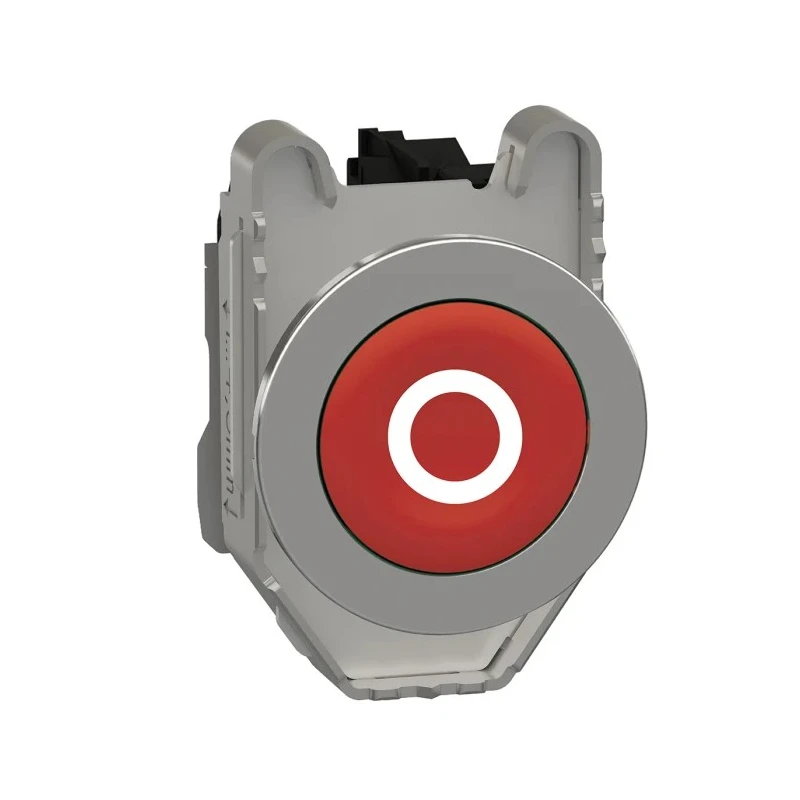

Schneider Electric Harmony XB4 Series 30 mm Panel Mount Push Button Switch, Spring Return, SPST, Red LED, IP66 XB4FA4322

Schneider Electric XB4FA4322 Harmony XB4 Series Push Button Switch features a robust 30 mm panel mount design with spring return actuation. It incorporates a red actuator with integrated red LED, providing visual feedback under intense industrial conditions. Rated for IP66, IP67, IP69, and IP69K, it is well suited for harsh environments including outdoor, mining, and food processing applications.

This push button switch accommodates a single-pole single-throw (SPST) contact configuration with a current rating of 6A at 600V AC/DC, suitable for controlling diverse machinery and control panels. Its operating temperature range from -40°C to 70°C ensures consistent functionality across extreme climates.

The product is panel mounted with a 30 mm cutout, secured via screw terminals that provide reliable connections. The round actuator style and flush mounting option enhance panel aesthetics while maintaining ergonomic ease of use. This switch conforms to multiple international standards such as CSA C22.2, EN/IEC 60947 series, UL 508, and JIS C8201, guaranteeing durable performance and safety.

Designed to withstand high vibration environments, the XB4FA4322 allows customization with a wide range of accessories and contact blocks for specific needs, including low current and high power switching. Its modular design supports fast installation and flexibility to adapt to various control applications.

Common applications include industrial machinery, packaging equipment, material handling systems, pumping stations, and energy distribution panels. It is also ideal for infrastructure projects, commercial buildings, airports, and other public facilities requiring reliable control interfaces.

The actuator is red with a round style and includes a red LED indicator. This switch is designed for harsh environments with IP66, IP67, IP69, and IP69K protection ratings. It supports a contact rating of 6A and operates on 600V AC/DC voltage.

The operating temperature range spans from -40°C to 70°C ensuring reliable performance. The switch is panel mount type with a 30 mm cutout and screw terminal connection. It complies with major industry standards including CSA, IEC, UL, and JIS.

The design offers high vibration resistance and is repairable by the end user. Versatile enough for industrial, building, and infrastructure applications including food, automotive, and water treatment sectors.

Discover a robust, flexible solution for your control panels with the Schneider Electric Harmony XB4FA4322 push button switch. Explore EnvMart’s extensive selection of Push Button Switches for industrial and commercial applications.
