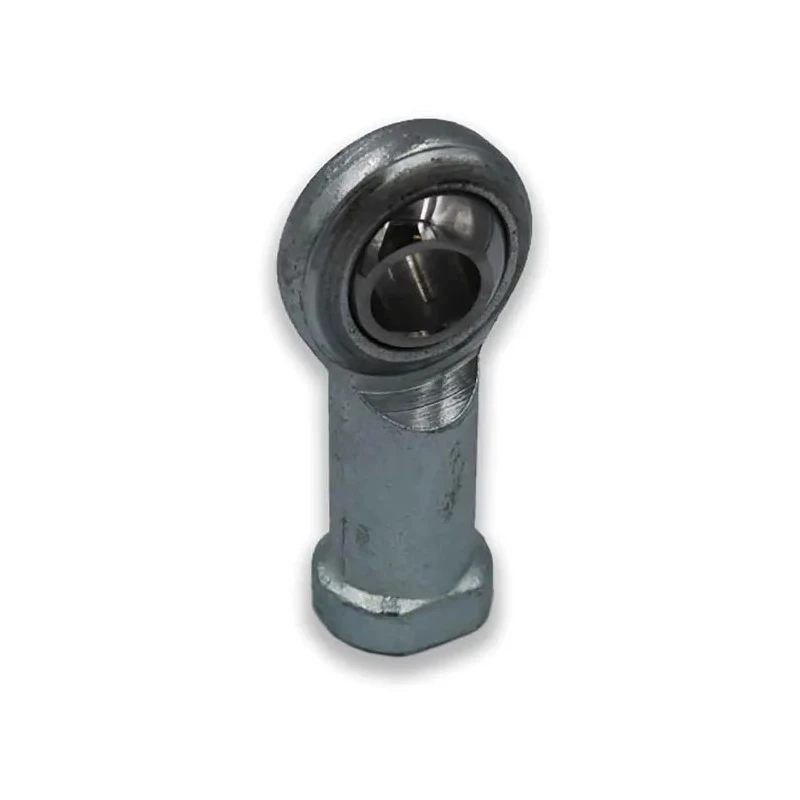

LDK M6 Female Carbon Steel Rod End, 6mm Bore Metric with Left Hand Thread PHS 6ECL

LDK PHS 6ECL M6 Female Carbon Steel Rod End is a high-quality rotary bearing designed for mechanical and industrial applications. This rod end features a female M6 connection thread with a 6mm bore diameter, using a left hand metric thread standard for precise fitment.

The ball component is crafted from AISI 52100 bearing steel, heat treated to a hardness rating of HRC 58-64. The ball is precision ground and polished, ensuring smooth rotational performance and durability in demanding industrial environments.

The body is made from carbon steel with a clear zinc plating that offers excellent resistance to corrosion. The race utilizes PTFE composite materials, while the sliding contact surfaces combine steel and PTFE composite to reduce friction and wear during operation.

This rod end has a dynamic load rating of 4.7 kN and a static load rating of 7.8 kN, suitable for moderate loading conditions in mechanical assemblies. Its compact dimensions include an 18mm outside diameter and an overall width of 39mm.

Applications span across mechanical, fluid power, manufacturing, and industrial machinery sectors where reliable rotary bearing components are essential. The design and material choices ensure extended service life and precision performance.

Constructed from carbon steel with corrosion-resistant zinc plating. Female M6 x 1.0 left hand thread connection for secure assembly. Ball made of heat treated AISI 52100 bearing steel. Dynamic load rating of 4.7 kN and static load rating of 7.8 kN.

PTFE composite race and steel/PTFE composite sliding surfaces reduce friction. Compact size with 18mm outside diameter and 39mm overall width. Precision ground and polished ball enhances reliability. Ideal for use in mechanical, fluid power, and industrial rotary bearing applications.

This LDK Rod End bearing combines robust construction with precision engineering, making it suitable for demanding industrial and mechanical uses. Explore more rotary bearing products and mechanical tooling solutions at EnvMart.
