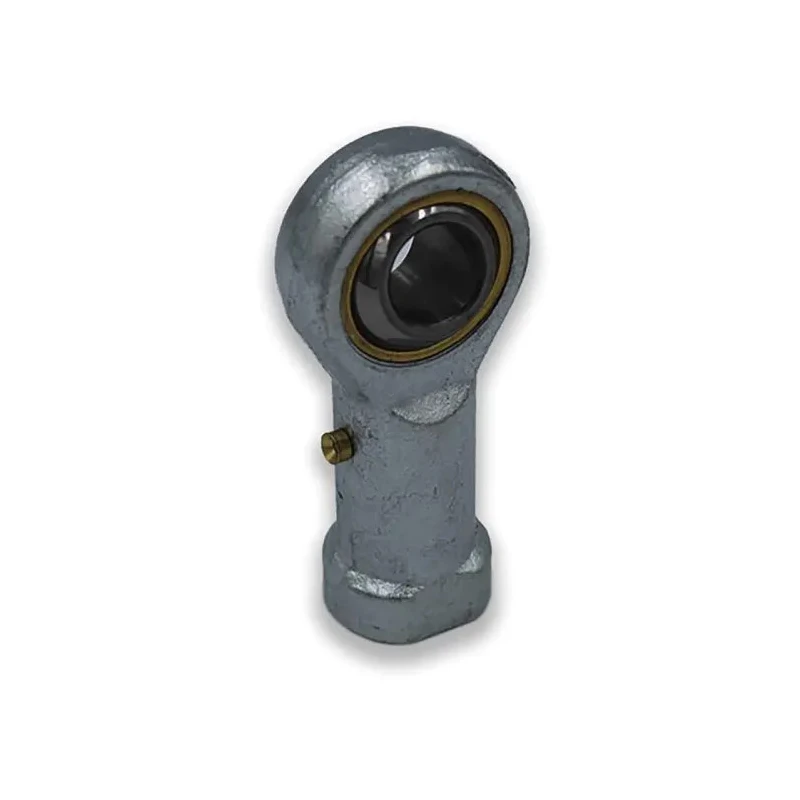

LDK M8 Female Carbon Steel Rod End, 8mm Bore Metric PHS 8

LDK PHS 8 M8 Female Carbon Steel Rod End is designed for industrial and mechanical applications requiring strong and precise rotary motion connections. Made primarily of carbon steel with clear zinc plating, this rod end delivers excellent corrosion resistance and durability in challenging environments.

The internal ball, constructed of AISI 52100 bearing steel, has undergone heat treatment to achieve an HRC hardness of 58-64, ensuring long service life and high precision during operation. The body includes a brass race and steel/brass sliding contact surfaces to minimize friction and wear, suitable for rotary bearings and housing unit assemblies.

This rod end features a female connector with an M8 metric threaded size, suitable for a wide range of industrial mechanical assemblies. It offers a dynamic load rating of 5.4 kN and static load rating of 12.6 kN, accommodating rigorous load conditions common in fluid power, bearing systems, and mechanical tools in manufacturing, construction, and agricultural machinery.

With an outside diameter of 22 mm and an overall width of 47 mm, the component fits compact installations requiring precise and reliable motion-bearing connections. Its manufacture in China follows industrial quality standards but without specific certifications or approvals indicated.

Constructed from carbon steel with clear zinc plating to resist corrosion. AISI 52100 heat-treated bearing steel ball ensures precision and durability. Female M8 metric thread connection for standard compatibility. Dynamic load rating of 5.4 kN and static load rating of 12.6 kN for heavy-duty performance.

Brass race and steel/brass sliding contact surfaces reduce friction. Compact dimensions of 22 mm outside diameter and 47 mm overall width. Suitable for use in industrial, mechanical, manufacturing, and agricultural equipment.

This LDK Rod End is ideal for fluid power and rotary bearing applications where reliability and precision are essential. It complements mechanical assemblies requiring metric threaded female connectors and high load-bearing capacity. Explore further rotary bearings and housing solutions in the Industrial Tools & Equipment category at EnvMart.
